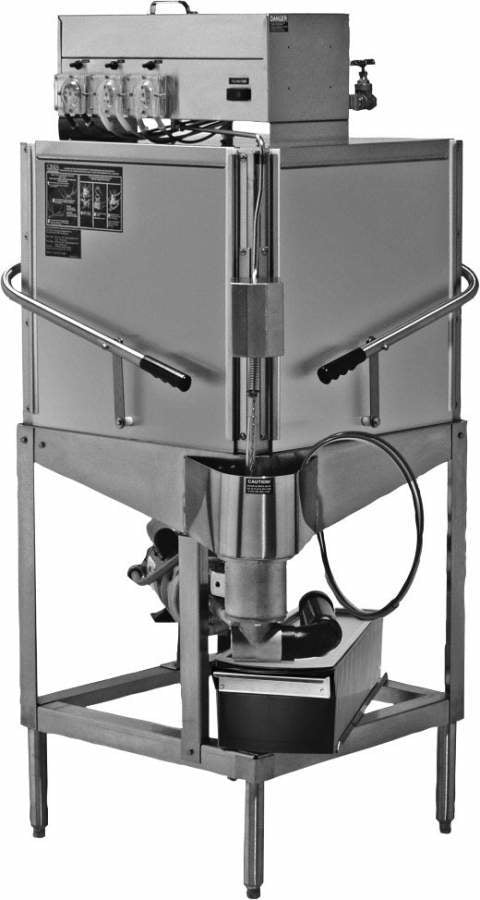

CMA C Low-Temp Corner Door-Type Dishwasher, 40 Racks/Hr

CMA C Corner Low-Temp Door Machine

Same proven wash system as CMA's straight model, but the C is built for corner installations: racks enter from one side and exit at a right angle. Chemical sanitizing means no heaters, no steam and a simple 115V hookup.

Where it fits

Ideal when your clean and soiled tables meet in an L, common in compact restaurant and bar dish areas.

Key specifications

• Model: C
• Sanitizing: Low Temperature Chemical Sanitizing
• Configuration: Single Rack Corner
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 25 3/4" x 25 3/4" x 57"
• Weight: 269 lb
• Electrical: 115V, Single Phase, 16 A
• 1.7 gal water per rack
• 90-second total cycle
• 17" maximum dish clearance
• Certifications: NSF and UL listed
• Warranty: 1 year parts and labor

Installation notes

Feed it 140°F water. Optional add-ons include CMA's Temp-Sure booster and a second detergent bowl.
