CMA 180-VL Ventless High-Temp Door Dishwasher, 40 Racks/Hr

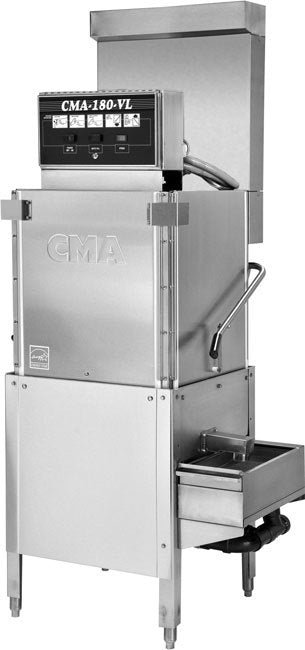

CMA-180-VL Ventless Heat-Recovery Door Machine

The CMA-180-VL captures the steam from each cycle and uses it to pre-heat the cold water feeding its 12kW booster. The result is a high-temperature door machine that can go where a hood cannot, with lower energy cost per rack.

Where it fits

Perfect for kitchens in leased spaces, hotel floors or retrofits where installing an exhaust hood is impractical.

Key specifications

• Model: CMA-180-VL
• Sanitizing: High Temperature
• Configuration: Ventless, Single Rack Corner or Straight-Thru
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 25 1/2" x 29" x 85 5/16"
• Weight: 400 lb
• Electrical: 208/240V, Single or Three Phase, 78 A (208V 1-ph) / 49 (208V 3-ph)
• Heat recovery system
• 12kW booster and 6kW wash tank heater
• 0.89 gal water per rack (max)
• 17-1/2" maximum dish clearance
• Certifications: NSF and UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Each 90-second cycle includes 30 seconds of steam evacuation. Requires 208/240V (78A single phase or 49A three phase at 208V) plus hot and cold water lines. Check local code on ventless equipment.
