CMA 180-VL TALL Ventless High-Temp Tall Door Dishwasher, 40 Racks/Hr

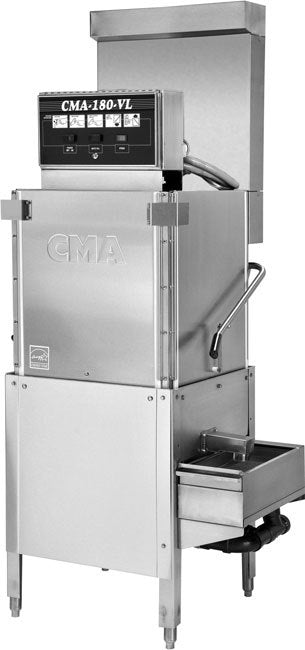

CMA-180-VL TALL Ventless Tall Door Machine

This is the tall member of CMA's ventless family. A 28-inch clearance takes sheet pans and stock pots, while the heat-recovery condenser pulls steam out of the chamber and recycles its heat into the incoming cold water.

Where it fits

Made for operations that need to wash oversized ware with hot water but have no exhaust hood over the dish area.

Key specifications

• Model: CMA-180-VL TALL
• Sanitizing: High Temperature
• Configuration: Ventless, Single Rack, Tall
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 25 1/2" x 29" x 95 5/16"
• Electrical: 208/240V, Single or Three Phase, 78 A (208V 1-ph) / 49 (208V 3-ph)
• 28" maximum ware clearance
• Heat recovery system
• 12kW booster and 6kW wash tank heater
• 0.89 gal water per rack (max)
• Certifications: NSF and UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Runs a 90-second cycle with steam evacuation. Electrical: 208/240V, 78A single phase or 49A three phase at 208V. Confirm local acceptance of ventless dishwashers.
