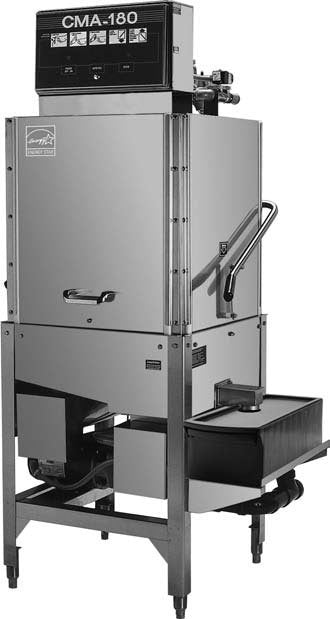

CMA 180S High-Temp Straight Door Dishwasher, 60 Racks/Hr

CMA-180S High-Temperature Straight Door Machine

The CMA-180S sanitizes with a 180°F final rinse and finishes a cycle in 58 seconds, good for 60 racks an hour. A chemical-resistant 7kW tank heater holds wash temperature, and the machine sips just 0.82 gallons per rack.

Where it fits

Built for restaurants and hotels that prefer hot-water sanitizing and need faster turns than a low-temp door machine.

Key specifications

• Model: CMA-180S
• Sanitizing: High Temperature
• Configuration: Single Rack Straight-Thru
• Capacity: up to 60 racks per hour
• Dimensions (W x D x H): 25 1/2" x 25" x 60"
• Weight: 338 lb
• Electrical: 208/240V, Single or Three Phase, 36 A (208V 1-ph, without booster)
• 58-second total cycle
• 0.82 gal water per rack
• 17-1/2" maximum dish clearance
• 7kW wash tank heater; optional 12kW booster
• Certifications: NSF and UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Order with the built-in 12kW booster (model 180-SB) if you do not have 180°F water at the machine. Without the booster it draws 36A at 208V single phase; with it, plan for 78A. Exhaust ventilation is typically required.
