CMA 180TS Tall Straight High-Temp Door Dishwasher, 60 Racks/Hr

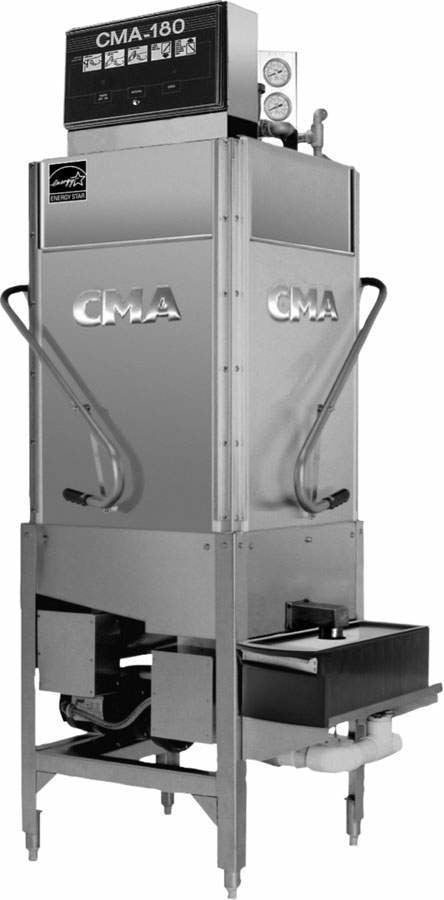

CMA-180TS Tall Straight-Through High-Temp Machine

The CMA-180TS is the tall, straight-through version of CMA's 180 series. A split door opens to 27 inches, so sheet pans, mixing bowls and stock pots go through the same 58-second, heat-sanitizing cycle as dinner plates.

Where it fits

Ideal for bakeries, hotels and scratch kitchens that want one hot-water machine for both dishes and oversized ware on a straight table run.

Key specifications

• Model: CMA-180TS
• Sanitizing: High Temperature
• Configuration: Single Rack Straight-Thru, Tall
• Capacity: up to 60 racks per hour
• Dimensions (W x D x H): 25 1/2" x 25" x 70"
• Weight: 353 lb
• Electrical: 208/240V, Single or Three Phase, 36 A (208V 1-ph, without booster)
• 27" sheet pan door clearance
• 58-second total cycle
• 0.82 gal water per rack
• 7kW wash tank heater; optional 12kW booster
• Certifications: NSF and UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Choose the 180-TSB if you need the built-in 12kW booster. Without booster: 36A at 208V single phase; with booster: 78A. Plan for a hood.
