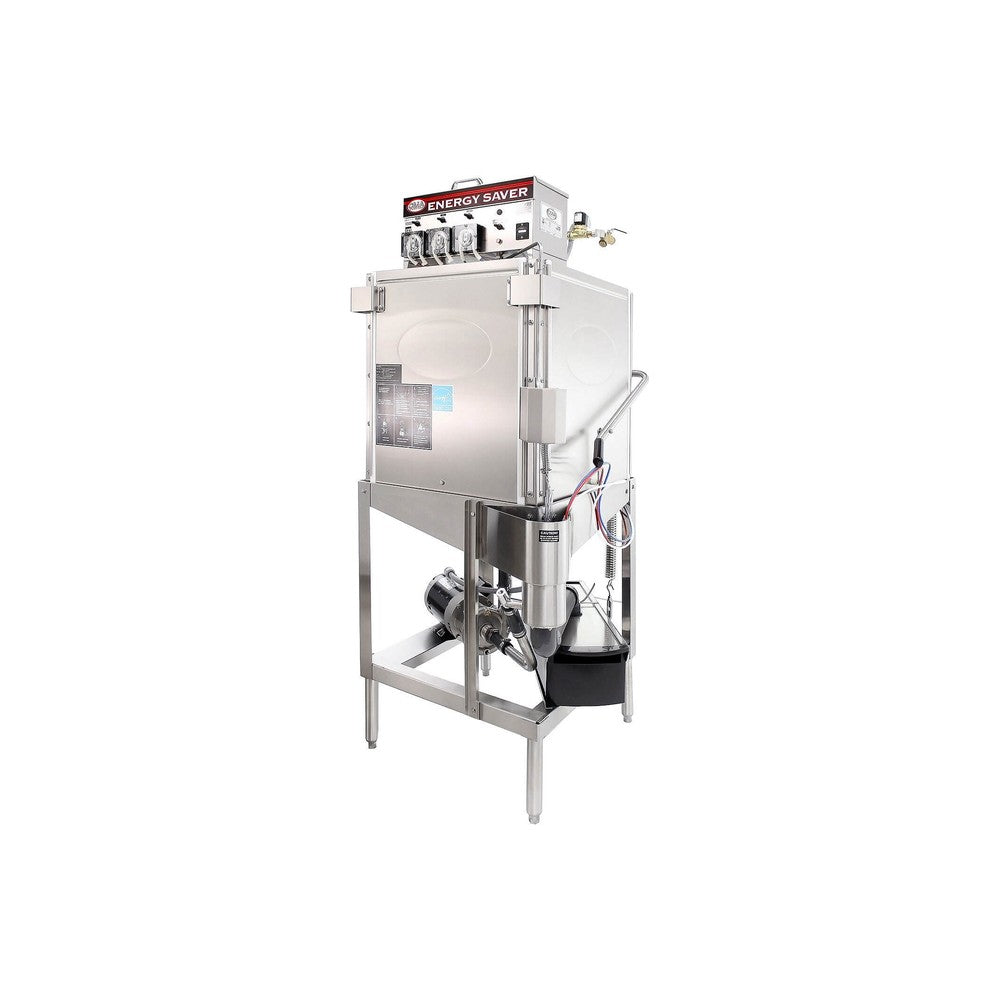

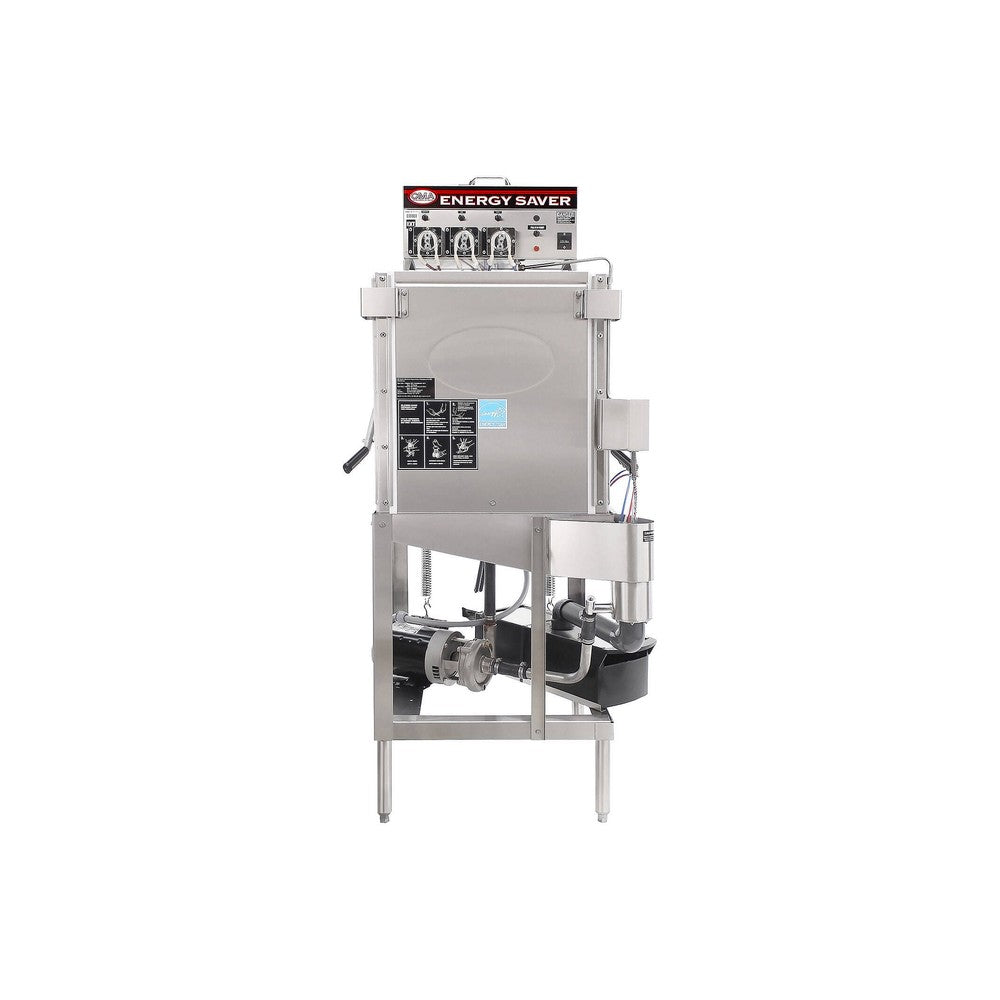

CMA E-3D Ext Low-Temp 3-Door Dishwasher, 40 Racks/Hr

The E-3D Ext is CMA's Energy Mizer low-temperature three-door machine. Doors open on three sides for straight-through or corner use, and it runs on a regular 115V circuit with chemical sanitizing.

Best for:

• Small restaurants, bars and cafes
• Kitchens with only 115V available
• Replacing an older low-temp door machine

Key specifications:

• Model: E-3D Ext
• Sanitizing: Low temperature chemical sanitizing
• Capacity: up to 40 racks per hour
• Water use: 1.01 gal per rack
• Electrical: 115V, single phase
• Overall size: 25-3/4" W x 25-3/4" D x 60" H
• Shipping weight: 218 lb
• Listings: UL, ETL, Energy Star

Features:

• Three doors for straight-through or corner loading
• Energy Star qualified
• 40 racks (about 160 covers) per hour
• About 1.01 gal of water per cycle
• Top-mounted controls with built-in chemical pumps and deliming
• Integrated scrap tray keeps soil out of the drain
• Air-gap fill system
• Upper and lower stainless wash arms
• Automatic start/stop

Installation notes:

• 115V single phase, 16 A
• Hot water supply per the spec sheet for chemical sanitizing
• Plan for detergent, rinse aid and sanitizer containers

Shipping:

• Free freight shipping
• Ships by LTL freight truck on a pallet, about 218 lb
• Liftgate delivery available at checkout
• Residential delivery adds a $90 fee

Warranty:

• 1 year parts and labor warranty from CMA
