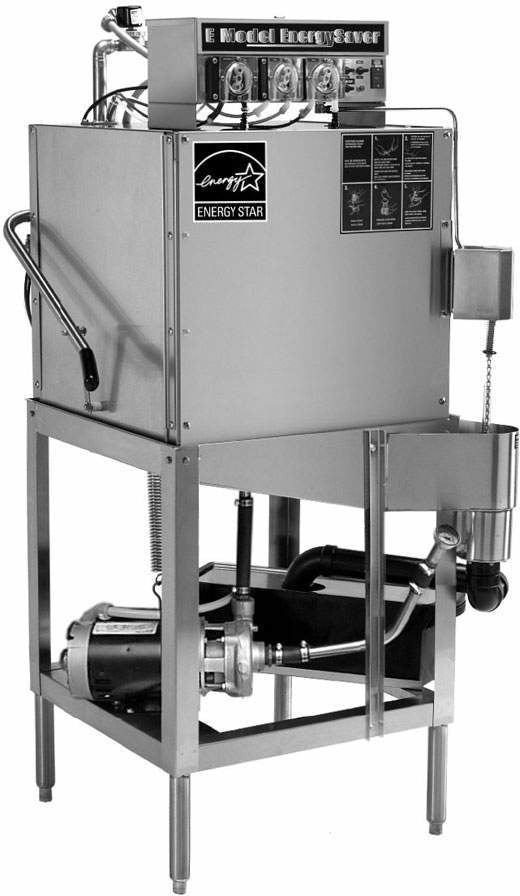

CMA E-AH Ext Tall Low-Temp Straight Door Dishwasher, 40 Racks/Hr

CMA E-AH Ext Energy-Saving Straight Machine

CMA's E series trims water use to roughly one gallon per rack, and the E-AH Ext adds a taller cabinet with a 20-1/2-inch opening. It is a straight-through design that sanitizes chemically, so there are no heaters drawing power.

Where it fits

A smart option for operators who want the tall opening of a scullery-style door without stepping up to a dedicated pot washer.

Key specifications

• Model: E-AH Ext
• Sanitizing: Low Temperature Chemical Sanitizing
• Configuration: Single Rack Straight-Thru, Extended Height
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 25 3/4" x 25 3/4" x 60"
• Weight: 262 lb
• Electrical: 115V, Single Phase, 16 A
• 1.01 gal water per rack
• 20-1/2" maximum dish clearance
• Certifications: ETL and UL listed
• Warranty: 1 year parts and labor

Installation notes

Needs 120°F minimum (140°F recommended) supply water and a 115V, 16-amp circuit. Replaces the earlier E-AH listing.
