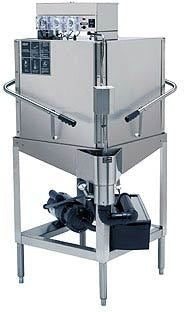

CMA E-C Ext Tall Low-Temp Corner Door Dishwasher, 40 Racks/Hr

CMA E-C Ext Energy-Saving Corner Machine

The E-C Ext is the corner-configured member of CMA's energy-saving E family. Racks turn the corner through a tall 20-1/2-inch opening, and each cycle uses only about a gallon of water.

Where it fits

Fits L-shaped dish areas in restaurants, schools and clubs that want a taller door than a standard corner machine.

Key specifications

• Model: E-C Ext
• Sanitizing: Low Temperature Chemical Sanitizing
• Configuration: Single Rack Corner, Extended Height
• Capacity: up to 40 racks per hour
• Dimensions (W x D x H): 25 3/4" x 25 3/4" x 60"
• Weight: 262 lb
• Electrical: 115V, Single Phase, 16 A
• 1.01 gal water per rack
• 20-1/2" maximum dish clearance
• Certifications: ETL and UL listed
• Warranty: 1 year parts and labor

Installation notes

Supply 140°F water (120°F minimum). Plugs into 115V with a 16-amp draw.
