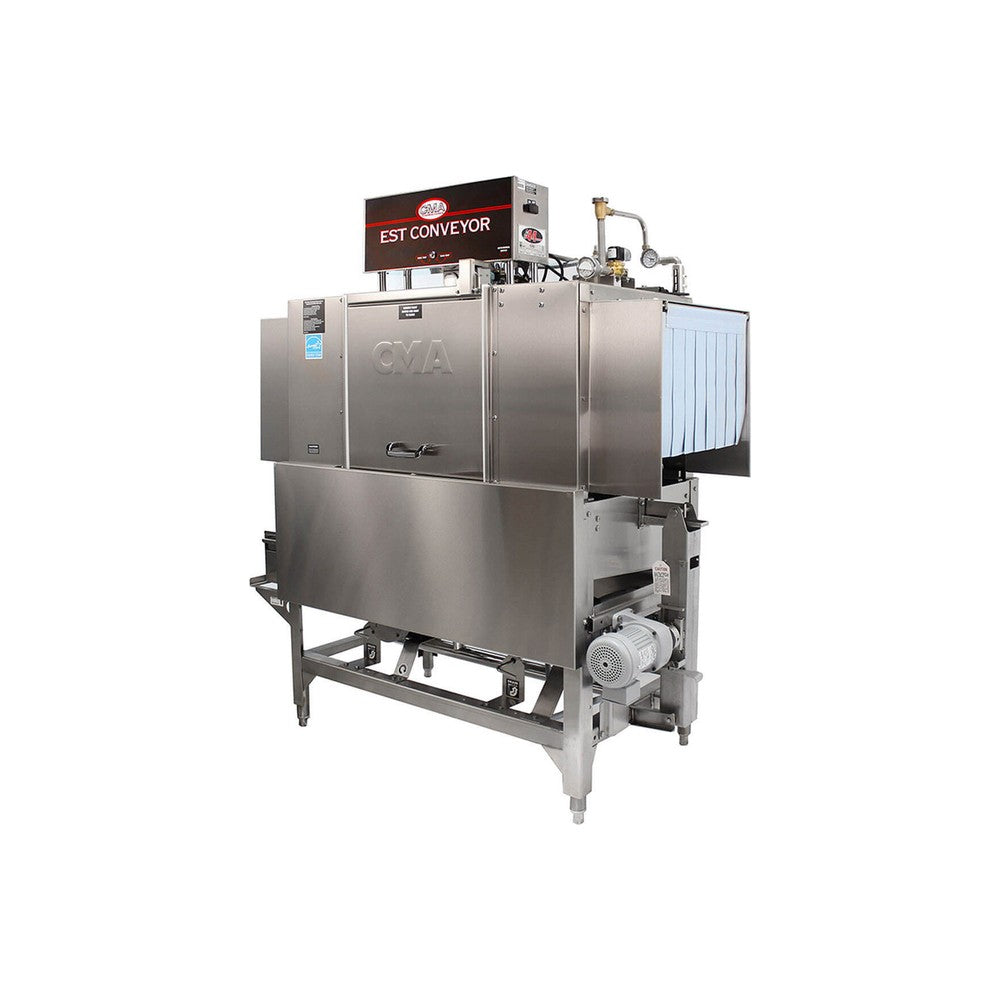

CMA EST-44H 44" High-Temp Conveyor Dishwasher, 249 Racks/Hr

CMA EST-44H Compact High-Temperature Conveyor

The EST-44H brings heat sanitizing to CMA's shortest conveyor. Electric tank heat keeps the wash hot while racks advance on their own, giving a small dish room conveyor-level output.

Where it fits

Built for kitchens that prefer hot-water sanitizing and need a conveyor that fits where a door-type machine used to sit.

Key specifications

• Model: EST-44H
• Sanitizing: High Temperature
• Configuration: Conveyor (L/R or R/L)
• Capacity: up to 249 racks per hour
• Dimensions (W x D x H): 44" x 25 1/8" x 56 1/2"
• Weight: 662 lb
• Electrical: 208/240 or 480V, Single or Three Phase
• 0.46 gal final-rinse water per rack
• 13kW wash tank heater (208V, 3-phase)
• 19" maximum ware height
• Certifications: ETL sanitation; UL and cUL construction
• Warranty: 1 year limited parts and labor

Installation notes

Pair it with a booster heater sized for a 180°F final rinse and an exhaust hood. Specify left-to-right or right-to-left travel when ordering.
