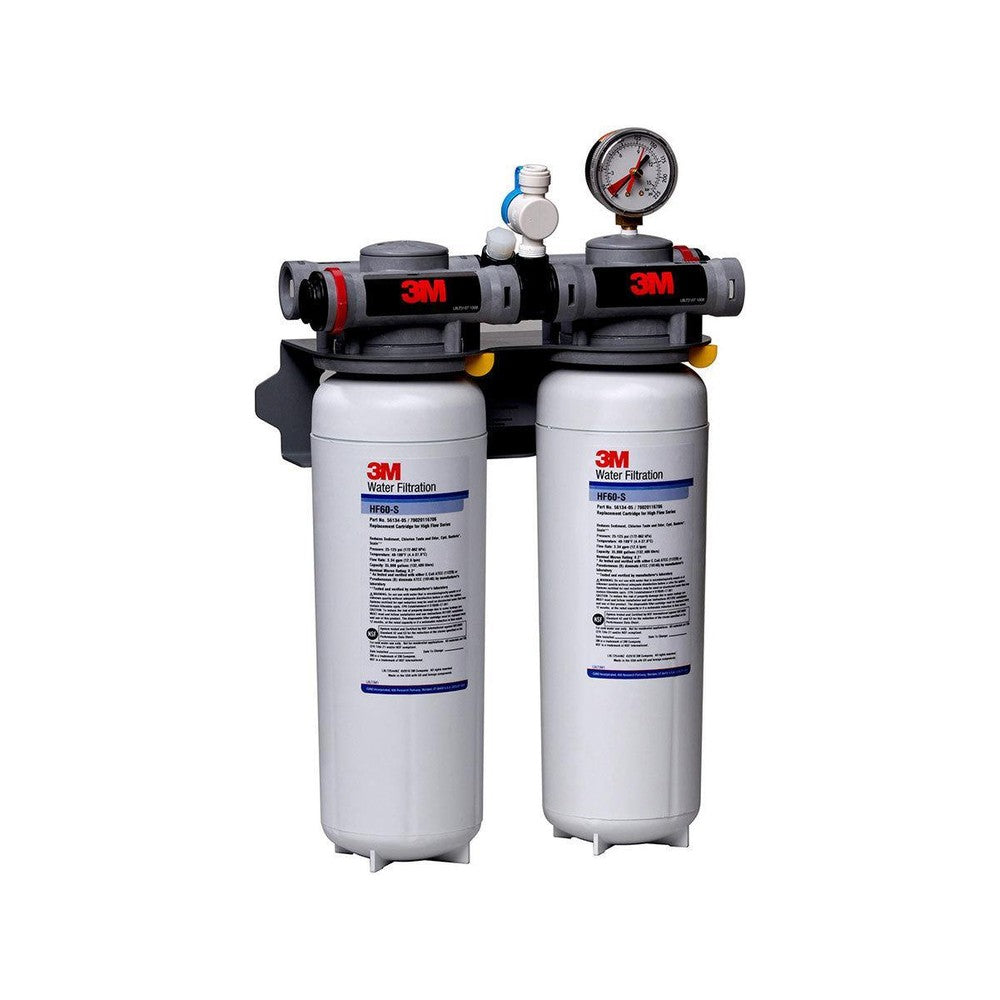

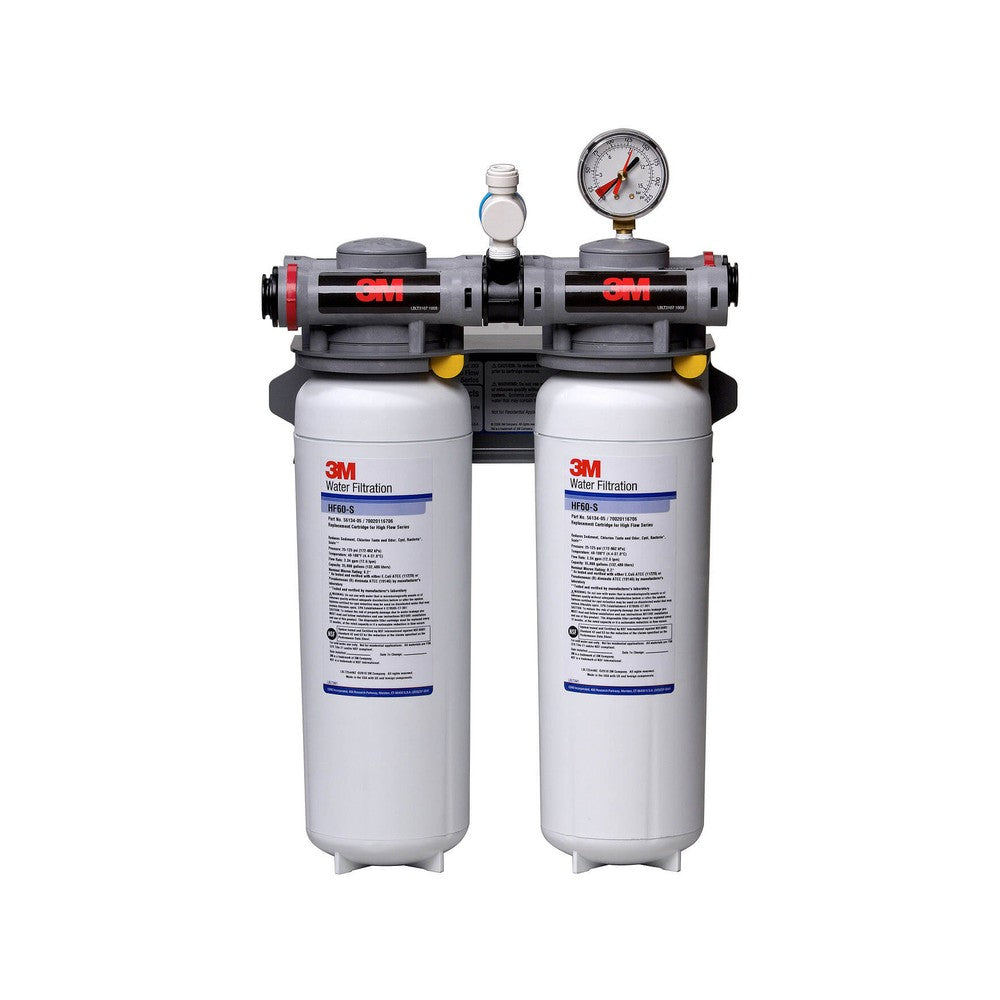

3M Cuno ICE260-S, Ice Maker Twin Cartridge Water Filter System

The 3M Cuno ICE260-S is a High Flow Series twin-cartridge filter system for larger commercial ice machines. Two HF60-S cartridges run in parallel on one manifold, so water flows at up to 6.68 gpm while sediment, chlorine taste and odor, cysts and bacteria are reduced. Built-in scale inhibitor helps keep hard scale off the evaporator.

Replacement cartridges:

The system uses two (2) 3M Cuno HF60-S cartridges (part 56134-05). Replace both at the same time, every 12 months or at 70,000 gallons, whichever comes first.

Features:

• Twin High Flow Series manifold with two HF60-S cartridges included
• Reduces sediment, chlorine taste and odor, cysts and bacteria, with 0.2 micron nominal filtration
• Scale inhibitor helps prevent lime scale build-up in the ice machine
• Sanitary Quick Change (SQC) cartridges change out with a quarter turn, with no contact with the filter media
• Built-in pressure gauge, inlet shut-off valve, outlet check valve and mounting brackets
• Auxiliary inlet gauge port for optional differential pressure monitoring
• 3/4" NPT horizontal inlet and outlet ports
• NSF Standard 42 and/or FDA CFR-21 compliant materials

Sizing:

• High flow cubers up to 2,400 lb per day
• Low flow cubers up to 3,000 lb per day
• Flakers up to 4,800 lb per day

Specifications:

• Model: ICE260-S (part 56245-03)
• Service flow rate: 6.68 gpm (25.3 lpm)
• Capacity: 70,000 gallons (264,978 liters)
• Micron rating: 0.2 nominal
• Maximum operating pressure: 125 psi; maximum water temperature: 100°F
• Height: 18-1/16"; allow 2-5/16" below the cartridges for removal
• Operating weight: 27 lb

Installation notes:

• Cold water lines only. Protect from freezing and remove the cartridges if the temperature may drop below 40°F.
• Install a pressure limiting valve if supply pressure is over 80 psi.
• Installation must comply with state and local plumbing codes.
