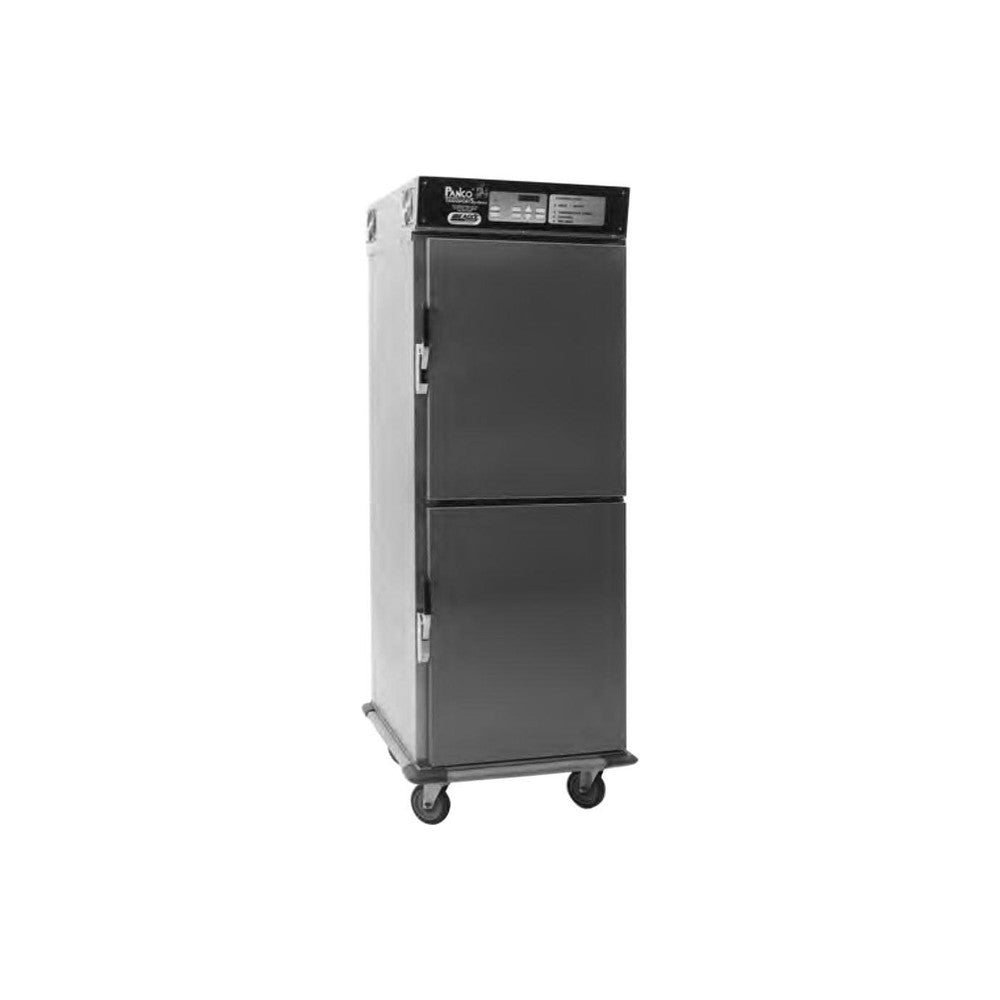

Eagle Group CH6000D-208 Panco Cook & Hold Cabinet, Dutch Doors, 18 Pan, 208V

The Eagle Group Panco CH6000D-208 is the Dutch-door version of the full-height Panco cook and hold cabinet, wired for 208V. Two half doors let staff open only the section they need, which keeps heat and humidity in the cabinet during busy service while eighteen pans cook or hold.

Best for:

• Busy lines that open the cabinet often during service
• Banquet kitchens holding plated or panned food
• Operations that want less heat loss per door opening

Key specifications:

• Model: CH6000D-208 (208V version)
• Capacity: 18 pairs of chrome wire slides for 18" x 26" sheet pans
• Cook/probe 100°F to 350°F; hold 145°F to 200°F
• Electrical: 208V, 6,000 W (three 2,000 W elements), single phase
• Dutch doors (two half doors)
• Overall size: 27-1/2" W x 32-7/8" D x 77-1/8" H (width and depth include bumper)
• Shipping weight: 462 lb

Features:

• Precise temperature and humidity control, within 8°F anywhere in the cabinet
• Humidity supplied by a solenoid plumbed to the water line
• Even convection heat from an engineered airflow design
• Top-mounted digital control with LCD readout and memory for 16 programs
• Cooks by time or by temperature probe, then switches to hold automatically
• Cook/hold time up to 24 hours; overheat and power-outage alarms
• Triple-wall insulated cabinet; 18 gauge type 300 stainless steel inside and out
• Reversible doors swing 180° with positive-closing latch
• 5" polymer swivel casters, two with brakes; full perimeter bumper

Installation notes:

• 208V single phase; supplied with a cord and NEMA 6-50 plug. Also sold as a 240V model, so order the version that matches your building
• Needs a water supply connection for the humidity solenoid
• Electric cook and hold usually runs without a hood; confirm with local code

Warranty:

• 1 year limited from Eagle Group
