Fetco CBS-2252 NG (E2252US-UB250-PA110), NG Series Twin Thermal Server Coffee Brewer, Plastic Basket, 208-240V 1-Ph/3-Ph
Fetco CBS-2252 NG (E2252US-UB250-PA110), NG Series Twin Thermal Server Coffee Brewer, Plastic Basket, 208-240V 1-Ph/3-Ph is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fetco CBS-2252 NG (E2252US-UB250-PA110), NG Series Twin Thermal Ser...
Description
Description

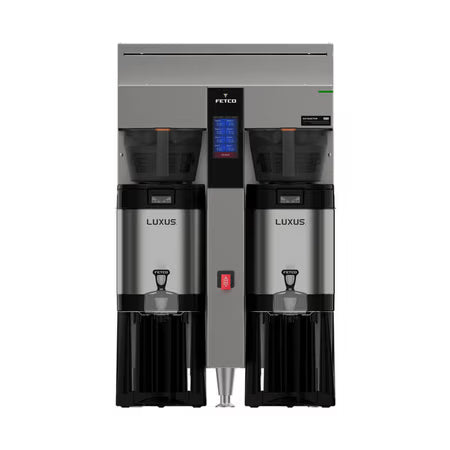

The Fetco CBS-2252 NG (E2252US-UB250-PA110) is a twin-station NG Series touchscreen brewer that keeps two 1.5-gallon thermal servers filled during rush periods. This configuration comes with plastic brew baskets and is set up for 10 kW, 208-240V single-phase; 15 kW, 208-240V three-phase.
Best for:
- Restaurants, cafeterias and banquet operations
- Serving two coffees at once at high volume
- Back-of-house refill stations
Key specifications:
- Model: CBS-2252 NG (configuration code E2252US-UB250-PA110)
- Brew stations: 2
- Output: up to 481 8 oz cups per hour
- Brews into: two 1.5 gal thermal servers
- Tank capacity: 10.48 gal
- Brew basket: Plastic brew baskets
- Paper filter size: 15" x 5 1/2"
- Electrical: 10 kW, 208-240V single-phase; 15 kW, 208-240V three-phase
- Water connection: 3/8" male flare, 1.5 gpm minimum, 20-75 psig
- Dimensions: 21.88" W x 22.5" D x 36.88" H
- Shipping weight: 97 lb
- Certifications: UL, NSF
Features:
- Extractor brewing system for full control of brew time, pulsing and bypass
- Capacitive touchscreen for setting recipes and brew buttons
- LED status bar shows where each brew cycle stands
- ECO mode lowers tank temperature during idle periods
- Brew baskets lock in place while brewing
- Lime-resistant cascading spray dome, manual hot water faucet, USB recipe port and laser-welded tank
What's included:
- Brewer with two brew baskets. Thermal servers, filters and water filtration are sold separately.
- Fetco spec sheet with full electrical options and clearances is linked on this page
Installation notes:
- Hardwire or connect per the electrical configuration above; a licensed electrician should install
- Connect to a cold water line with the pressure and flow listed above; a water filter is recommended
- Check the spec sheet for clearances and the exact heater configuration before ordering
Warranty:
- 1 year parts and labor
- 2 years parts on electromechanical components
- 3 years parts on circuit boards
Specifications
Specifications
| CAPACITY | 10.48 gal tank; brews into two 1.5 gal thermal servers; up to 481 cups/hr |
|---|---|
| DIMENSIONS | 21.88 x 22.5 x 36.88 (W" x D" X H") |
| PHASE | Single or Three |
| VOLTS | 208-240V |
| WARRANTY | 1 year parts and labor; 2 years parts on electromechanical components; 3 years parts on circuit boards |
| WATTAGE | 10 kW or 15 kW (single / three phase) |
| WEIGHT | 97 lb |
Spec Sheet (PDF)
