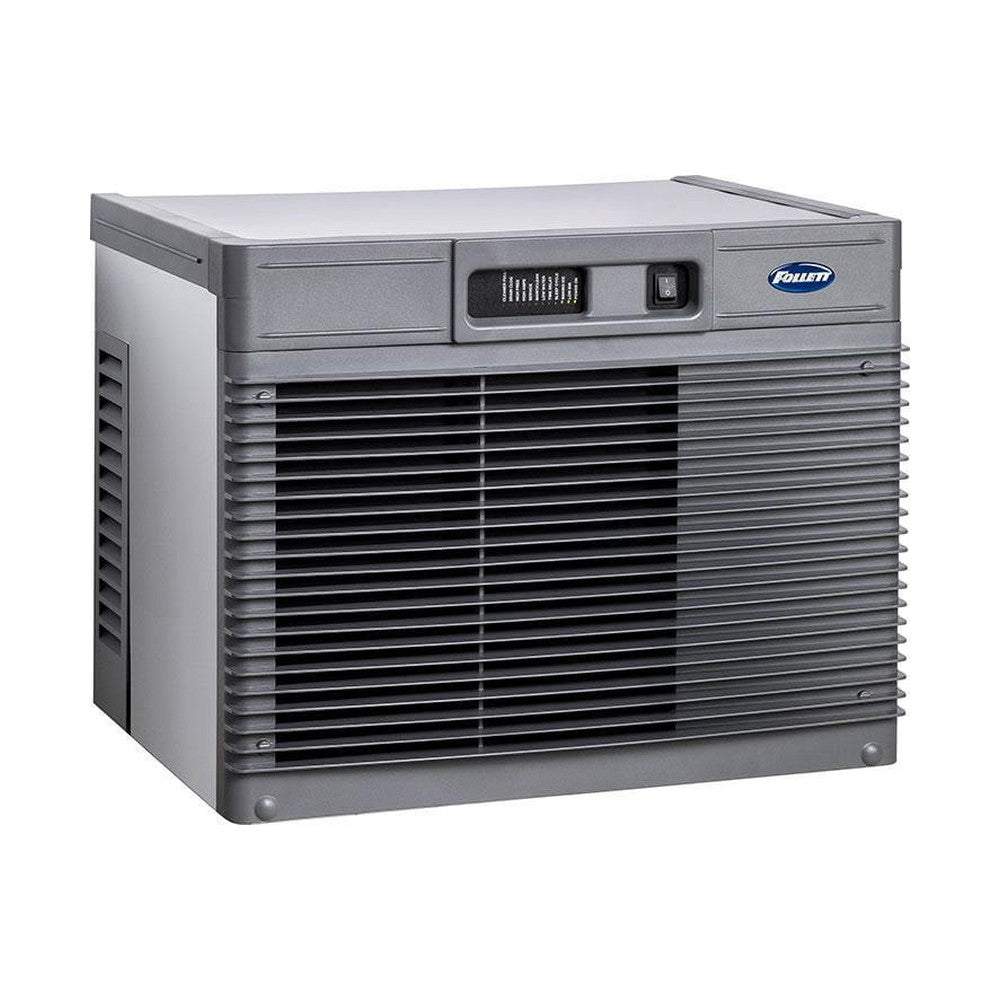

Follett C1010A, 29" Air Cooled Horizon Elite™ Chewblet Ice Machine, 1,061 Lb

Model specifics: up to 1,061 lbs per 24 hours · 29.15" wide · Chewblet nugget ice · air-cooled · 208-230V · ice machine only, bin sold separately

The Horizon Elite C1010A is Follett's 29-inch, air-cooled Chewblet ice machine, rated at up to 1,061 pounds of soft, chewable nugget ice a day on 208-230 volt power. It is a high-capacity head for busy beverage programs, hospitals and convenience stores, and it can sit right on top of a bin or dispenser or be installed out of sight and send ice through a tube with Follett's RIDE remote ice delivery.

With RIDE, the C1010A can mount in a base cabinet, on a wall bracket or on a floor stand up to 75 feet from the bin or dispenser, which takes the heat and noise out of the front-of-house. Top-mount, RIDE, Vision, drop-in and Ice Manager applications each use their own Follett installation kit, ordered separately.

Horizon Elite's horizontal evaporator and auger design quarantines and regularly flushes out dissolved solids, so the ice has only about 15% of the TDS of the incoming water. That dramatically reduces scale buildup, stretches the time between descaling, and uses about 35% less water than comparable cube machines. Key ice and water contact parts carry Agion silver-based antimicrobial protection, and the floatless, sealed design inhibits biofilm.

Features

• Up to 1,061 lbs of Chewblet ice per 24 hours (70°F air / 50°F water)
• About 765 lbs per day at 90°F air / 70°F water
• RIDE remote ice delivery up to 75 ft (tube kit sold separately)
• Scale-inhibiting design: ice has 15% of incoming water TDS
• Quiet production with no harvest cycles
• Semi-automatic cleaning and sanitizing system
• Easy-to-read LED status and diagnostic display
• No routine bearing inspection or replacement

Specifications

• Model: C1010A
• Series: Horizon Elite
• Ice type: Chewblet (compressed nugget)
• Ice production: up to 1,061 lbs / 24 hr

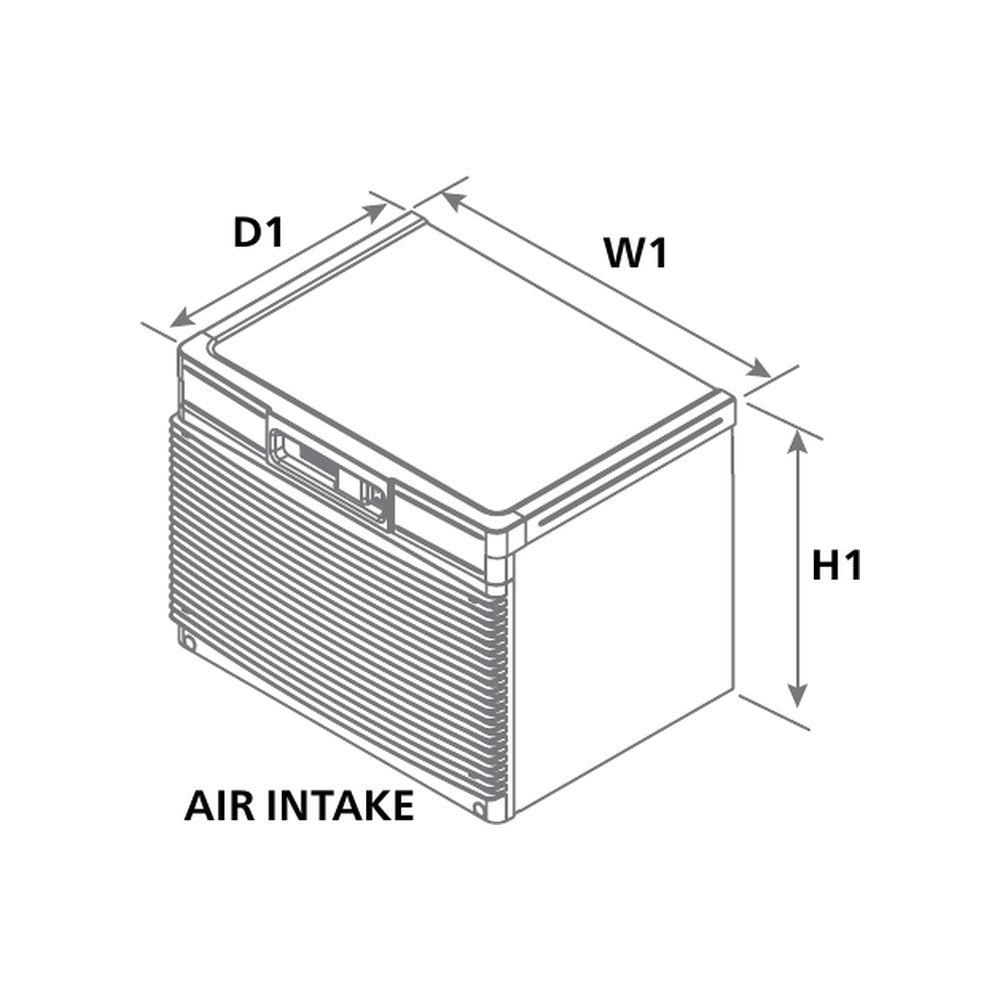

• Dimensions (W x D x H): 29.15" x 23.25" x 22.5"
• Electrical: 208-230V/60/1, 11 amps, dedicated 15 amp circuit, 6' cord, NEMA 6-15 plug
• Refrigerant: R404A
• Energy use: 4.8 kWh per 100 lbs of ice (90°F air, 70°F water)
• Heat rejection: 11,300 BTU/hr
• Water use: 12.0 gal per 100 lbs of ice (AHRI)
• Water inlet / drain: 3/8" OD push-in / 3/4" MPT (1" drain required)
• Clearance: 1" top, left and right
• Shipping weight: 275 lbs
• Certifications: NSF, UL
• Warranty: 3 years parts and labor, 5 years compressor parts

Please note: this is the ice machine only. A bin or dispenser and the Follett installation kit for your application are required and sold separately (01564590 for ice storage bins, 01564582 for countertop ice and beverage dispensers, 01564632 for Vision, 01564640 for drop-in dispensers). Undercounter installs need ventilation kit 01564624, and RIDE installs need an ice transport tube kit. For indoor use only.
