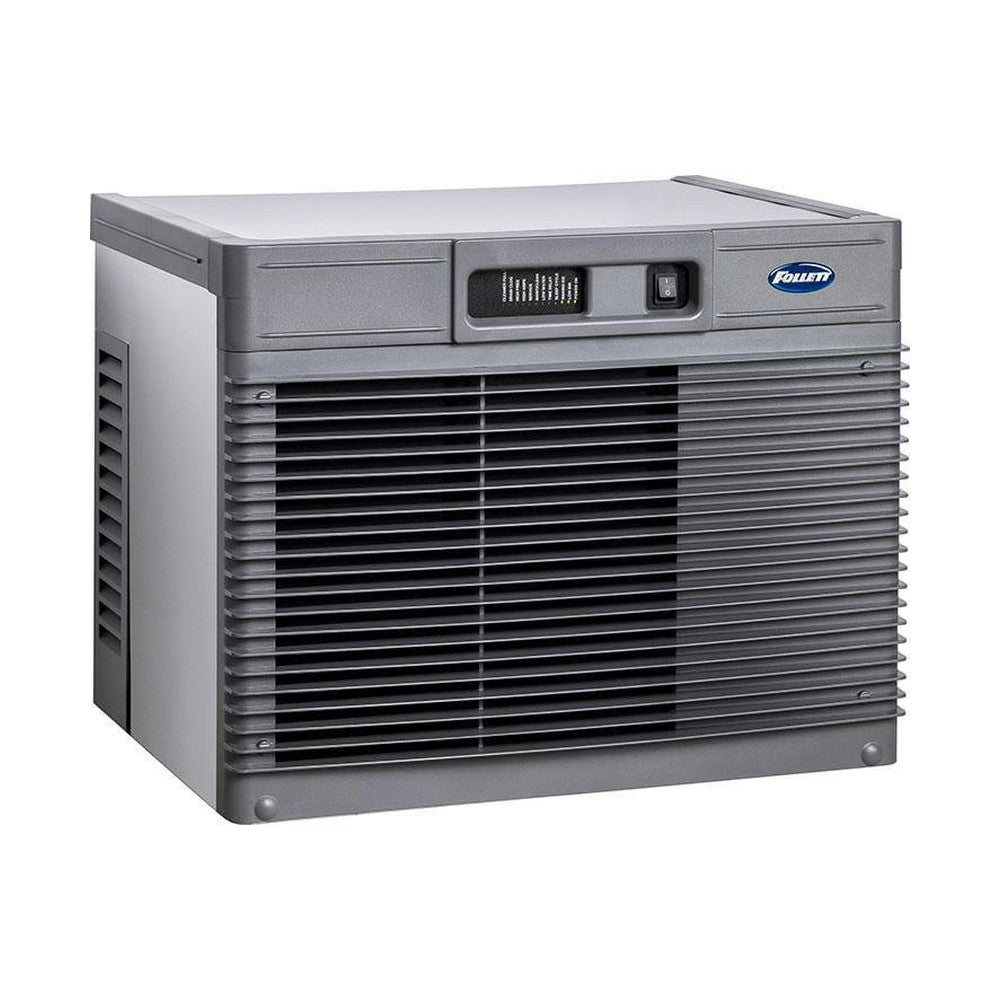

Follett C1410A, 29" Air Cooled Horizon Elite™ Chewblet Ice Machine, 1,466 Lb

Model specifics: up to 1,466 lbs per 24 hours · 29.15" wide · Chewblet nugget ice · air-cooled · 208-230V · ice machine only, bin sold separately

The Follett C1410A is the largest air-cooled Horizon Elite head, making up to 1,466 pounds of Chewblet ice a day in the same 29.15-inch width as the 1010 series. It is sized for stadiums, theaters, large hospitals and high-volume fountain operations that cannot afford to run out of nugget ice at peak times.

Like the rest of the Horizon Elite line, the C1410A can top-mount on a Follett bin or ice and beverage dispenser, or use RIDE technology to push ice through a tube up to 75 feet to the point of use. It needs a dedicated 20 amp, 208-230 volt circuit (NEMA 6-20 plug on a 6-foot cord).

Horizon Elite's horizontal evaporator and auger design quarantines and regularly flushes out dissolved solids, so the ice has only about 15% of the TDS of the incoming water. That dramatically reduces scale buildup, stretches the time between descaling, and uses about 35% less water than comparable cube machines. Key ice and water contact parts carry Agion silver-based antimicrobial protection, and the floatless, sealed design inhibits biofilm.

Features

• Up to 1,466 lbs of Chewblet ice per 24 hours (70°F air / 50°F water)
• About 1,097 lbs per day at 90°F air / 70°F water
• RIDE remote ice delivery up to 75 ft (tube kit sold separately)
• Scale-inhibiting design: ice has 15% of incoming water TDS
• Quiet production with no harvest cycles
• Semi-automatic cleaning and sanitizing system
• Easy-to-read LED status and diagnostic display
• No routine bearing inspection or replacement
• Optional Open Kitchen remote monitoring (sold separately)

Specifications

• Model: C1410A
• Series: Horizon Elite
• Ice type: Chewblet (compressed nugget)
• Ice production: up to 1,466 lbs / 24 hr

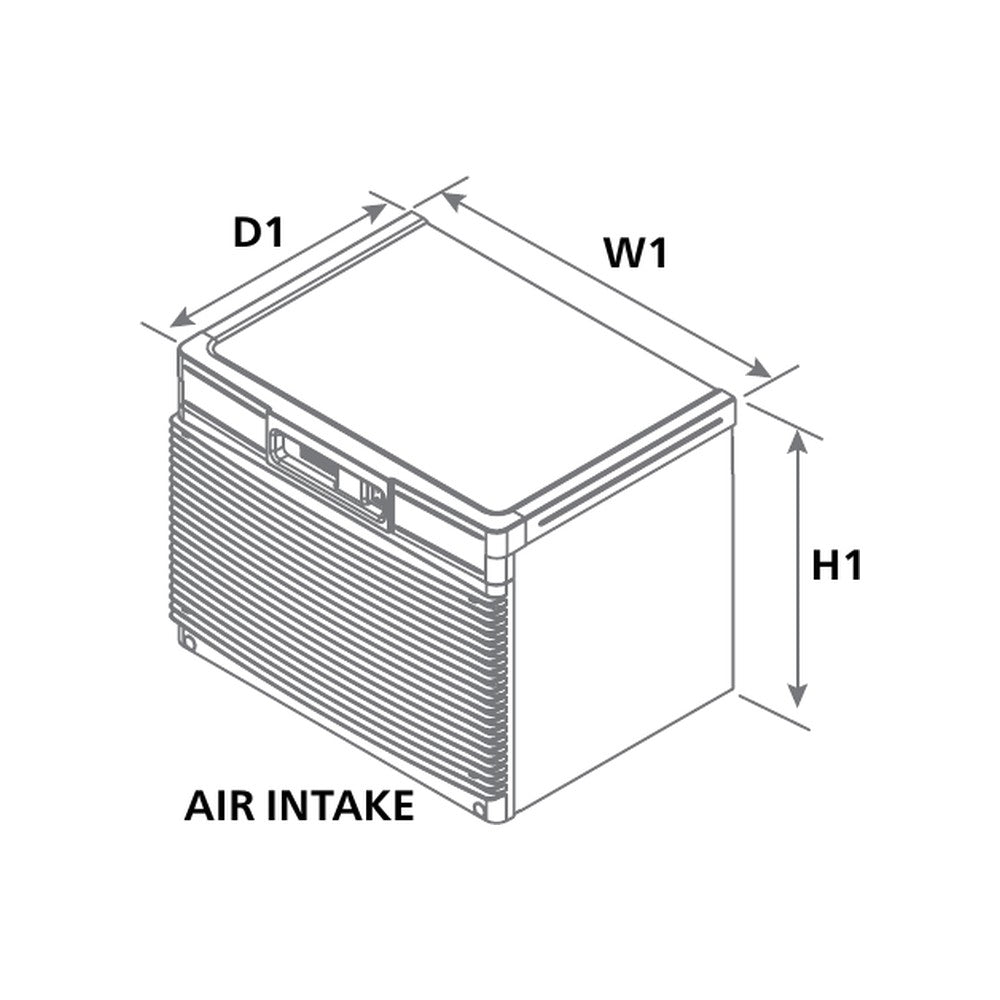

• Dimensions (W x D x H): 29.15" x 25.15" x 22.5"
• Electrical: 208-230V/60/1, 14 amps, dedicated 20 amp circuit, 6' cord, NEMA 6-20 plug
• Refrigerant: R404A
• Energy use: 4.84 kWh per 100 lbs of ice (90°F air, 70°F water)
• Heat rejection: 16,000 BTU/hr
• Water use: 12.0 gal per 100 lbs of ice (AHRI)
• Water inlet / drain: 3/8" OD push-in / 3/4" MPT (1" drain required)
• Clearance: 1" top, left and right
• Shipping weight: 285 lbs
• Certifications: NSF, UL
• Warranty: 3 years parts and labor, 5 years compressor parts

Please note: this is the ice machine only. A bin or dispenser and the Follett installation kit for your application are required and sold separately (01564590 for ice storage bins, 01564582 for countertop ice and beverage dispensers, 01564632 for Vision, 01564640 for drop-in dispensers). Undercounter installs need ventilation kit 01564624, and RIDE installs need an ice transport tube kit. For indoor use only.
