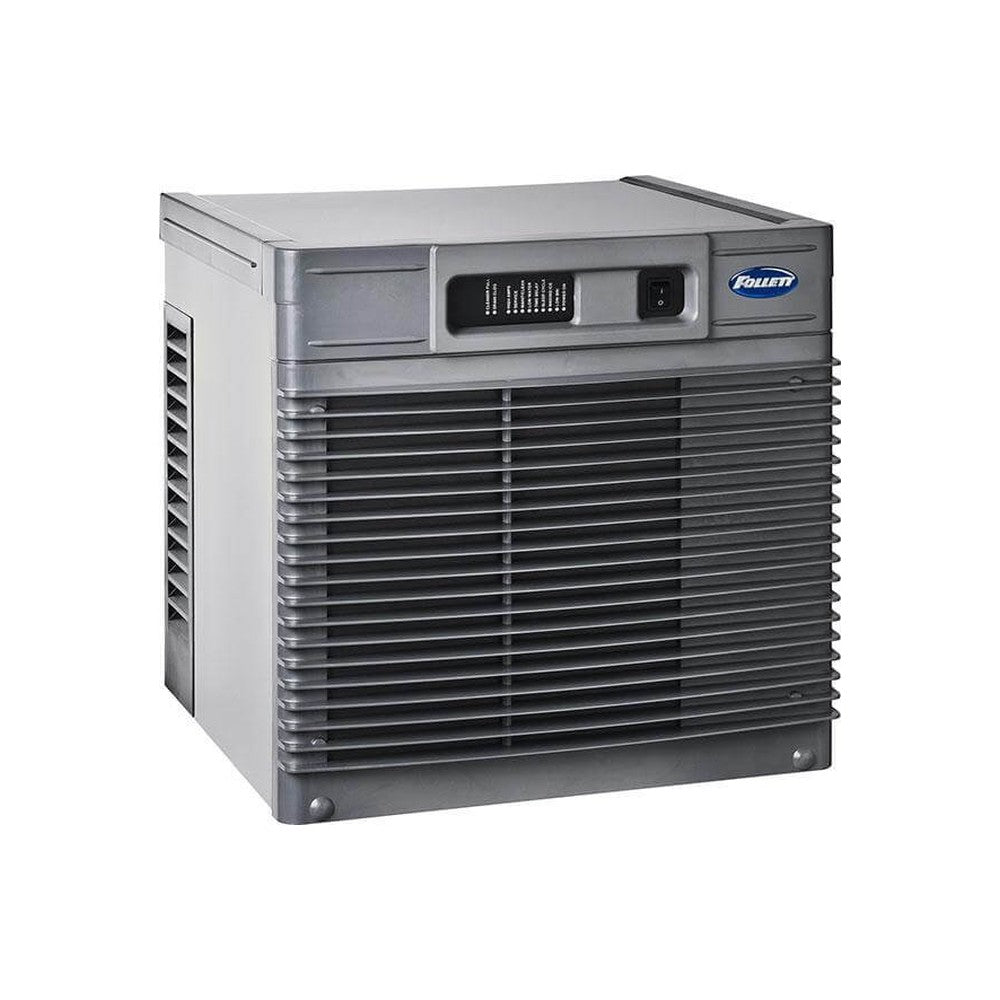

Follett D414AT, 22" Air Cooled Maestro Plus™ Chewblet Ice Machine, 425 Lb

Model specifics: up to 425 lbs per 24 hours · 22.7" wide · Chewblet nugget ice · air-cooled · 115V · ice machine only, bin sold separately

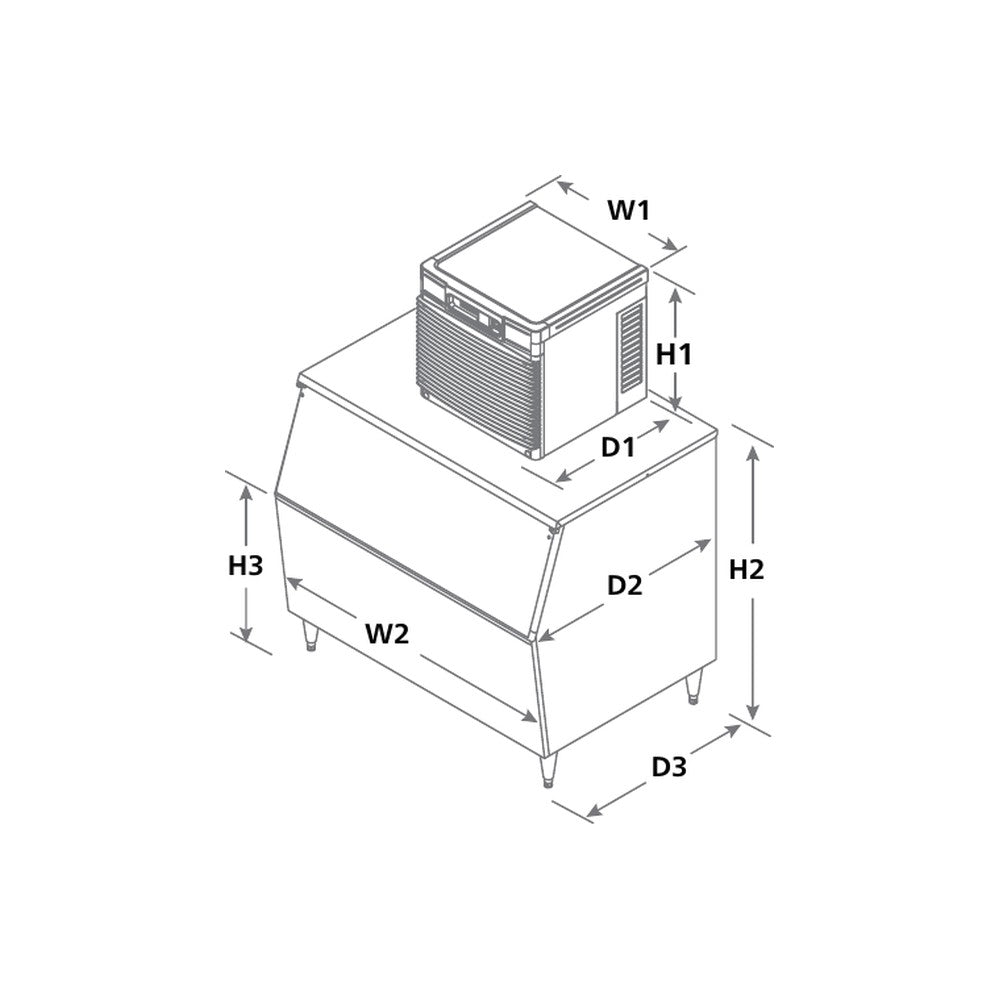

The Maestro Plus D414AT is a compact, 22-inch top-mount head that makes up to 425 pounds of Follett's customer-favorite Chewblet ice a day. It is designed to sit on a countertop ice and beverage dispenser or on one of more than 20 Follett ice storage bins, and it runs on ordinary 115 volt power with R290 refrigerant.

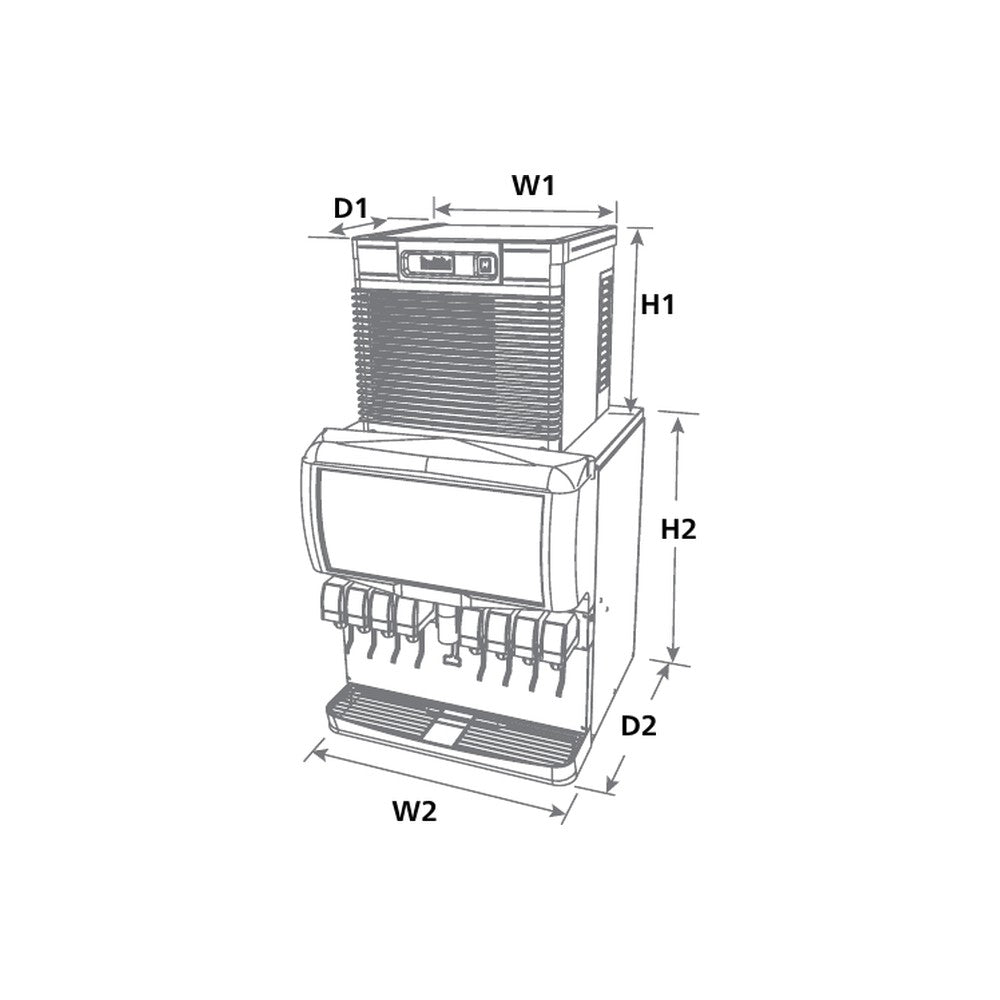

For soda fountains, the matching Follett top kit (for example MTC22SCP for Cornelius 150 series or MTL22SCP for Lancer 22-inch units) mounts the machine without altering the dispenser and includes a stainless steel top. Chewblet ice is easy to chew, dispenses reliably and melts slowly, so drinks stay cold without watering down.

Inside, a stainless steel evaporator, auger and top bearing ride on an oversized, heavy-duty tapered roller bearing for long, low-maintenance life. The machine flushes itself automatically to remove impurities, has no noisy harvest cycle or defrost, uses about 40% less water than a comparable cube machine, and a full clean and sanitize takes under an hour.

Features

• Up to 425 lbs of Chewblet ice per 24 hours (70°F air / 50°F water)
• About 340 lbs per day at 90°F air / 70°F water
• ENERGY STAR certified, R290 refrigerant
• Stainless steel evaporator, auger and top bearing
• Automatic self-flushing
• Cleaning and sanitizing in under an hour
• LED control board shows status at a glance

Specifications

• Model: D414AT
• Series: Maestro Plus
• Ice type: Chewblet (compressed nugget)
• Ice production: up to 425 lbs / 24 hr
• Dimensions (W x D x H): 22.7" x 24.25" x 21.25"
• Electrical: 115V/60/1, 7.2 amps, 15 amp circuit, 7' cord, NEMA 5-15 plug
• Refrigerant: R290 (3.49 oz)
• Energy use: 5.4 kWh per 100 lbs of ice (90°F air, 70°F water)
• Heat rejection: 5,000 BTU/hr
• Water use: 12.0 gal per 100 lbs of ice (AHRI)
• Water inlet / drain: 3/8" FPT / 3/4" MPT
• Clearance: 12" top for service, no front obstructions
• Shipping weight: 170 lbs
• Certifications: NSF, UL, ENERGY STAR
• Warranty: 3 years parts and labor, 5 years compressor parts

Please note: this is the ice machine only. The bin or dispenser, and the Follett top kit for dispenser installs, are sold separately. For indoor use only.
