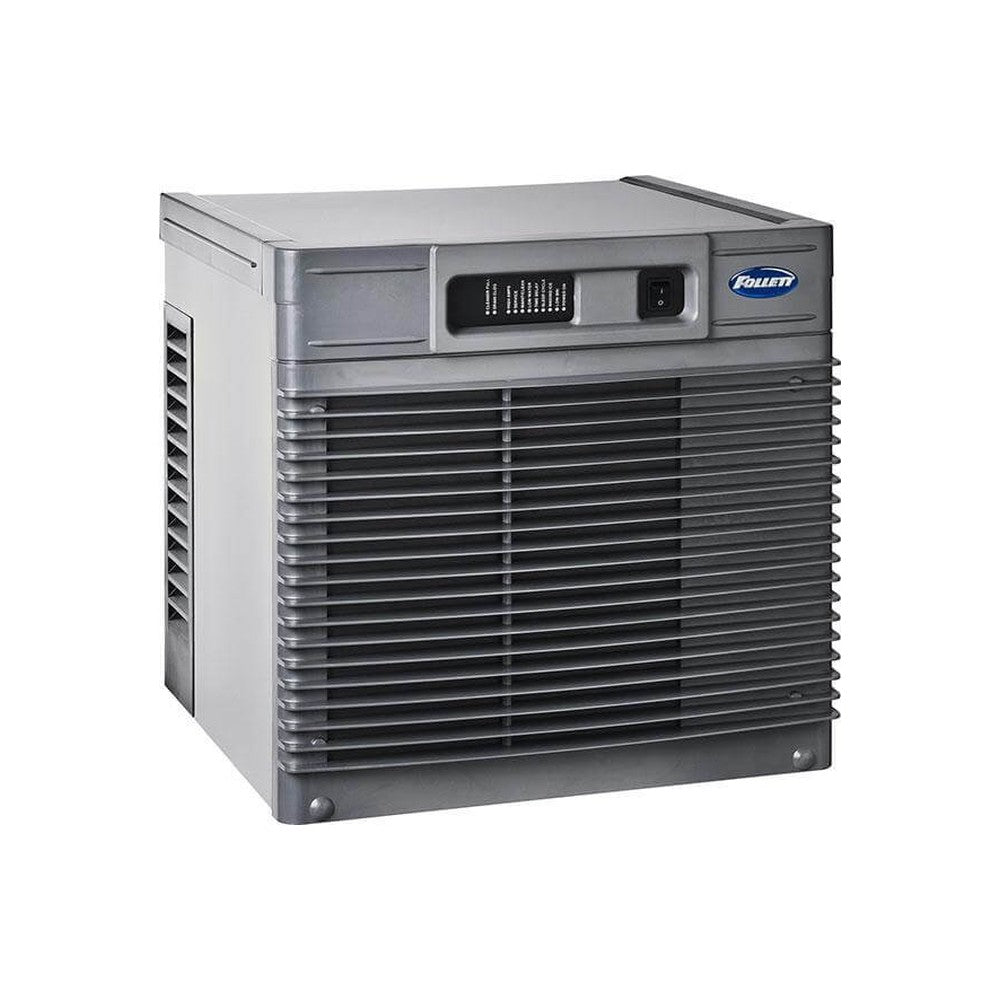

Follett D414ATF, 22" Air Cooled Maestro Plus™ Flake Ice Machine, 425 Lb
Follett D414ATF, 22" Air Cooled Maestro Plus™ Flake Ice Machine, 425 Lb is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Follett D414ATF, 22" Air Cooled Maestro Plus™ Flake Ice Machin...
Description
Description
Model specifics: up to 425 lbs per 24 hours · 22.7" wide · flake ice · air-cooled · 115V · ice machine only, bin sold separately
The Maestro Plus D414ATF is the flake ice version of Follett's 22-inch top-mount head, producing up to 425 pounds of flake ice a day on 115 volt power. Flake ice has a high surface area, so it chills quickly, molds around products and holds containers in place, which makes it a good fit for seafood and produce displays, salad bars, blood banks and clinical labs.
The D414ATF is built for use on ice storage bins only (Follett lists it as compatible with more than 20 of its bins); it is not intended for beverage dispensers. It uses R290 refrigerant and is ENERGY STAR certified.
Inside, a stainless steel evaporator, auger and top bearing ride on an oversized, heavy-duty tapered roller bearing for long, low-maintenance life. The machine flushes itself automatically to remove impurities, has no noisy harvest cycle or defrost, uses about 40% less water than a comparable cube machine, and a full clean and sanitize takes under an hour.
Features
- Up to 425 lbs of flake ice per 24 hours (70°F air / 50°F water)
- About 340 lbs per day at 90°F air / 70°F water
- ENERGY STAR certified, R290 refrigerant
- Stainless steel evaporator, auger and top bearing
- Automatic self-flushing
- Cleaning and sanitizing in under an hour
- LED control board shows status at a glance
Specifications
- Model: D414ATF
- Series: Maestro Plus
- Ice type: Flake
- Ice production: up to 425 lbs / 24 hr
- Dimensions (W x D x H): 22.7" x 24.25" x 21.25"
- Electrical: 115V/60/1, 7.2 amps, 15 amp circuit, 7' cord, NEMA 5-15 plug
- Refrigerant: R290 (3.49 oz)
- Energy use: 5.4 kWh per 100 lbs of ice (90°F air, 70°F water)
- Heat rejection: 5,000 BTU/hr
- Water use: 12.0 gal per 100 lbs of ice (AHRI)
- Water inlet / drain: 3/8" FPT / 3/4" MPT
- Clearance: 12" top for service, no front obstructions
- Shipping weight: 170 lbs
- Certifications: NSF, UL, ENERGY STAR
- Warranty: 3 years parts and labor, 5 years compressor parts

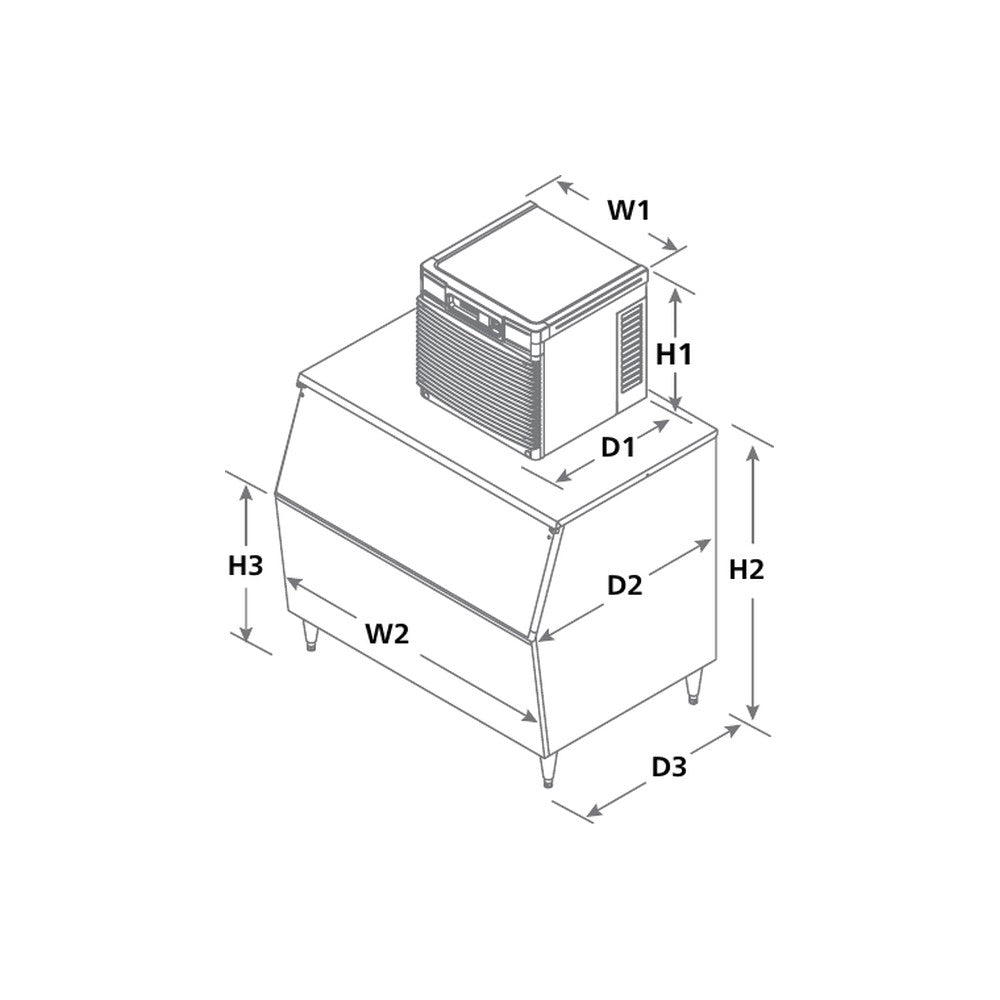

Please note: this is the ice machine only; the ice storage bin is sold separately. For indoor use only.
Specifications
Specifications
| AMPS | 7.2 |
|---|---|
| COOLING TYPE | Air |
| DIMENSIONS | 22.7" W x 24.25" D x 21.25" H (W" x D" X H") |
| EQUIPMENT MODELS THIS PART WORKS WITH | Follett ice storage bins (over 20 compatible models) |
| ICE TYPE | Flake |
| INCLUDES | 7 ft power cord with NEMA 5-15 plug |
| LBS OF ICE MADE PER 24HRS | 425 |
| NOTE | Ice machine only, for use on ice storage bins (bin sold separately); not for beverage dispensers; ENERGY STAR certified; NSF and UL listed |
| PHASE | Single Phase |
| VOLTS | 115V |
| WARRANTY | 3 years parts and labor, 5 years compressor parts |
| WEIGHT | 170 lb |
Spec Sheet (PDF)
