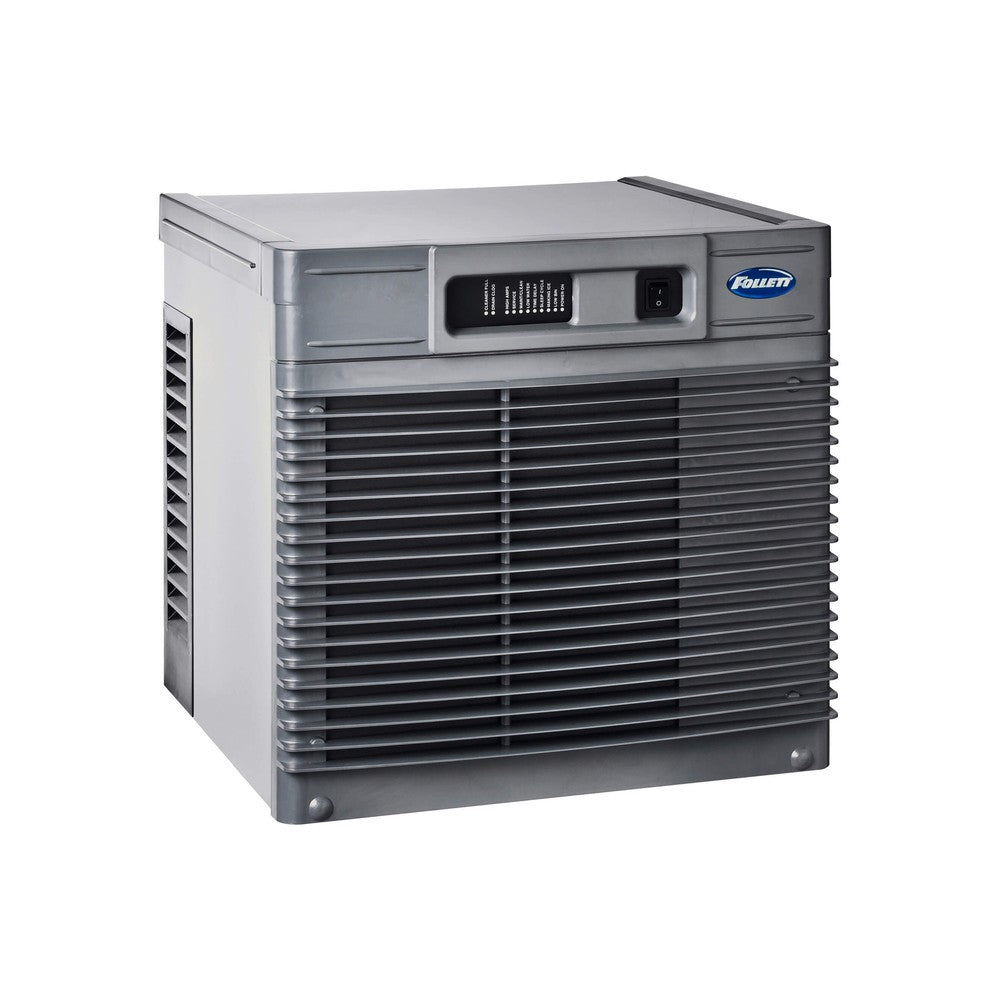

Follett D710A, 22" Air Cooled Horizon Elite™ Chewblet Ice Machine, 759 Lb

Model specifics: up to 759 lbs per 24 hours · 22.7" wide · Chewblet nugget ice · air-cooled · 115V · ice machine only, bin sold separately

The Horizon Elite D710A brings Follett's scale-inhibiting Chewblet technology to a 22-inch, 115 volt package. It makes up to 759 pounds of nugget ice a day, fits on 22-inch-wide dispensers and bins, and is ENERGY STAR certified, making it a practical upgrade for restaurants, c-stores and healthcare kitchens that want nugget ice without 208-230 volt wiring.

Mount it directly on a bin or beverage dispenser, or use RIDE remote ice delivery to install it in a cabinet, on a wall or on a stand up to 75 feet away. The D710A also works with Follett Vision, drop-in and Ice Manager systems; each application uses its own installation kit, ordered separately.

Horizon Elite's horizontal evaporator and auger design quarantines and regularly flushes out dissolved solids, so the ice has only about 15% of the TDS of the incoming water. That dramatically reduces scale buildup, stretches the time between descaling, and uses about 35% less water than comparable cube machines. Key ice and water contact parts carry Agion silver-based antimicrobial protection, and the floatless, sealed design inhibits biofilm.

Features

• Up to 759 lbs of Chewblet ice per 24 hours (70°F air / 50°F water)
• About 586 lbs per day at 90°F air / 70°F water
• RIDE remote ice delivery up to 75 ft (tube kit sold separately)
• Scale-inhibiting design: ice has 15% of incoming water TDS
• Quiet production with no harvest cycles
• Semi-automatic cleaning and sanitizing system
• Easy-to-read LED status and diagnostic display
• ENERGY STAR certified

Specifications

• Model: D710A
• Series: Horizon Elite
• Ice type: Chewblet (compressed nugget)
• Ice production: up to 759 lbs / 24 hr

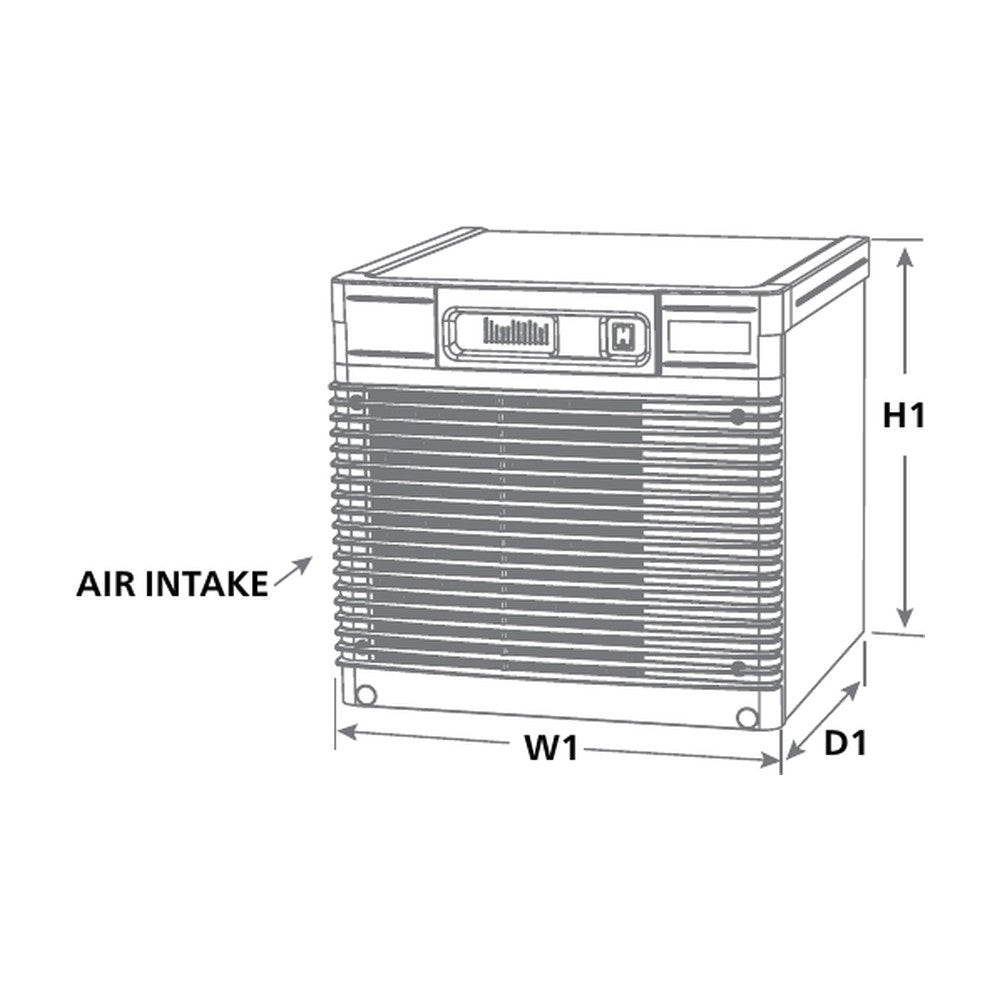

• Dimensions (W x D x H): 22.7" x 24.5" x 21.25"
• Electrical: 115V/60/1, 11.3 amps, dedicated 15 amp circuit, 6' cord, NEMA 5-15 plug
• Refrigerant: R404A
• Energy use: 4.78 kWh per 100 lbs of ice (90°F air, 70°F water)
• Heat rejection: 8,500 BTU/hr
• Water use: 12.0 gal per 100 lbs of ice (AHRI)
• Water inlet / drain: 3/8" OD push-in / 3/4" MPT (1" drain required)
• Clearance: 1" top, left and right
• Shipping weight: 180 lbs
• Certifications: NSF, UL, ENERGY STAR
• Warranty: 3 years parts and labor, 5 years compressor parts

Please note: this is the ice machine only. A bin or dispenser and the Follett installation kit for your application are required and sold separately (01564590 for ice storage bins, 01564582 for countertop ice and beverage dispensers, 01564632 for Vision, 01564640 for drop-in dispensers). Undercounter installs need ventilation kit 01564624, and RIDE installs need an ice transport tube kit. For indoor use only.
