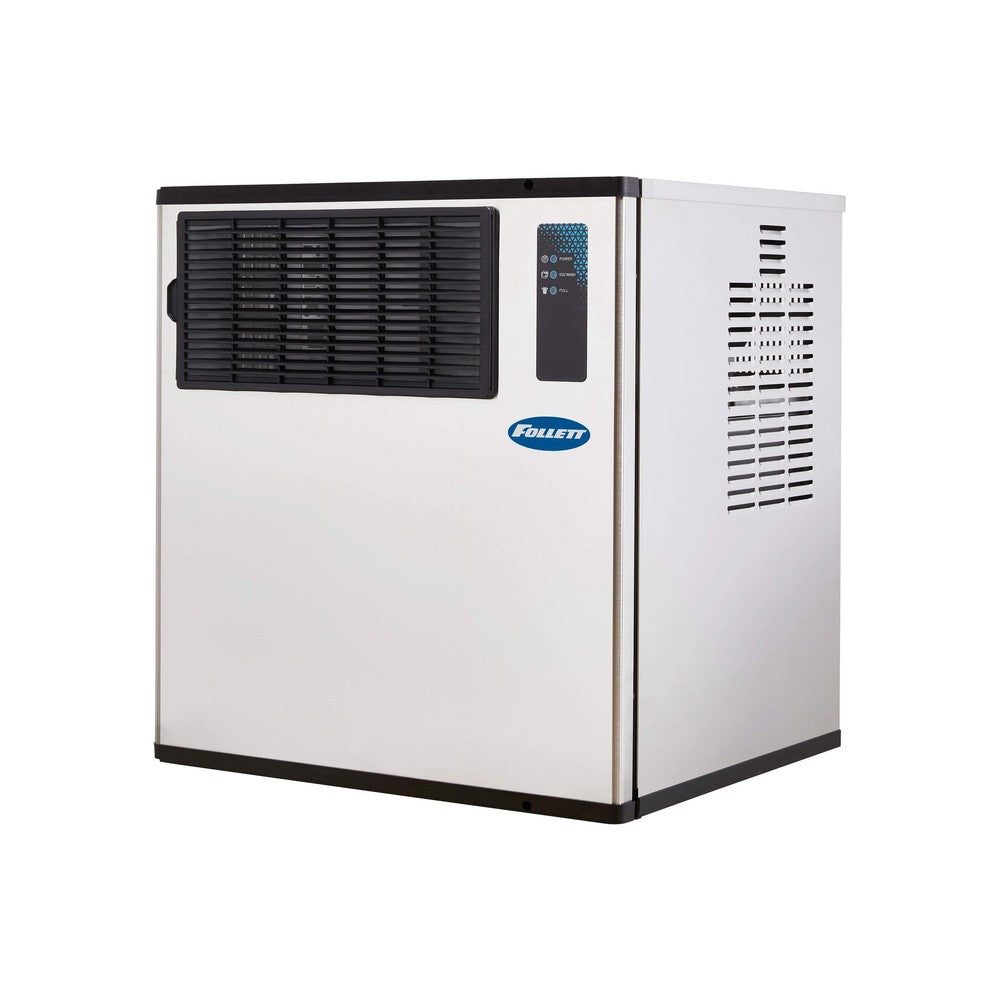

Follett IM-0485-AQ, 30" Air Cooled PerfectCube™ Square Cube Ice Machine, 480 Lb

Model specifics: up to 480 lbs per 24 hours · 30" wide · 1-1/4" PerfectCube square cubes · air-cooled · 115V single phase · ice machine only, bin sold separately

The IM-0485-AQ is Follett's 30-inch PerfectCube modular ice machine, an air-cooled head that makes up to 480 pounds a day of large, crystal-clear 1-1/4 inch square cubes. Big, dense cubes melt slowly, so cocktails, spirits on the rocks, iced coffee and soft drinks stay cold without getting watered down, and they look great in the glass. The narrow 30-inch cabinet is sized for tight back bars and kitchen lines where a 48-inch head will not fit.

Daily care is simple: the front panel is hinged, so it swings open for quick access to the ice-making section and fast cleaning. A built-in USB port lets the machine connect to Follett's Open Kitchen remote monitoring (sold separately) so you can keep an eye on performance. The insulated stainless steel body panels resist dents and keep condensation to a minimum, and the R290 hydrocarbon refrigerant is an environmentally friendly choice.

Mount the IM-0485-AQ on one of the Follett ice storage bins listed for it on the specification sheet: IB-033, IB-044 or IB-085-48, with bin adapter IB-3048B listed as an applicable accessory. At a hotter 90°F air and 70°F water the machine is rated for about 390 pounds a day, and it uses 6.11 kWh and 16 gallons of water per 100 pounds of ice.

Features

• Up to 480 lbs of ice per 24 hours (70°F air / 50°F water)
• About 390 lbs per day at 90°F air / 70°F water
• Large 1-1/4" x 1-1/4" x 1-1/4" square PerfectCube cubes
• Space-saving 30" width for bars and kitchens
• Hinged front panel for easy access and fast cleaning
• USB port for Open Kitchen remote monitoring (sold separately)
• Insulated stainless steel body panels resist dents and condensation
• Environmentally friendly R290 refrigerant
• ETL listed

Specifications

• Model: IM-0485-AQ
• Series: PerfectCube modular cube ice machine

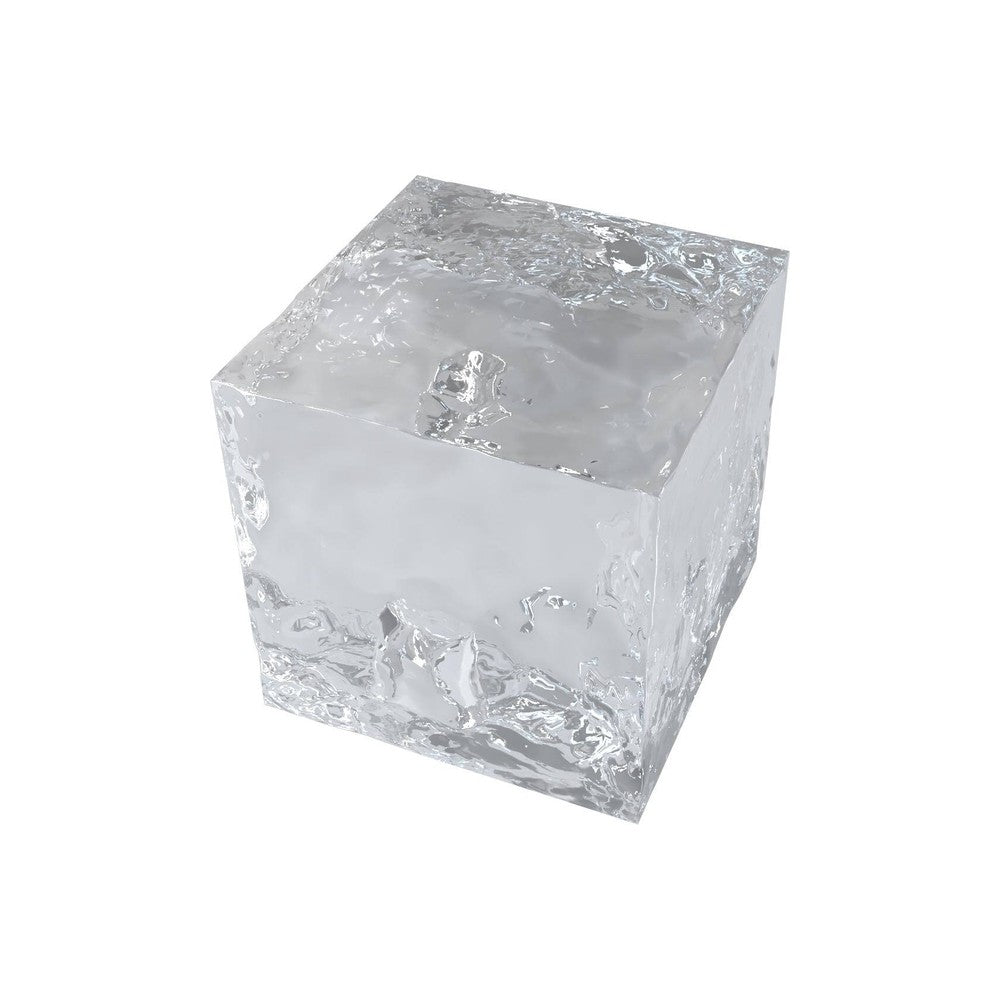

• Ice type: Square cube, 1-1/4" x 1-1/4" x 1-1/4"
• Ice production: up to 480 lbs / 24 hr

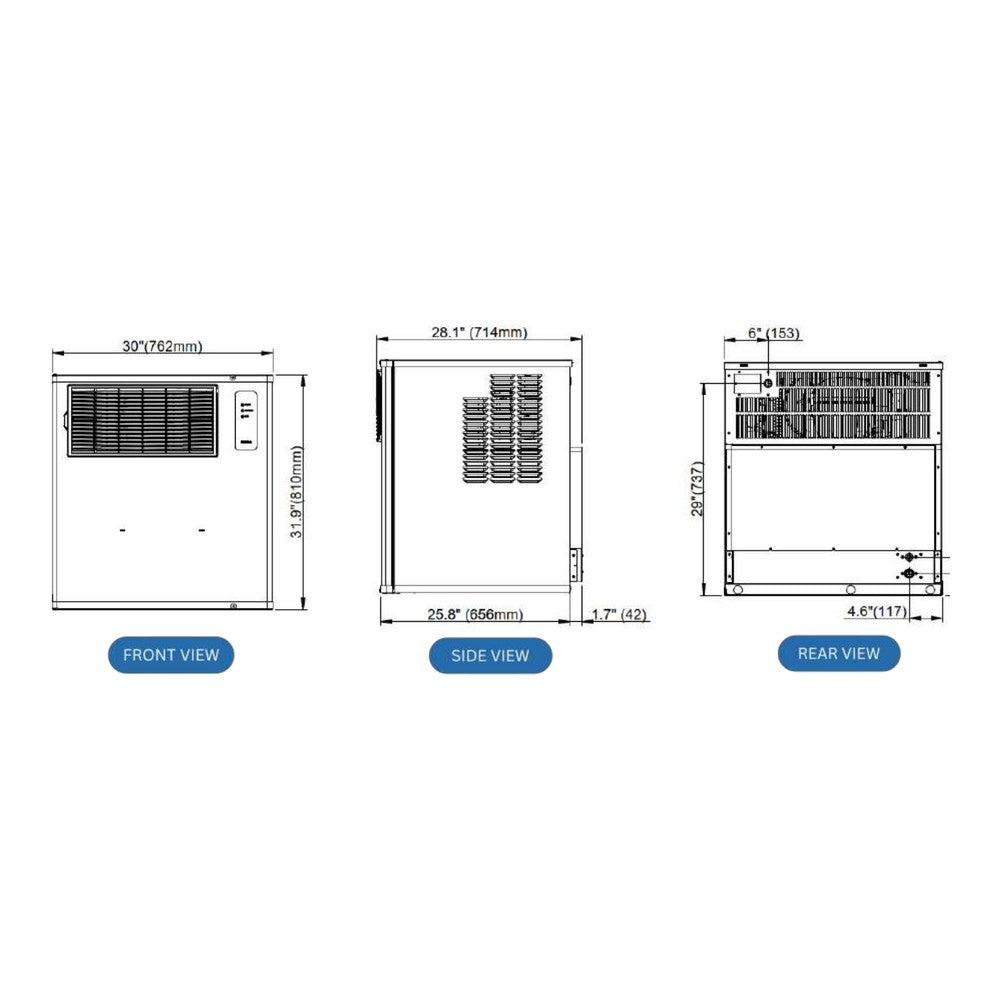

• Dimensions (W x D x H): 30" x 28.1" x 32"
• Electrical: 115-120V/60/1, 17 amp minimum circuit ampacity, 30 amp maximum fuse
• Condenser: Air-cooled
• Refrigerant: R290
• Heat rejection: 7,500 BTU/hr
• Energy use: 6.11 kWh per 100 lbs of ice (90°F air, 70°F water)
• Water use: 16 gal per 100 lbs of ice
• Ambient temperature range: 41°F to 100.4°F
• Water temperature range: 45°F to 90°F
• Water pressure: 20 to 80 psi
• Net weight: 210 lbs
• Shipping weight: 258 lbs
• Exterior: Stainless steel
• Certifications: ETL
• Applicable bins: IB-033, IB-044, IB-085-48 (bin adapter IB-3048B)
• Warranty: 3 years parts and labor on ice maker, 5 years parts on compressor

Please note: this is the ice machine only. The ice storage bin, any bin adapter and Open Kitchen monitoring are sold separately. For indoor use only; install within the 41°F to 100.4°F ambient range.
