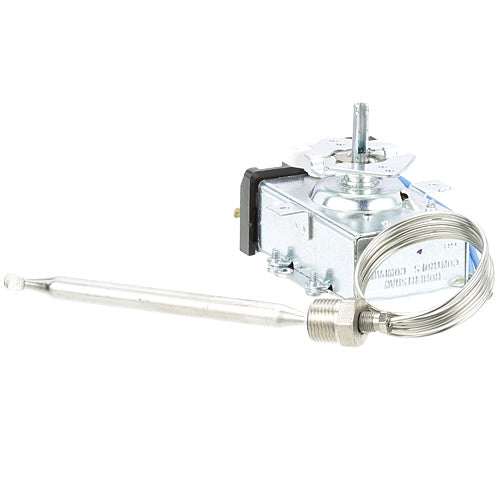

Grindmaster L029A, THERMOSTAT - D1/D18
Grindmaster L029A, THERMOSTAT - D1/D18 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Grindmaster L029A, THERMOSTAT - D1/D18
Description
Description
[ TYPE - D1/D18 ] TEMP 100-250 ] BULB 3/8" X 4-1/2" ];[ CAP 48" ] [ 3/8" MPT STUFF BOX ] [ MOUNT FRONT EARS ];[ PILOT LIGHT #38-1068 ];;***IF DIAL IS NEEDED, YOU CAN USE AP# 221465 (OFF-10-1) OR;AP# 221003 (OFF-250-60). OEM NOW NLA. IF BEZEL NEEDED,;USE AP# 264088***;;D1'D18 T'STAT, DPST FOR AC OPERATION, 4 TERMINAL;USED IN APPLICATIONS REQUIRING HIGH CURRENT.;10 AMP 480V PER POLE RESISTIVE LOAD;21 AMP 480V 2 POLES RESISTIVE LOAD;30 AMP 120/277V PER POLE RESISTIVE LOAD;7.2 FULL LOAD AMP 120-277V & 42 LRA 120-277V;250VA 120-277V (PILOT DUTY)
Specifications
Specifications
| DIMENSIONS | 3" x 7" x 3.5" (W" x D" X H") |
|---|---|
| OEMS | L029AL, L029C, L029F |
| WEIGHT | 1 lb |
