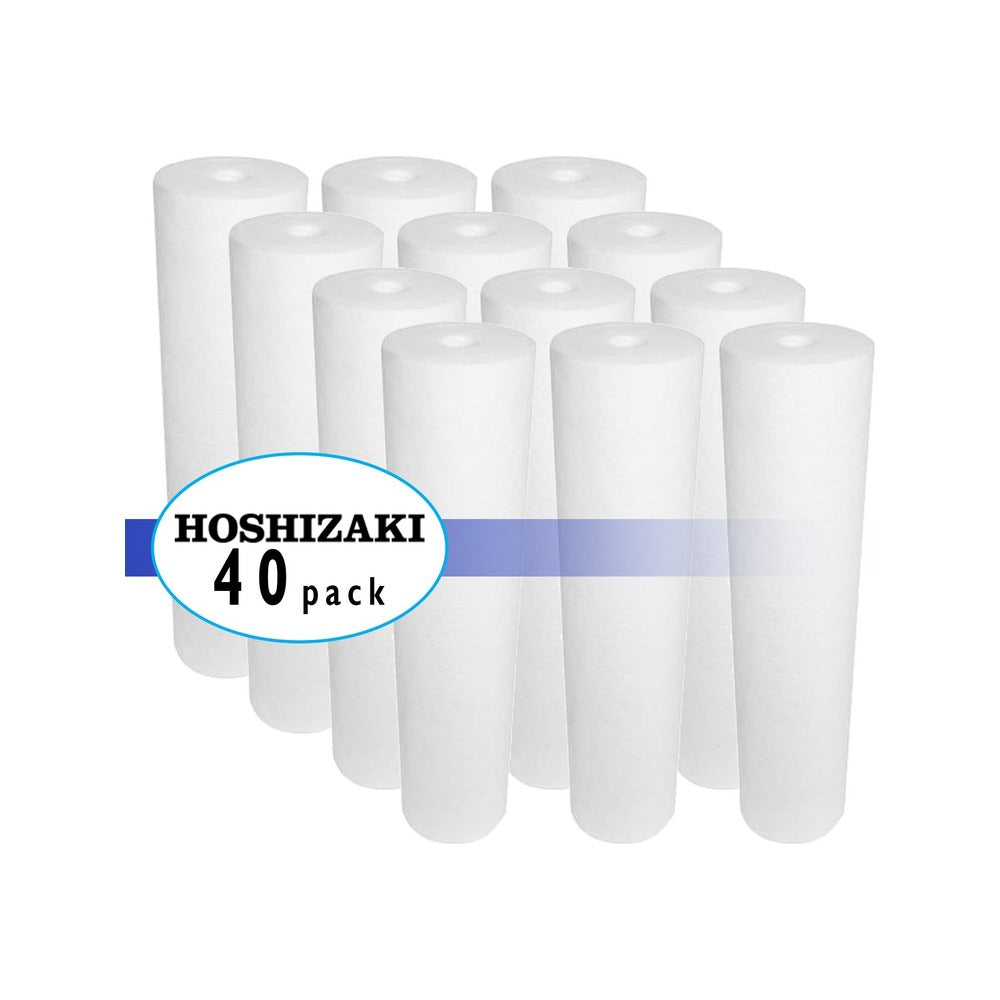

Hoshizaki E-10 Prefilter Cartridge 9534-40, Replacement Cartridge for Hoshizaki E-10 Water Prefilter System (40 Pack)

The Hoshizaki 9534-40 is a 40-pack of E-10 (EC110) sediment cartridges for the Hoshizaki E-10 prefilter housing (9795-80). It is the high-volume option for operators running several single-filter ice machines.

Why Use a Prefilter:

The E-10 prefilter traps larger dirt and rust particles ahead of the main filter. That lets the primary 4HC-H cartridge in an H9320-51 single system last longer and keeps scale-forming debris out of the ice machine.

Specifications:

• Cartridge type: tightly spun EC110 sediment cartridge
• Rating: 10 micron nominal
• Max flow rate: 6 gpm
• Working pressure: 10 to 125 psi
• Water temperature: 35 to 100°F
• Capacity: about 15,000 gallons per cartridge
• Cartridge size: 2-1/2" W x 2-1/2" D x 9-4/5" H
• Shipping weight: 14 lbs

Fits:

Hoshizaki E-10 Prefilter 9795-80, the prefilter recommended for the H9320-51 single system.

Includes:

Forty E-10 replacement cartridges. Also offered as a 12-pack (9534-12).

When to Replace:

About every 15,000 gallons or 6 to 12 months depending on use, or when dirt has worked through to the inner core of the cartridge.

Warranty:

Warranty excludes replaceable elements.
