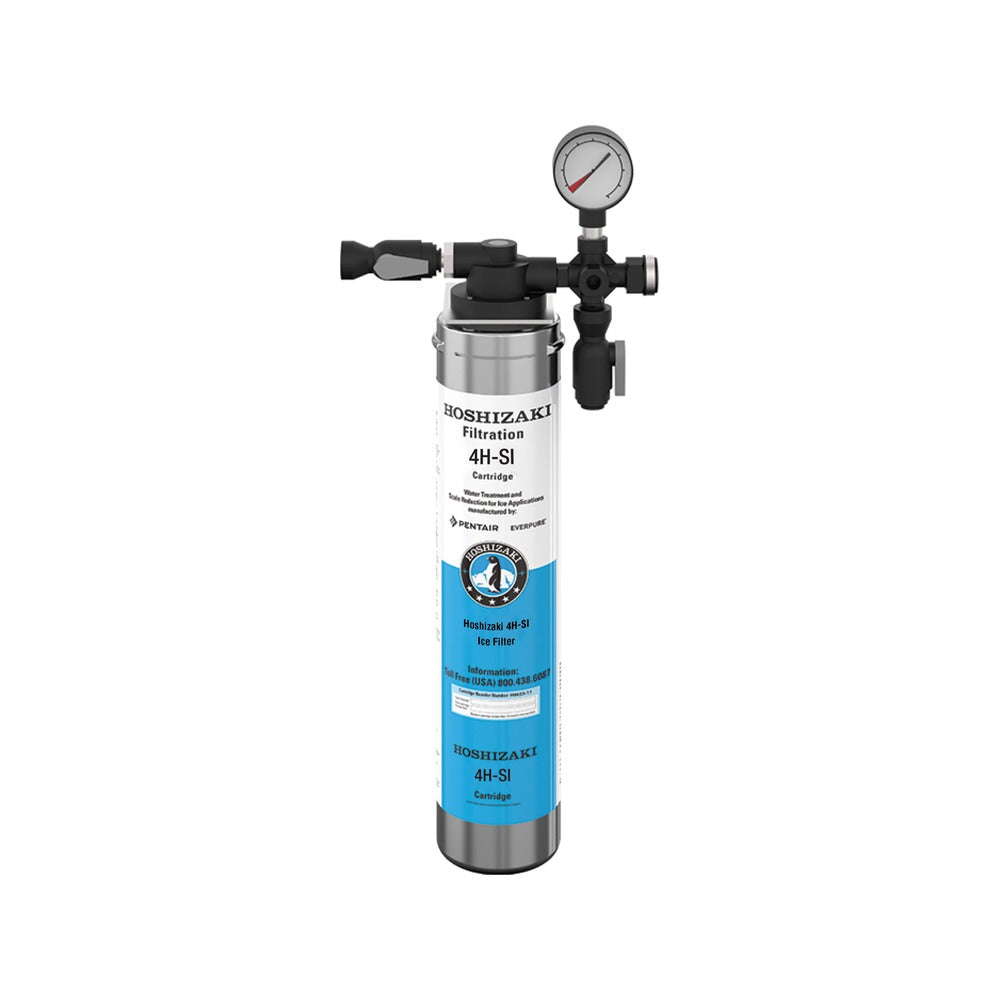

Hoshizaki H9320-54, Single Cartridge Healthcare Water Filter System uses Replacement Cartridge H9655-08 (4H-SI)

The Hoshizaki H9320-54 is a complete single-cartridge water filter system built for ice machines in hospitals, clinics and other healthcare settings. It arrives with the manifold head and a 4H-SI cartridge installed, so it is ready to plumb in.

How It Works:

The 4H-SI cartridge uses depth filtration with Fibredyne media to catch dirt and particles down to 1/2 micron by mechanical means. Unlike standard carbon filters, it leaves chlorine and chloramines in the water on purpose, which helps keep slime and biofilm from building up inside the ice machine and bin.

Features:

• NSF/ANSI Standard 53 certified to reduce cysts such as Cryptosporidium and Giardia
• NSF/ANSI Standard 42 nominal particulate Class I
• Reduces scale buildup that clogs distribution lines and causes probe, float, pump and valve problems
• Sanitary quick-change cartridge; internal filter parts are never handled

Specifications:

• Max flow rate: 2 gpm
• Working pressure: 10 to 125 psi
• Water temperature: 35 to 100°F
• Estimated capacity: 15,000 gallons
• Connections: (2) 3/8" FNPT inlet/outlet
• Dimensions: 7.91" W x 5.25" D x 18.1" H (with manifold and cartridge)
• Shipping weight: 4 lbs

Fits:

Recommended by Hoshizaki for AM-50, C-80, KM-81, KM-116, KM-161, KM-231, KM-301, KM-350, KM-520, KM-660, KML-325, KML-500, KML-700, KMD-410, KMD-460, KMD-530, KMS-830, DKM-500, IM-200 and IM-500 models, plus all Cubelet/Flaker and DCM/DB models.

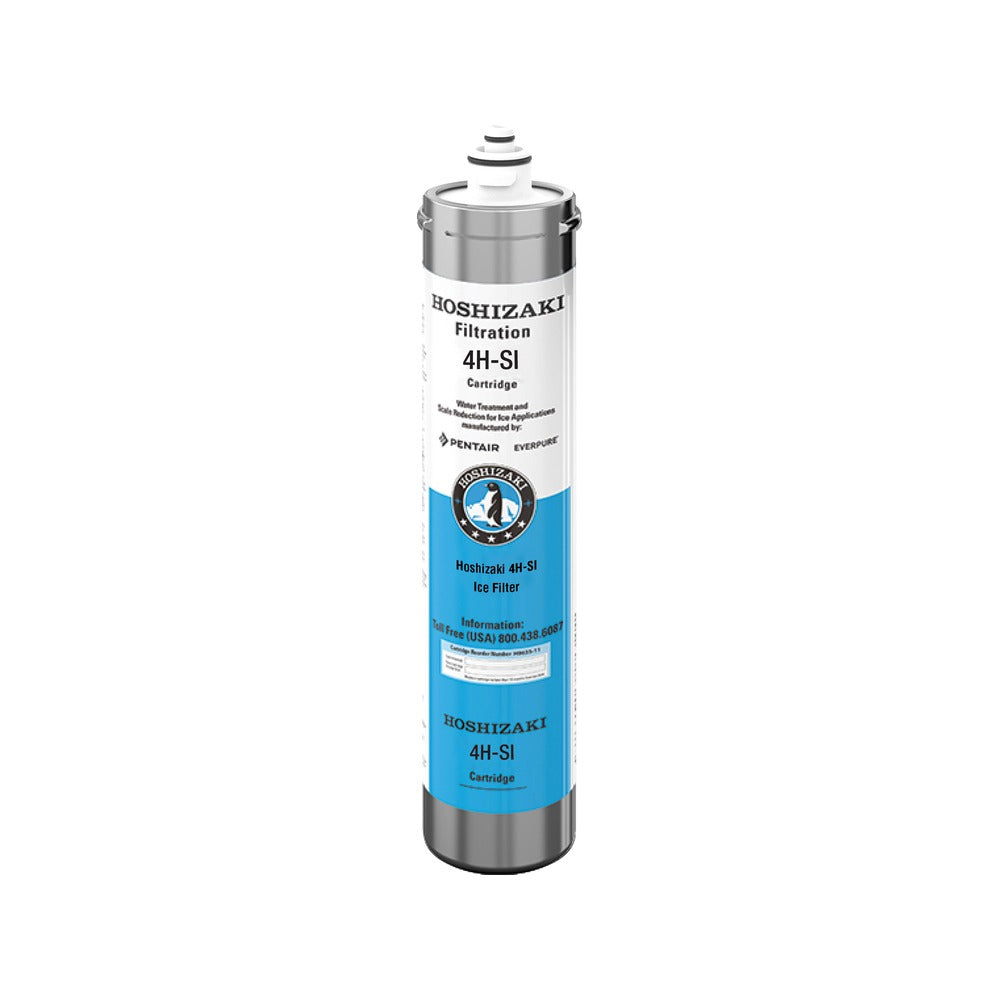

Replacement Cartridge:

H9655-08 (4H-SI), sold separately.

Warranty:

One year on replaceable elements; one year on the entire system (material and workmanship defects).
