Hoshizaki HS-2036, 4" (2) ABS Top Kit for KM on DB-200H
Hoshizaki HS-2036, 4" (2) ABS Top Kit for KM on DB-200H is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Hoshizaki HS-2036, 4" (2) ABS Top Kit for KM on DB-200H
Description
Description
Model Specifics: Pair of 4" ABS top kits · For 22" KM cubers on DB-200H / DM-200B · KM units only
Top Kit Pair for a 22" KM Cuber on a 30" Dispenser:
The HS-2036 packs two 4-inch ABS top kits. Centered on a 30-inch DB-200H hotel ice dispenser or DM-200B, a 22-inch KM cuber leaves 4 inches open on each side; one kit covers each side so the dispenser's ice hopper is sealed.
Hoshizaki lists this pair for KM cubers only. KML models sit on the DB-200H with no top kit, and KMD models need the separate HS-2148 stainless cover instead.
Where It Fits:
- DB-200H or DM-200B with a 22" KM-350M, KM-520M or KM-660M
What's Included:
- Two 4" ABS top kits
Installation Notes:

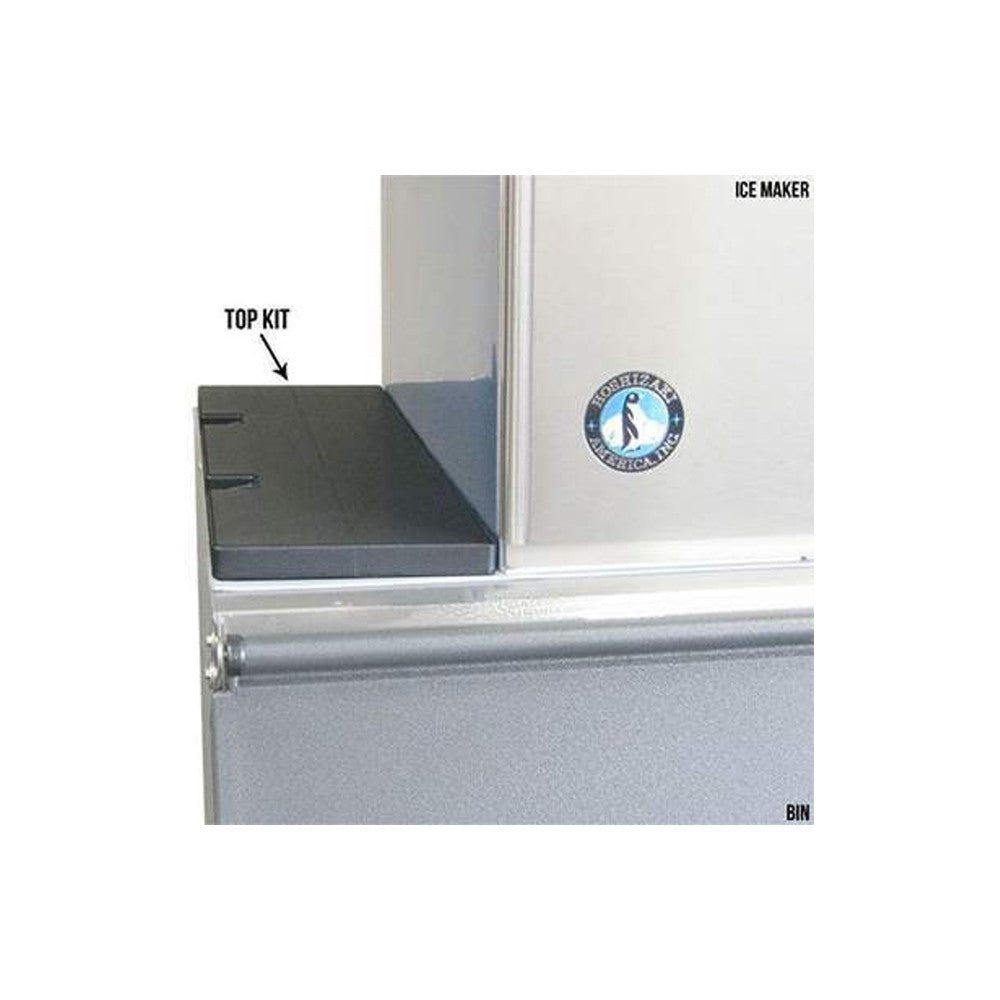

- Center the KM cuber on the dispenser, then seat one top kit in the open space on each side.
- Not for KMD or KML machines (KMD on DB-200H uses HS-2148; KML needs no kit).
- Follow the dispenser and ice machine manuals for leveling and connections. Contact us with your model numbers if you're unsure about fit.
Fit is based on Hoshizaki's Top Kit Matrix (March 2026). Base model numbers are shown; send us your full model number if you want us to confirm fit.
Brand / MPN: Hoshizaki / HS-2036
Specifications
Specifications
| CATEGORY | Adapters |
|---|---|
| DIMENSIONS | 4" W (each, 2 pieces) (W" x D" X H") |
| EQUIPMENT MODELS THIS PART WORKS WITH | Dispensers/bins: DB-200H, DM-200B Ice machines: 22" KM units only (KM-350M, KM-520M, KM-660M) |
| EXTERIOR | ABS |
| INCLUDES | 2 x 4" ABS top kits |
| NOTE | Two 4" ABS fillers; Hoshizaki lists this kit for KM units only |
Spec Sheet (PDF)
