Hoshizaki HS-2132, Top Kit for B-900 Ice Bin
Description
Description
Model Specifics: Top kit extension · For the 52" B-900SF bin · KMD, KMS and FD ice machines
Rear Extension Kit for the 52" B-900SF Bin:
The HS-2132 is the widest of Hoshizaki's SF-bin extension brackets, made for the 52-inch B-900SF. It extends the bin's rear seat so deeper KMD, KMS and FD machines sit fully on the bin with a proper foam seal.
Pair it with the 22-inch HS-2035 under a single 30-inch KMD or KMS, with the 8-inch HS-2033 under two 22-inch KMD-410M or FD units, or with both ABS kits under one 22-inch KMD/KMS/FD model.
Where It Fits:
- B-900SF with a 30" KMD-355M, KMD-505M, KMD-705M, KMD-460M, KMD-530M, KMD-860M, KMS-1402M or KMS-2000M: HS-2132 + HS-2035
- B-900SF with two 22" KMD-410M, FD-650M-C, FD-1002M-C or F-622/822/1022MAK-C units: HS-2132 + HS-2033
- B-900SF with a 22" KMD-410M, KMS-822M or FD/F-MAK-C model: HS-2132 + HS-2035 + HS-2033
- Not for KMS-1122MLJ
What's Included:
- 1 extension bracket for 52" wide bins (Hoshizaki part 3A4932G01)
- 5 self-tapping hex head screws (#12 x 3/4")
- 2 strips of foam tape (1321 mm length)
- 2 mounting brackets
- 2 stainless steel hex head bolts (5 x 12 mm)
Installation Notes:

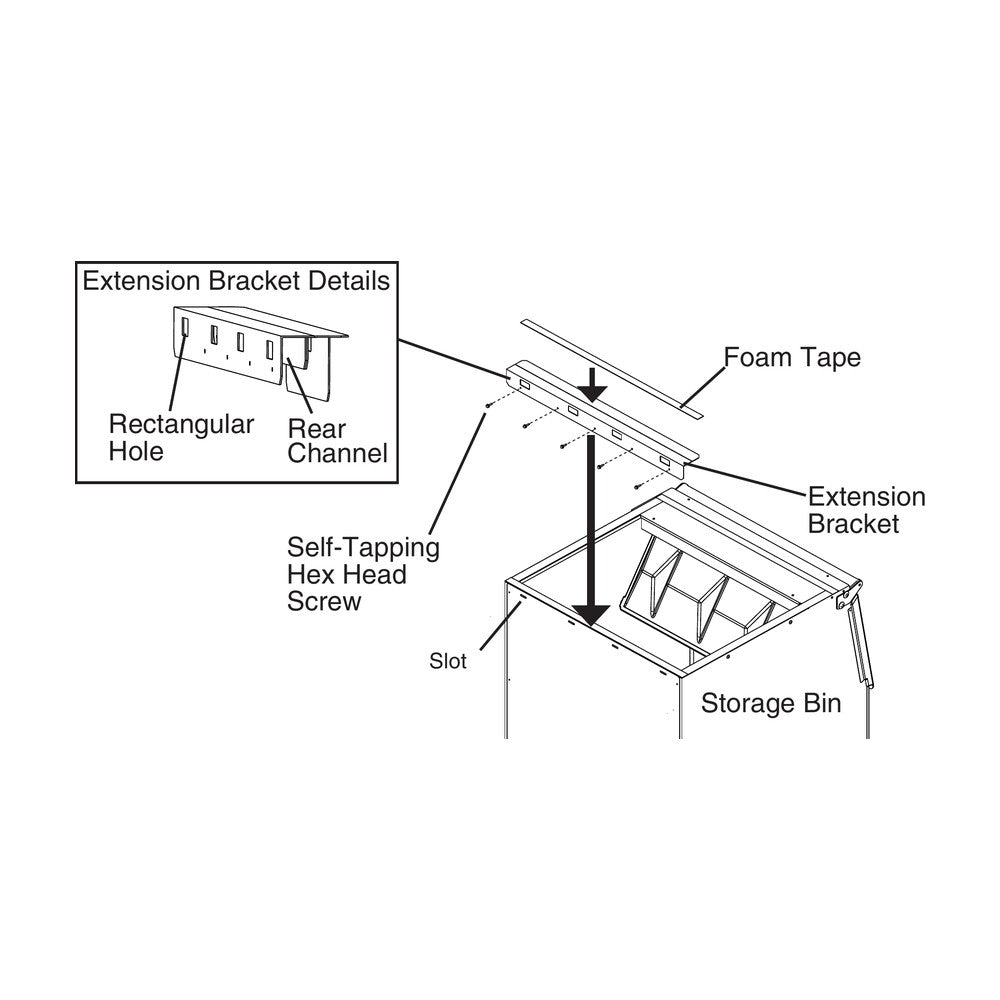

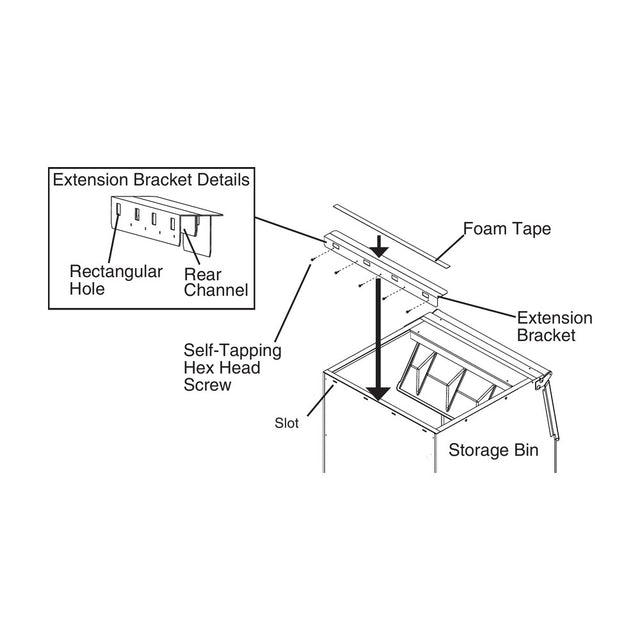

- The bracket fits over the rear of the bin and is fastened with the self-tapping screws through the bin's slots.
- Foam tape goes on top of the bracket and across the front of the bin top so the ice machine seals to the bin; Hoshizaki gives a trim measurement for KMD and KMS units.

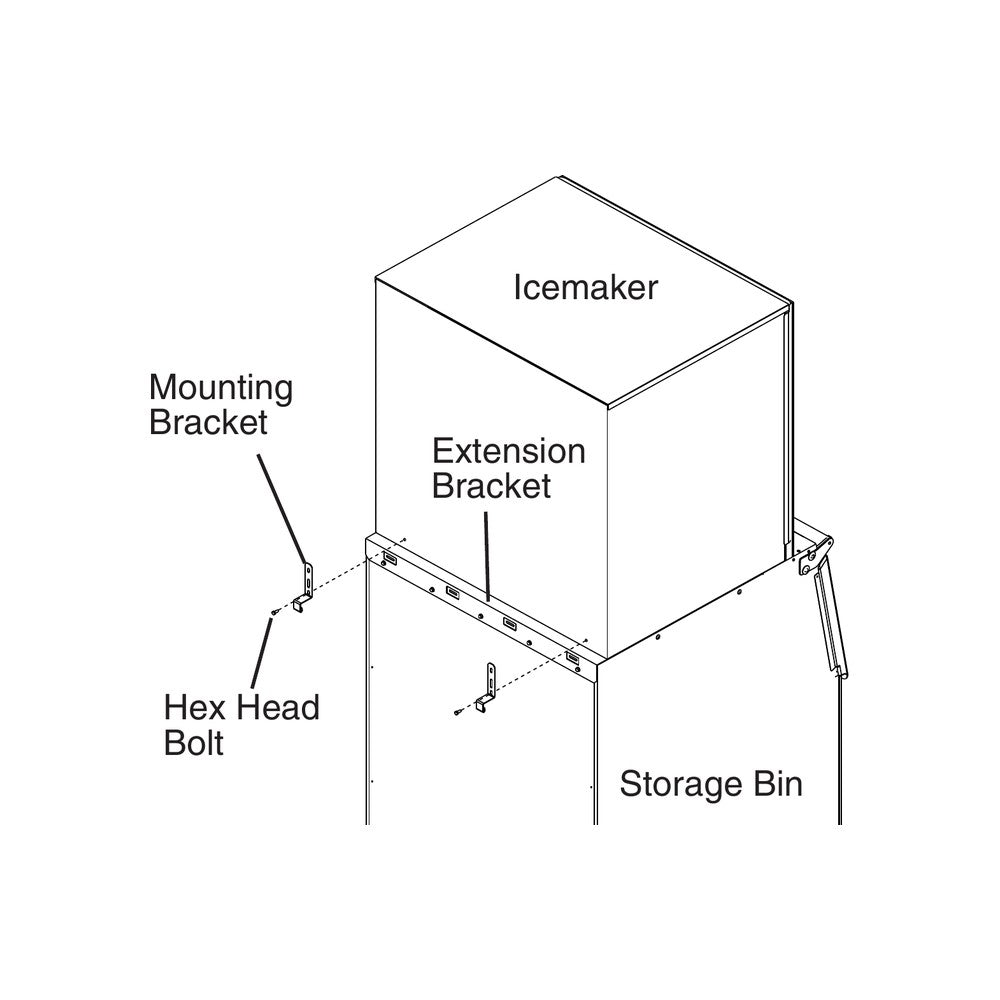

- After the ice machine is set in place, lock it to the bin with the two mounting brackets and stainless bolts, then level the bin legs.
- Remove the ice machine's panels before lifting it into place to avoid damage.
- Air-cooled KMD-460MAJ and KMD-530MAJ also require Hoshizaki's HS-5065 front panel filter kit.
Hoshizaki installation instructions: download PDF
Fit is based on Hoshizaki's Top Kit Matrix (March 2026). Base model numbers are shown; send us your full model number if you want us to confirm fit.
Brand / MPN: Hoshizaki / HS-2132
Specifications
Specifications
| CATEGORY | Adapters |
|---|---|
| EQUIPMENT MODELS THIS PART DOESNT WORK WITH | KMS-1122MLJ |
| EQUIPMENT MODELS THIS PART WORKS WITH | Bins: B-900SF (52" wide) Ice machines: 30" KMD/KMS units with HS-2035 (KMD-355M, KMD-505M, KMD-705M, KMD-460M, KMD-530M, KMD-860M, KMS-1402M, KMS-2000M); 2 x 22" KMD/FD units with HS-2033 (2 x KMD-410M, 2 x FD-650M-C / FD-1002M-C, 2 x F-622MAK-C / F-822MAK-C / F-1022MAK-C); 22" KMD/KMS/FD units with HS-2035 + HS-2033 (KMD-410M, KMS-822M, FD-650M-C, FD-1002M-C, F-622MAK-C, F-822MAK-C, F-1022MAK-C) |
| INCLUDES | Extension bracket 3A4932G01, 5 self-tapping screws, 2 foam tape strips (1321 mm), 2 mounting brackets, 2 SS hex bolts |
| NOTE | Rear extension for deeper KMS, KMD and FD machines on 52" wide bins |
Spec Sheet (PDF)
