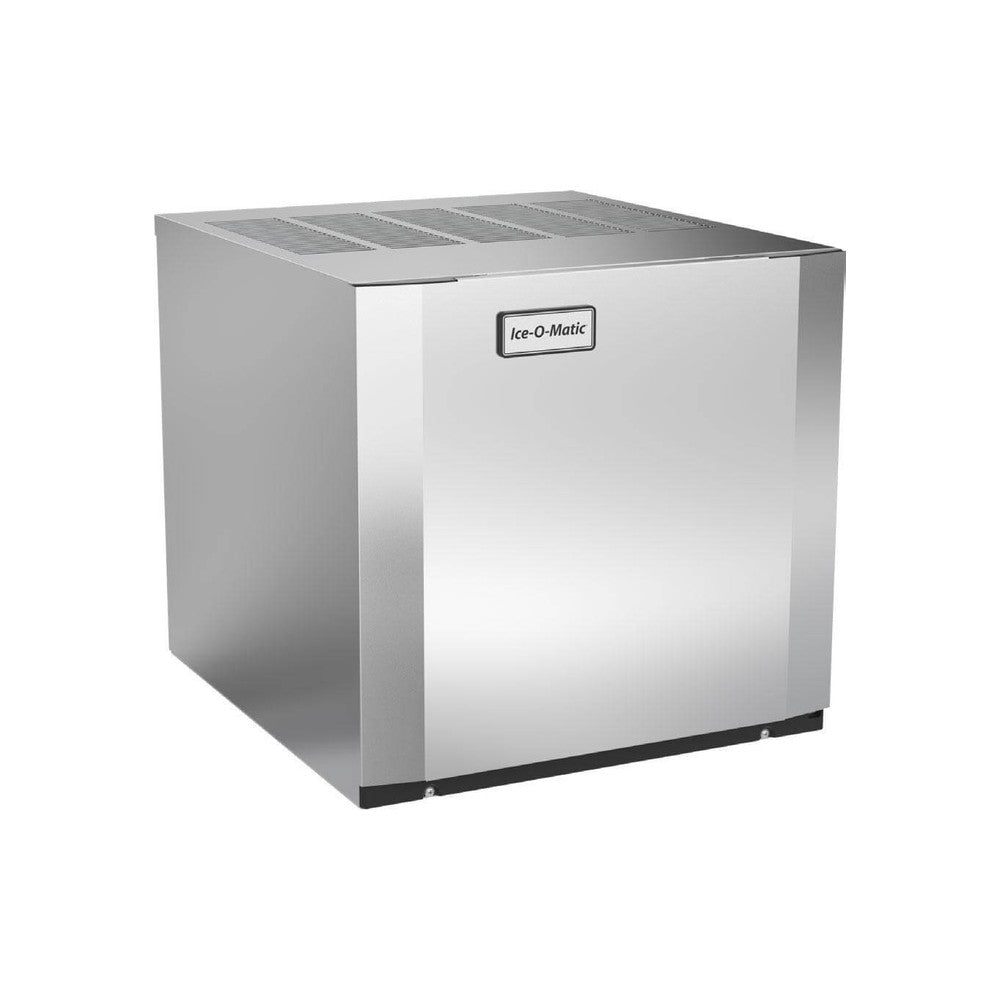

Ice-O-Matic CIM0320HA90, 22" Air Cooled Half Cube Modular Ice Machine Head, 325 Lb

Model specifics: up to 325 lbs per 24 hours · 22" wide · half cube ice · air-cooled · 115V single phase

The Ice-O-Matic CIM0320HA90 is a 22-inch modular cube ice machine head that makes up to 325 pounds of half cube ice a day. Its 22-inch-wide cabinet fits narrow back-of-house spaces and stacks on 22-inch bins or compatible dispensers.

Half cubes (about 3/8" x 7/8" x 7/8") pack tightly in the glass, displace more liquid and cool drinks fast, a favorite for fountain and blended drinks.

This is the air-cooled version: the condenser uses room air, so no condenser water is needed. Keep proper clearance around the air intake and exhaust.

As part of the Elevation Series, it has a front-facing evaporator and dishwasher-safe components for easy cleaning, Harvest Assist for consistent production, and electroless nickel-plated evaporator plates. It uses R290 refrigerant.

Ice bin sold separately: this is an ice machine head only, with no storage. Pair it with a 22-inch Ice-O-Matic ice storage bin (or a compatible dispenser with the proper adapter kit) sized to your daily usage. Matching Ice-O-Matic bins: the 22" B42 (351 lb) mounts directly with no kit; the 30" B40 (344 lb) or B55 (510 lb) need the KBT19 bin top kit.

Specifications

• Model: CIM0320HA90
• Ice type: Half Cube
• Ice production: up to 325 lbs / 24 hr
• Dimensions (W x D x H): 22.25" x 24.25" x 21.25"
• Electrical: 115V, single phase, 11.4 amps
• Condenser: Air-cooled
• Refrigerant: R290
• Exterior: Stainless Steel
• Required bin width: 22"
• Shipping weight: 125 lbs
• Warranty: Ice maker: 3 years parts and labor; evaporator and compressor: 5 years parts; evaporator: 7 years parts and labor when enrolled in the Ice-O-Matic filter program

Ice-O-Matic recommends water filtration on all ice machines; bins, filters and adapter kits are sold separately.
