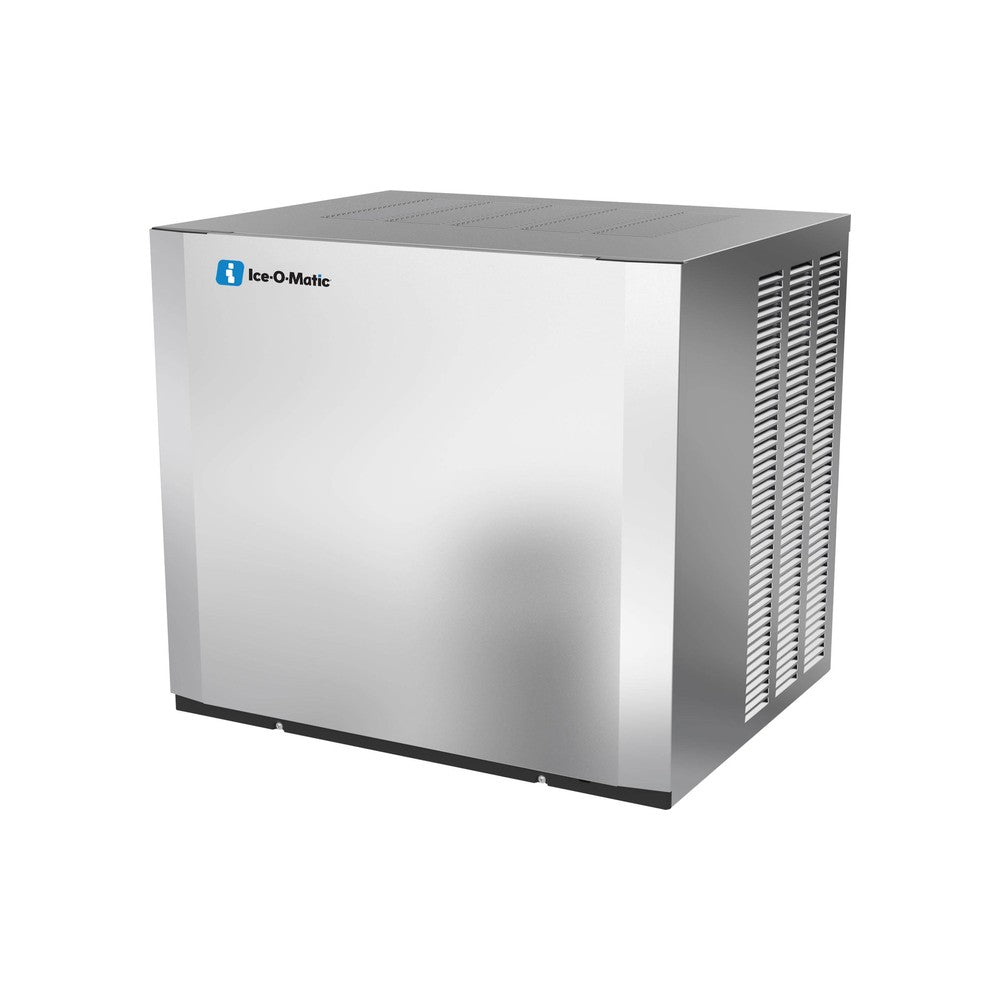

Ice-O-Matic CIM0836HA90, 30" Air Cooled Half Cube Modular Ice Machine Head, 900 Lb

Model specifics: up to 900 lbs per 24 hours · 30" wide · half cube ice · air-cooled · 208-230V single phase

The Ice-O-Matic CIM0836HA90 is a 30-inch modular cube ice machine head that makes up to 900 pounds of half cube ice a day. The 30-inch-wide cabinet is the most common modular footprint and sits on 30-inch bins or compatible dispensers.

Half cubes (about 3/8" x 7/8" x 7/8") pack tightly in the glass, displace more liquid and cool drinks fast, a favorite for fountain and blended drinks.

This is the air-cooled version: the condenser uses room air, so no condenser water is needed. Keep proper clearance around the air intake and exhaust.

As part of the Elevation Series, it has a front-facing evaporator and dishwasher-safe components for easy cleaning, Harvest Assist for consistent production, and electroless nickel-plated evaporator plates. It uses R290 refrigerant.

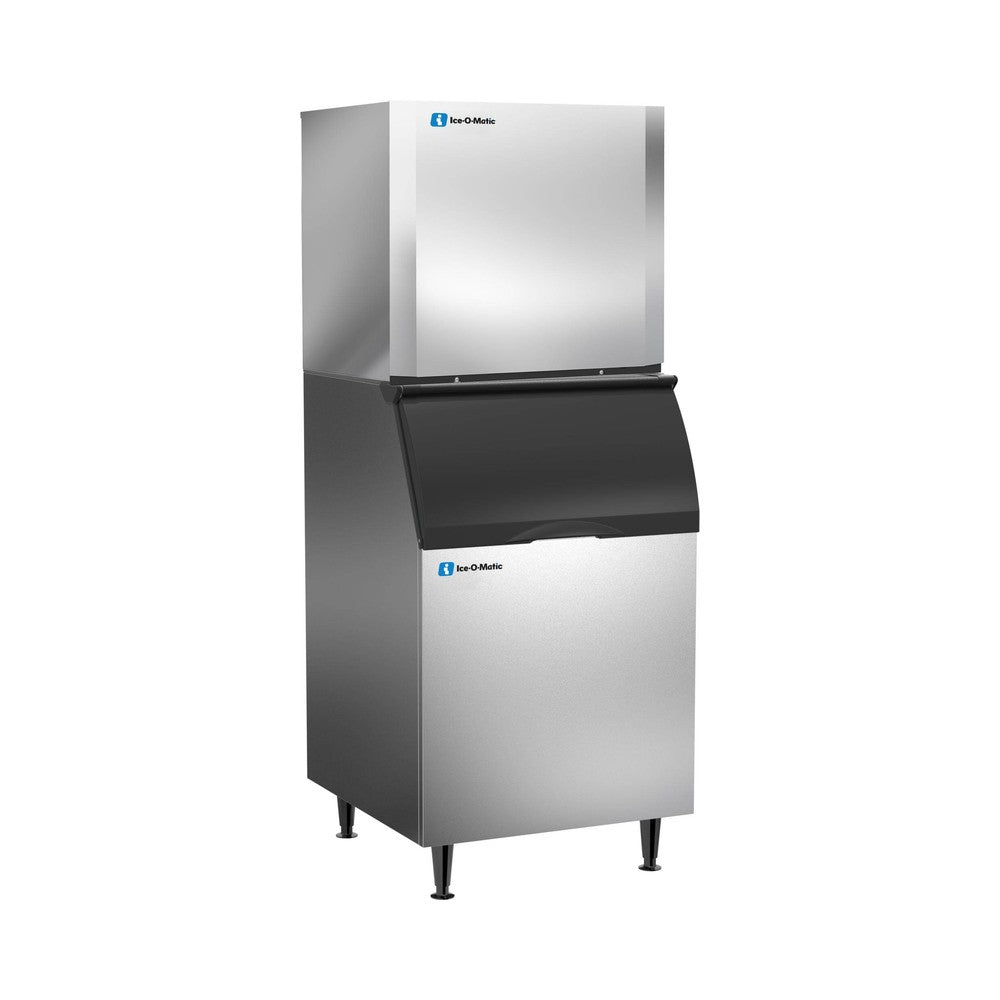

Ice bin sold separately: this is an ice machine head only, with no storage. Pair it with a 30-inch Ice-O-Matic ice storage bin (or a compatible dispenser with the proper adapter kit) sized to your daily usage. Matching Ice-O-Matic bins: the 30" B40 (344 lb) or B55 (510 lb) mount directly with no kit; the 48" B110 (854 lb) needs the BPF-1 filler panel kit. The 22" B42 is not compatible.

Specifications

• Model: CIM0836HA90
• Ice type: Half Cube
• Ice production: up to 900 lbs / 24 hr
• Dimensions (W x D x H): 30.25" x 24.6" x 26.8"
• Electrical: 208-230V, single phase, 12.3 amps
• Condenser: Air-cooled
• Refrigerant: R290
• Exterior: Stainless Steel
• Required bin width: 30"
• Shipping weight: 212 lbs
• Warranty: Ice maker: 3 years parts and labor; evaporator and compressor: 5 years parts; evaporator: 7 years parts and labor when enrolled in the Ice-O-Matic filter program

Ice-O-Matic recommends water filtration on all ice machines; bins, filters and adapter kits are sold separately.
