Ice-O-Matic CIM1446HA49, 48" Air Cooled Half Cube Modular Ice Machine Head, 1,600 Lb

Model specifics: up to 1,600 lbs per 24 hours · 48" wide · half cube ice · air-cooled · 208-230V single phase

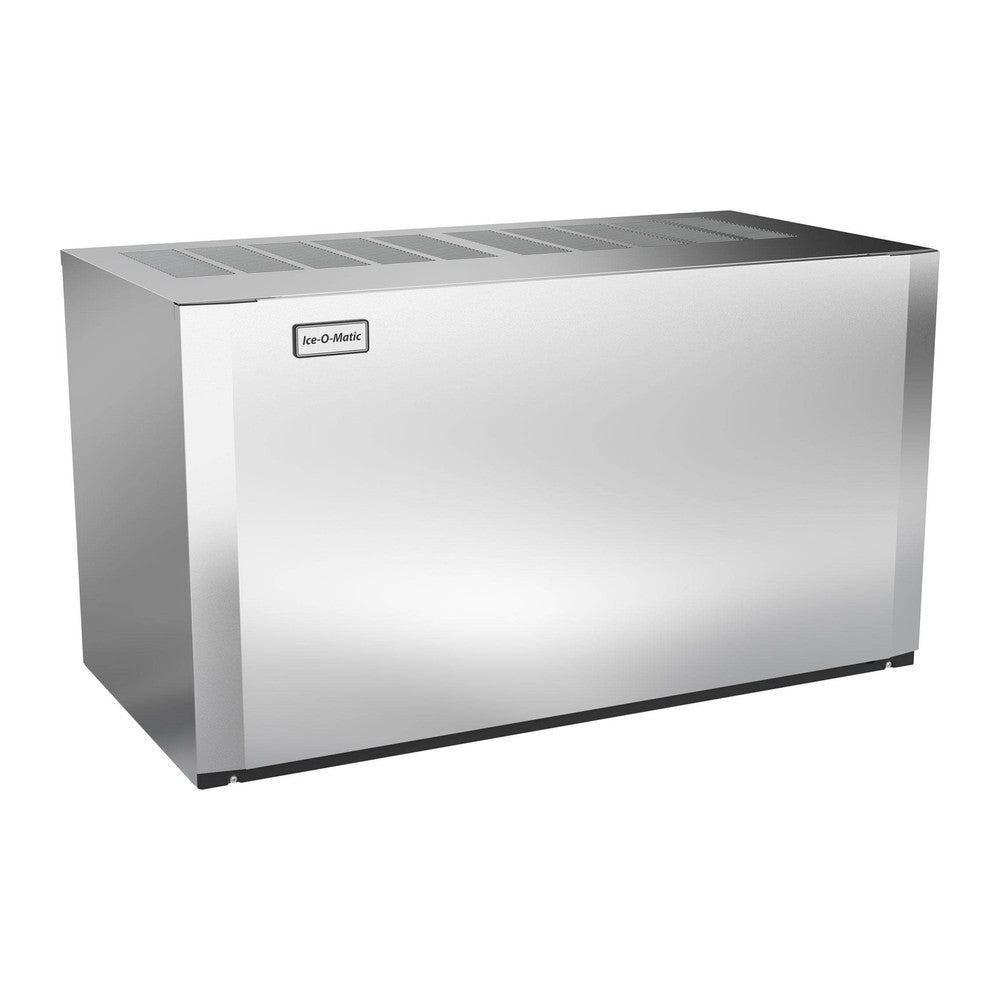

The Ice-O-Matic CIM1446HA49 is a 48-inch modular cube ice machine head that makes up to 1,600 pounds of half cube ice a day. Its 48-inch-wide cabinet is built for high-volume operations such as hotels, hospitals, stadiums and large restaurants, and sits on a 48-inch bin.

Half cubes (about 3/8" x 7/8" x 7/8") pack tightly in the glass, displace more liquid and cool drinks fast, a favorite for fountain and blended drinks.

This is the air-cooled version: the condenser uses room air, so no condenser water is needed. Keep proper clearance around the air intake and exhaust.

As part of the Elevation Series, it has a front-facing evaporator and dishwasher-safe components for easy cleaning, Harvest Assist for consistent production, and electroless nickel-plated evaporator plates.

Ice bin sold separately: this is an ice machine head only, with no storage. Pair it with a 48-inch Ice-O-Matic ice storage bin (or a compatible dispenser with the proper adapter kit) sized to your daily usage. Matching Ice-O-Matic bin: the 48" B110 (854 lb) mounts directly with no kit.

Specifications

• Model: CIM1446HA49
• Ice type: Half Cube
• Ice production: up to 1,600 lbs / 24 hr
• Dimensions (W x D x H): 48.25" x 24.25" x 26.8"
• Electrical: 208-230V, single phase, 18.9 amps
• Condenser: Air-cooled
• Exterior: Stainless Steel
• Required bin width: 48"
• Shipping weight: 318 lbs
• Warranty: Ice maker: 3 years parts and labor; evaporator and compressor: 5 years parts; evaporator: 7 years parts and labor when enrolled in the Ice-O-Matic filter program

Ice-O-Matic recommends water filtration on all ice machines; bins, filters and adapter kits are sold separately.
