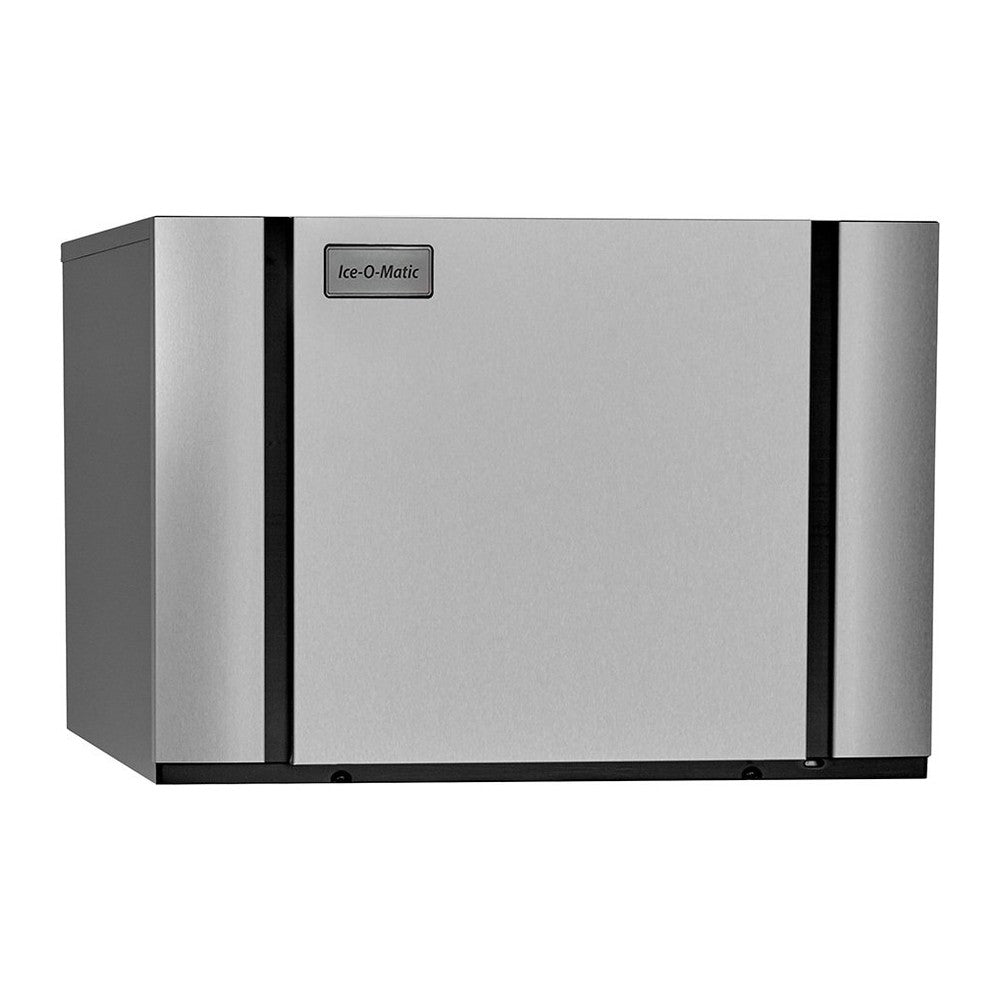

Ice-O-Matic CIM1447FA, 48" Air Cooled Full Cube Modular Ice Machine Head, 1,560 Lb, 3-Phase

Model specifics: up to 1,560 lbs per 24 hours · 48" wide · full cube ice · air-cooled · 208-230V three phase

The Ice-O-Matic CIM1447FA is a 48-inch modular cube ice machine head that makes up to 1,560 pounds of full cube ice a day. Its 48-inch-wide cabinet is built for high-volume operations such as hotels, hospitals, stadiums and large restaurants, and sits on a 48-inch bin.

Full cubes (about 7/8" x 7/8" x 7/8") melt slowly and are the classic choice for bars, restaurants and mixed drinks.

This is the air-cooled version: the condenser uses room air, so no condenser water is needed. Keep proper clearance around the air intake and exhaust.

It uses a front-facing evaporator for easy cleaning and service, durable nickel-plated evaporator plates, and R404A refrigerant.

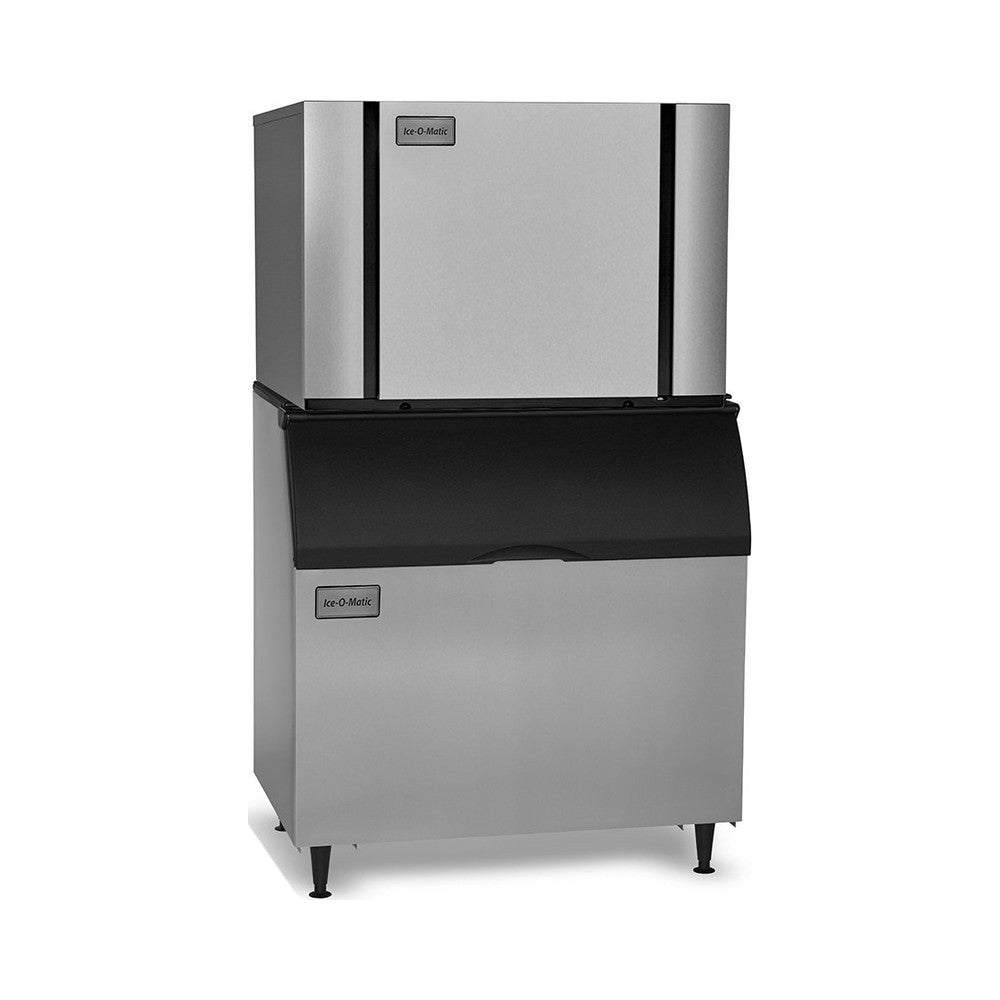

Ice bin sold separately: this is an ice machine head only, with no storage. Pair it with a 48-inch Ice-O-Matic ice storage bin (or a compatible dispenser with the proper adapter kit) sized to your daily usage. Matching Ice-O-Matic bin: the 48" B110 (854 lb) mounts directly with no kit.

Specifications

• Model: CIM1447FA
• Ice type: Full Cube
• Ice production: up to 1,560 lbs / 24 hr
• Dimensions (W x D x H): 48.25" x 24.25" x 26"
• Electrical: 208-230V, three phase, 26.1 amps
• Condenser: Air-cooled
• Refrigerant: R404A
• Exterior: Stainless Steel
• Required bin width: 48"
• Shipping weight: 310 lbs
• Warranty: Three years parts and labor; five years parts on the evaporator and compressor; seven years parts and labor on the evaporator when an Ice-O-Matic water filter is purchased with the ice maker and replaced every six months (U.S. and Canada)

Ice-O-Matic recommends water filtration on all ice machines; bins, filters and adapter kits are sold separately.
