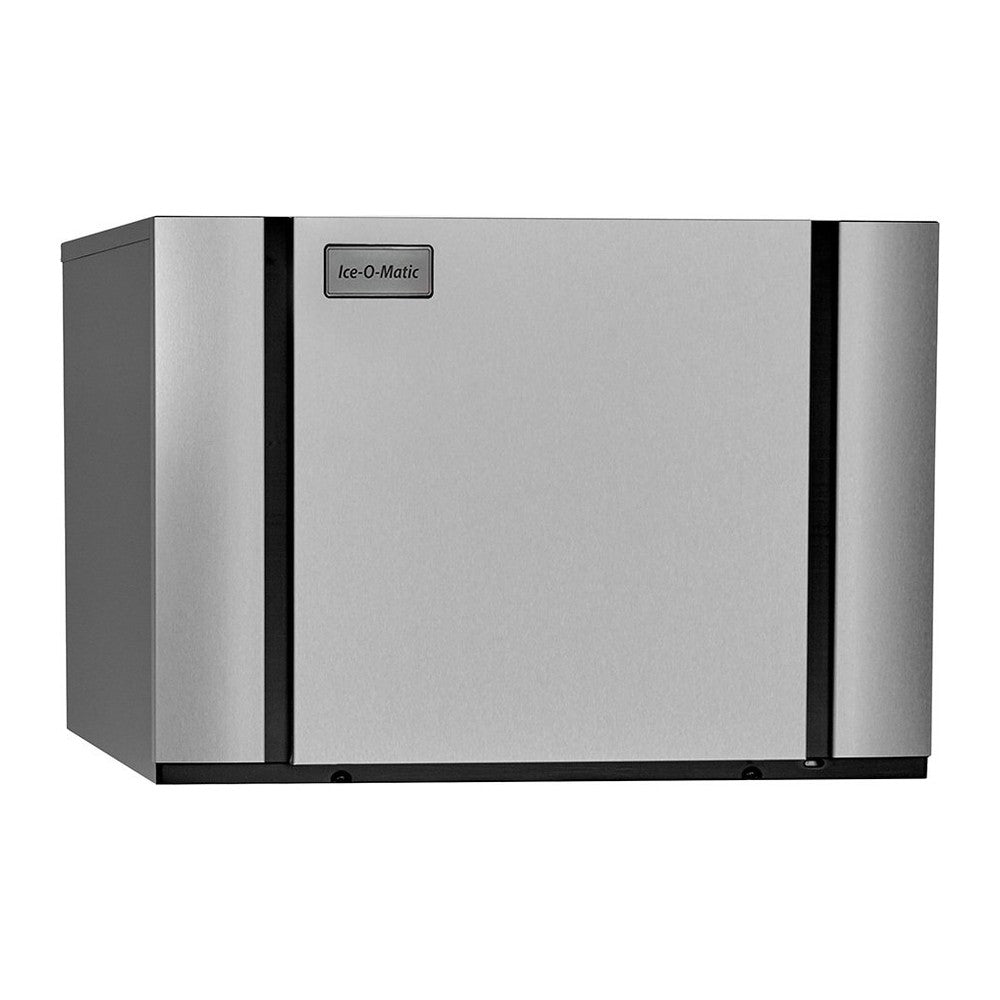

Ice-O-Matic CIM2047HW, 48" Water Cooled Half Cube Modular Ice Machine Head, 1,860 Lb, 3-Phase

Model specifics: up to 1,860 lbs per 24 hours · 48" wide · half cube ice · water-cooled · 208-230V three phase

The Ice-O-Matic CIM2047HW is a 48-inch modular cube ice machine head that makes up to 1,860 pounds of half cube ice a day. Its 48-inch-wide cabinet is built for high-volume operations such as hotels, hospitals, stadiums and large restaurants, and sits on a 48-inch bin.

Half cubes (about 3/8" x 7/8" x 7/8") pack tightly in the glass, displace more liquid and cool drinks fast, a favorite for fountain and blended drinks.

This is the water-cooled version: the condenser uses water instead of room air, keeping heat out of the room and holding production steady in hot or tight spaces. It needs a condenser water supply and drain.

It uses a front-facing evaporator for easy cleaning and service, durable nickel-plated evaporator plates, and R404A refrigerant.

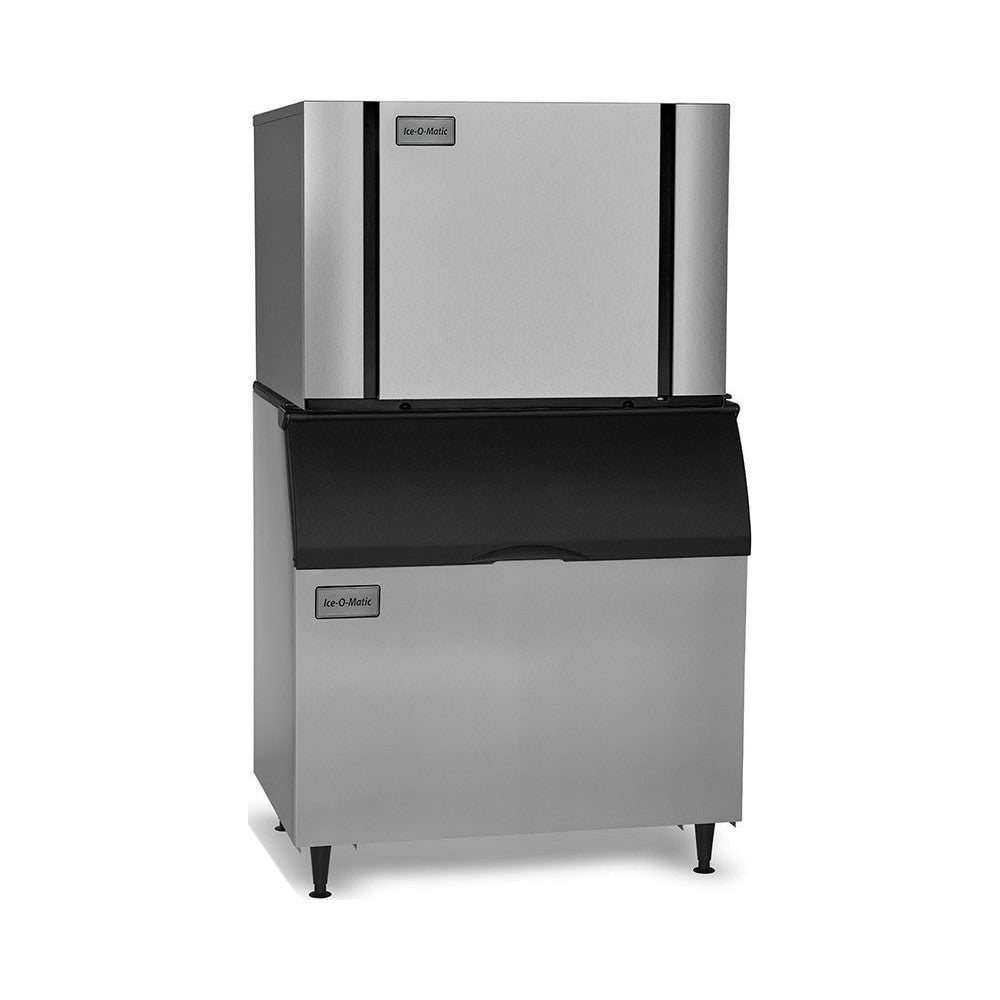

Ice bin sold separately: this is an ice machine head only, with no storage. Pair it with a 48-inch Ice-O-Matic ice storage bin (or a compatible dispenser with the proper adapter kit) sized to your daily usage. Matching Ice-O-Matic bin: the 48" B110 (854 lb) mounts directly with no kit.

Specifications

• Model: CIM2047HW
• Ice type: Half Cube
• Ice production: up to 1,860 lbs / 24 hr
• Dimensions (W x D x H): 48.25" x 24.25" x 26"
• Electrical: 208-230V, three phase, 24 amps
• Condenser: Water-cooled
• Refrigerant: R404A
• Exterior: Stainless Steel
• Required bin width: 48"
• Shipping weight: 335 lbs
• Warranty: Three years parts and labor; five years parts on the evaporator and compressor; seven years parts and labor on the evaporator when an Ice-O-Matic water filter is purchased with the ice maker and replaced every six months (U.S. and Canada)

Ice-O-Matic recommends water filtration on all ice machines; bins, filters and adapter kits are sold separately.
