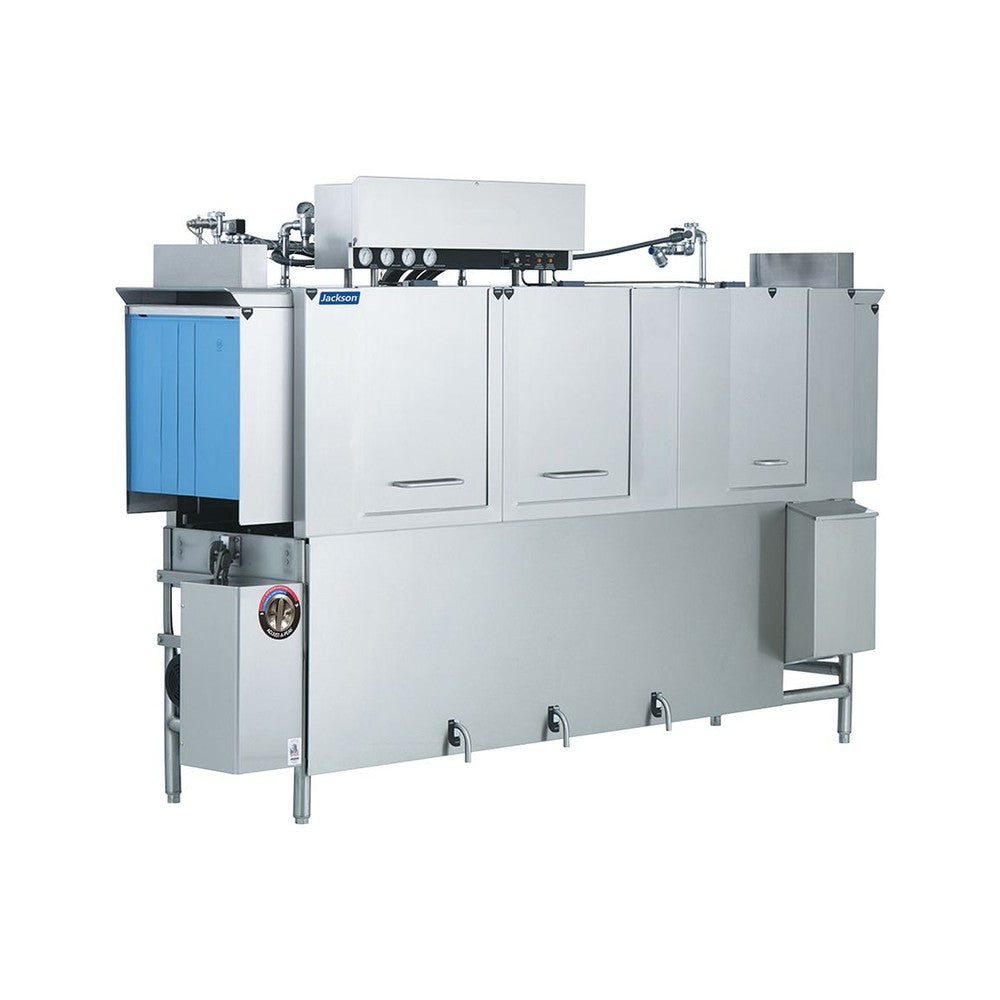

Jackson AJ-100CS 116" Hi-Temp Conveyor Dishwasher w/ Pre-Wash, Steam, 287 Racks/Hr

The AJ-100CS is the steam-heated 116-inch AJ conveyor. It offers the line's longest wash path for institutions that can tap house steam to heat the tanks.

Best for:

• Large institutions with steam service
• Campus, hospital and correctional food service
• Round-the-clock dish rooms

Key specifications:

• Model: AJ-100CS
• Sanitizing: High temperature (180°F final rinse)
• Capacity: up to 287 racks per hour
• Water use: 0.77 gal per rack
• Booster heater: not included
• Tank heat: steam
• Feed direction: right to left
• Pre-wash: yes
• Electrical: 230V, single phase
• Overall size: 116" W x 25" D x 75-1/2" H
• Shipping weight: 1150 lb
• Listings: NSF, ETL

Features:

• Self-draining stainless steel pre-wash, wash and rinse pumps
• Incoming water pressure regulator
• Adjust-A-Peak conveyor speed control for heavy-soil days
• 25" clearance for large utensils, trays and bun pans
• All electromechanical controls with no circuit boards
• Automatic fill
• EnergyGuard powers the wash and rinse sections only while a rack is present
• Externally operated lever drains
• Stainless steel frame, legs, adjustable bullet feet and front panel
• 8" vent cowls and splash shields on both ends

Installation notes:

• Steam tank heat: needs a steam supply and condensate return at the pressure on the spec sheet
• The 180°F final rinse needs a booster heater (not built in)
• This listing is right-to-left; confirm direction, voltage and table layout when ordering

Shipping:

• Free freight shipping
• Ships by LTL freight truck on a pallet, about 1150 lb
• Liftgate delivery available at checkout for $85
• Residential delivery adds a $90 fee

Warranty:

• 1 year parts and labor warranty from Jackson
