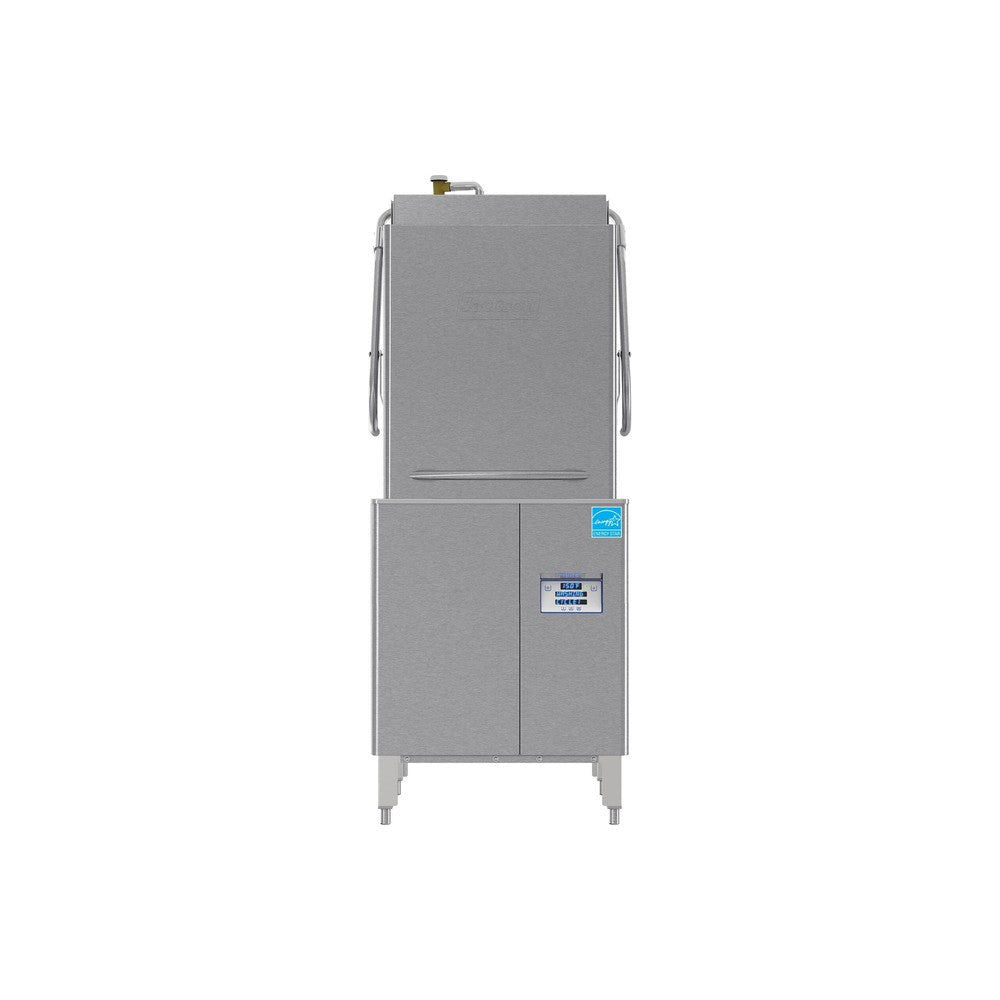

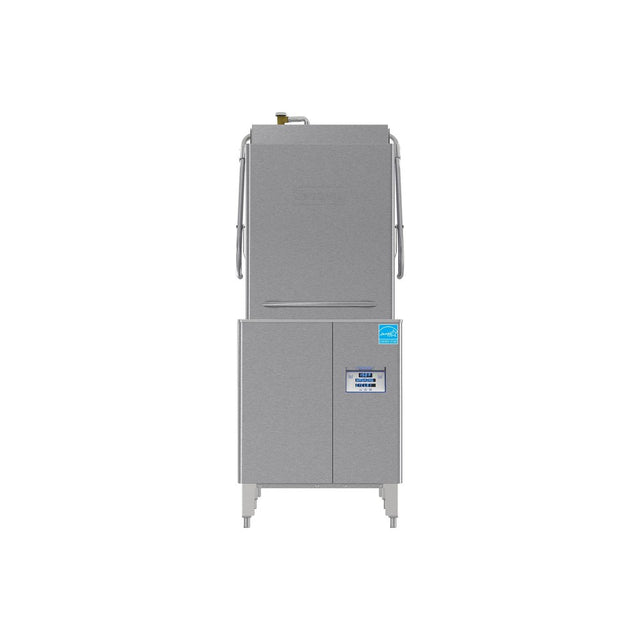

Jackson Dynastar HH-E w/o High-Hood Dishwasher, No Booster, 62 Racks/Hr

The Dynastar HH-E w/o is the high-hood Dynastar without an on-board booster. It is for dish rooms that already have 180°F rinse water and want the 27-inch chamber for sheet pans and pots.

Best for:

• Sites with an existing booster
• Bakeries and kitchens washing pans
• Replacing a high-hood machine

Key specifications:

• Model: Dynastar HH-E w/o
• Sanitizing: High temperature (180°F final rinse)
• Capacity: up to 62 racks per hour
• Water use: 0.72 gal per rack
• Booster heater: not included
• Tank heat: electric
• Electrical: 230V, three phase
• Overall size: 30-1/2" W x 30" D x 71-1/2" H
• Shipping weight: 366 lb
• Listings: ETL, Energy Star

Features:

• 27" vertical chamber clearance for sheet pans and pots
• Dual certified as a dishwasher and a pot washer at every cycle
• Three timed cycles: 58, 108 and 238 seconds
• Pumped rinse for steady rinse pressure
• Econo and Turbo rinse settings
• Triple wash arms with stainless steel nozzles
• Interchangeable upper and lower wash/rinse arms
• Automatic fill
• Takes standard 20" x 20" racks
• Field convertible between three and single phase, and between straight-through and corner (kits required)
• Vent fan control shuts off the hood fan when idle

Installation notes:

• Needs 180°F final rinse water from an external booster
• 230V three phase as listed
• Check overhead clearance with the hood raised

Shipping:

• Free freight shipping
• Ships by LTL freight truck on a pallet, about 366 lb
• Liftgate delivery available at checkout for $85
• Residential delivery adds a $90 fee

Warranty:

• 1 year parts and labor warranty from Jackson
