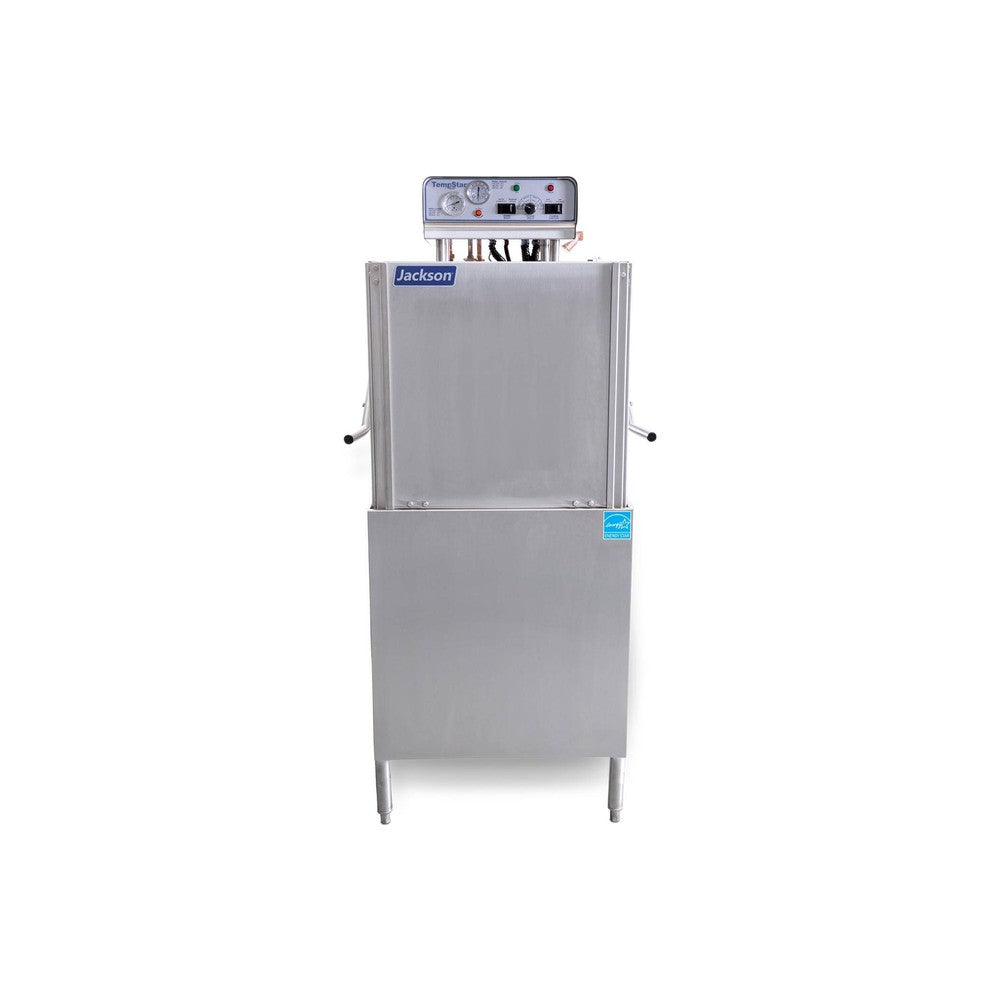

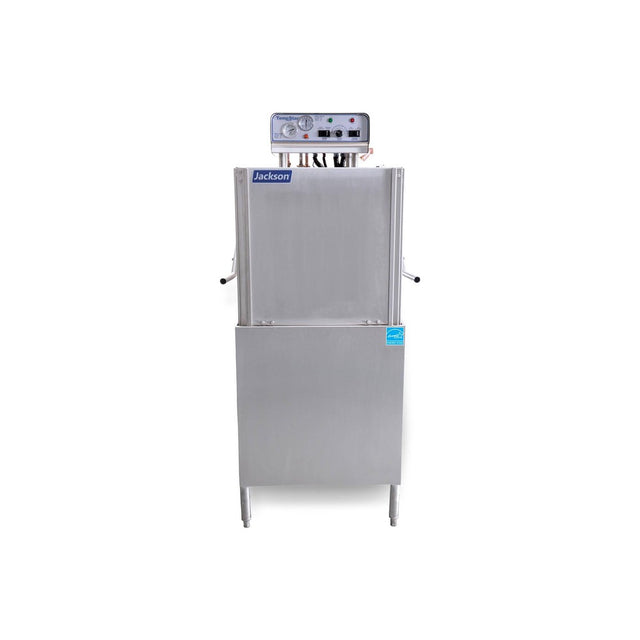

Jackson Tempstar High-Temp Door-Type Dishwasher w/ Booster, 63 Racks/Hr

The Tempstar is Jackson's popular high-temperature door machine with a 70°F rise booster built in. Sani-Sure holds the final rinse until the water is hot enough, so every rack is heat sanitized.

Best for:

• Full-service restaurants and hotels
• Kitchens switching from chemicals to heat sanitizing
• Corner or straight-through dish rooms

Key specifications:

• Model: Tempstar
• Sanitizing: High temperature (180°F final rinse)
• Capacity: up to 63 racks per hour
• Water use: 0.89 gal per rack
• Booster heater: built in
• Tank heat: electric
• Electrical: 230V, single phase
• Overall size: 32" W x 29" D x 64.4" H
• Shipping weight: 263 lb
• Listings: ETL, Energy Star

Features:

• Built-in 70°F rise booster with Sani-Sure final rinse
• Four timed cycles: Normal, Medium, Heavy and Extra Heavy
• Automatic fill
• Stainless steel spray nozzles
• Top-mounted controls
• Screw-out, interchangeable wash/rinse arms
• Delime/manual wash mode
• Vent fan control turns the hood fan off when the machine is idle
• Takes 18" trays
• 1 HP self-draining stainless steel wash pump
• Large scrap basket and single point utility connection

Installation notes:

• 230V single phase as listed; size the circuit from the spec sheet
• 110°F minimum incoming water for the 70°F rise booster
• Install under a vent hood or per local code

Shipping:

• Free freight shipping
• Ships by LTL freight truck on a pallet, about 263 lb
• Liftgate delivery available at checkout for $85
• Residential delivery adds a $90 fee

Warranty:

• 1 year parts and labor warranty from Jackson
