Kold-Draft GBX1064ACE, 42" Air Cooled Full Cube Ice Machine, 818 Lb, 208-230V

Model specifics: up to 818 lbs per 24 hours · 42.3" wide · Kold-Draft big cube (1-1/4" square) · air-cooled · 208-230/60/1 · ice machine only, bin sold separately

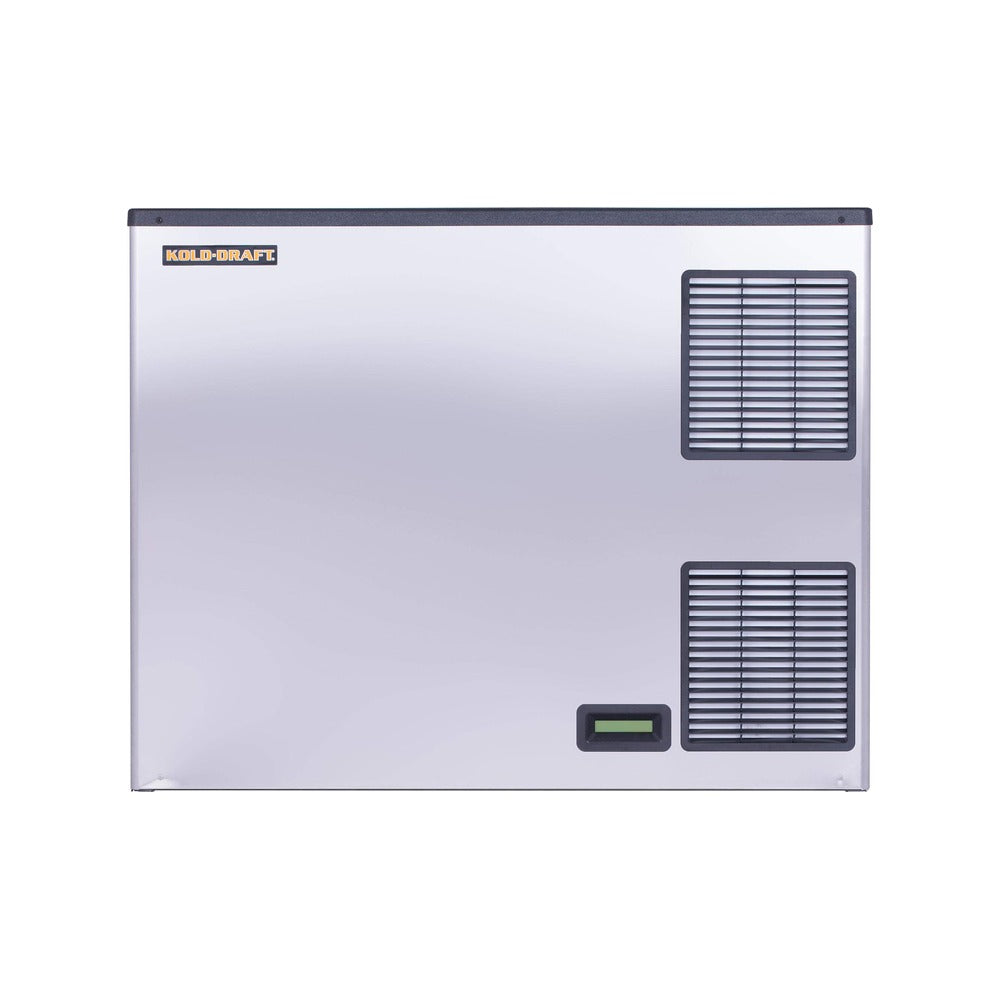

The Kold-Draft GBX1064ACE is a 42-inch modular cube ice machine from the Kold-Draft X-Series. It makes up to 818 pounds of ice in 24 hours at 70°F air and 50°F water, and about 711 pounds at 90°F air and 70°F water. The GBX1060 series is the largest Kold-Draft X-Series head, built on the same 42-inch footprint as the GBX560 but 33.7 inches tall, for hotels, banquet kitchens, stadiums and other high-volume sites.

Kold-Draft's upside-down horizontal evaporator and water plate freeze a true 1-1/4" x 1-1/4" x 1-1/4" square cube. The cube is hard, dense, clear and slow to melt, so it holds up in cocktails, spirits and soft drinks and stays fresh in the bin.

This is the air-cooled version, so no condenser water line is needed. Kold-Draft calls for 4 inches of clearance on the left side, 8 inches on the right side and back, and 6 inches on top for ventilation and utility connections, with room temperatures from 45°F to 110°F. Peak heat rejection is 18,000 BTU/hr, so plan ventilation accordingly.

Power is 208-230/60/1 with a 8.2 amp minimum circuit and 15 amp maximum fuse. Note this model needs a 208-230 volt single-phase circuit.

Features:

• X-Series cabinet: 300 series stainless steel exterior with rounded corners, plastic top panels and plastic louvers
• LCD display
• Thermostatic expansion valve controlled refrigeration system
• R290 natural refrigerant
• Stackable with other X-Series heads to double capacity in the same footprint (stacking kit required)
• Designed, engineered and assembled in the USA (per Kold-Draft)

Specifications:

• Model: GBX1064ACE
• Series: Kold-Draft X-Series GBX1060
• Ice type: Kold-Draft big cube, 1-1/4" x 1-1/4" x 1-1/4"
• Ice production: up to 818 lbs / 24 hr (70°F air / 50°F water); about 711 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 42.3" x 31.1" x 33.7"
• Electrical: 208-230/60/1, 8.2 amp minimum circuit, 15 amp maximum fuse
• Condenser: Air-cooled
• Energy use: 4.96 kWh per 100 lbs at 90°F air / 70°F water
• Potable water use: 12.5 gal per 100 lbs
• Condenser heat rejection: 13,850 avg / 18,000 peak BTU/hr
• Plumbing: 3/4" FPT potable water inlet, 3/4" FPT bin drain, 3/4" I.D. flex tubing cuber drain
• Operating range: Room 45°F to 110°F; water 45°F to 90°F; water pressure 20 to 100 psi
• Refrigerant: R290
• Exterior: 300 series stainless steel
• Shipping weight: 360 lbs
• Warranty: 3 Year Parts & Labor, 5 Year Compressor & Evaporator Parts

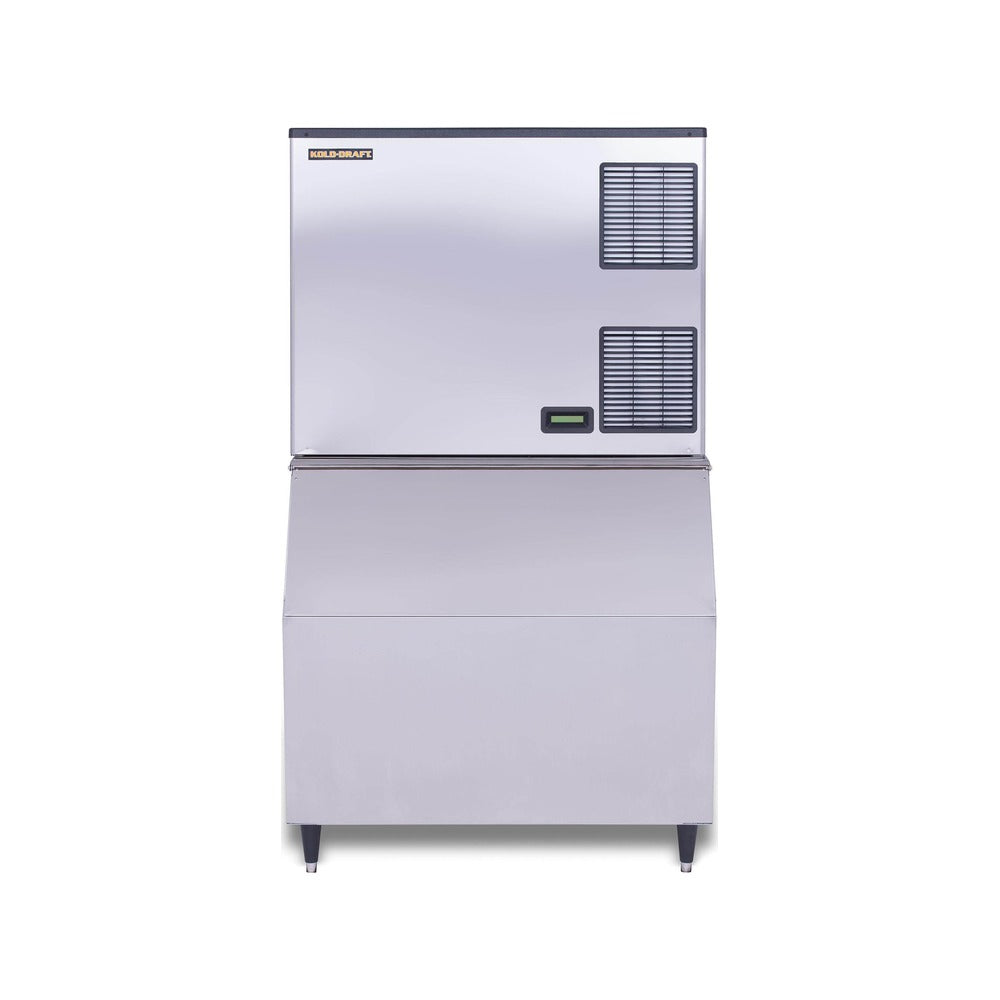

Matching Kold-Draft bins: Kold-Draft pairs the GBX1060 series with the KDB650 (660 lb, 42" wide) and KDB950 (950 lb, 48" wide) ice storage bins (sold separately).

Water filter: Kold-Draft recommends water filtration on all of its ice machines. The matching filter for this model is the Kold-Draft TLC-107097F Nautilus twin-cartridge filter system (4.2 GPM, 54,000 gallons; takes two TLC-3200S replacement cartridges). Sold separately.

Accessories (sold separately): Stacking kit 102149501 (GBX560/GBX1060 on top of GBX560/GBX1060); DR3-GB 3" drain riser kit.

Kold-Draft warranty: 3 year parts & labor on the ice machine, plus 2 additional years (5 years total) on the compressor and ice cube evaporator, parts only. Labor must be performed by a Kold-Draft authorized service agency, and the machine must be installed and maintained to Kold-Draft's instructions.

Please note: this is the ice machine head only. The ice bin, water filter, stacking kit and drain riser are sold separately. The attached Kold-Draft spec sheet has full dimensions and utility details.
