Kold-Draft GTX361ACE, 30" Air Cooled Full Cube Ice Machine, 295 Lb

Model specifics: up to 295 lbs per 24 hours · 30.1" wide · Kold-Draft big cube (1-1/4" square) · air-cooled · 115/60/1 · ice machine only, bin sold separately

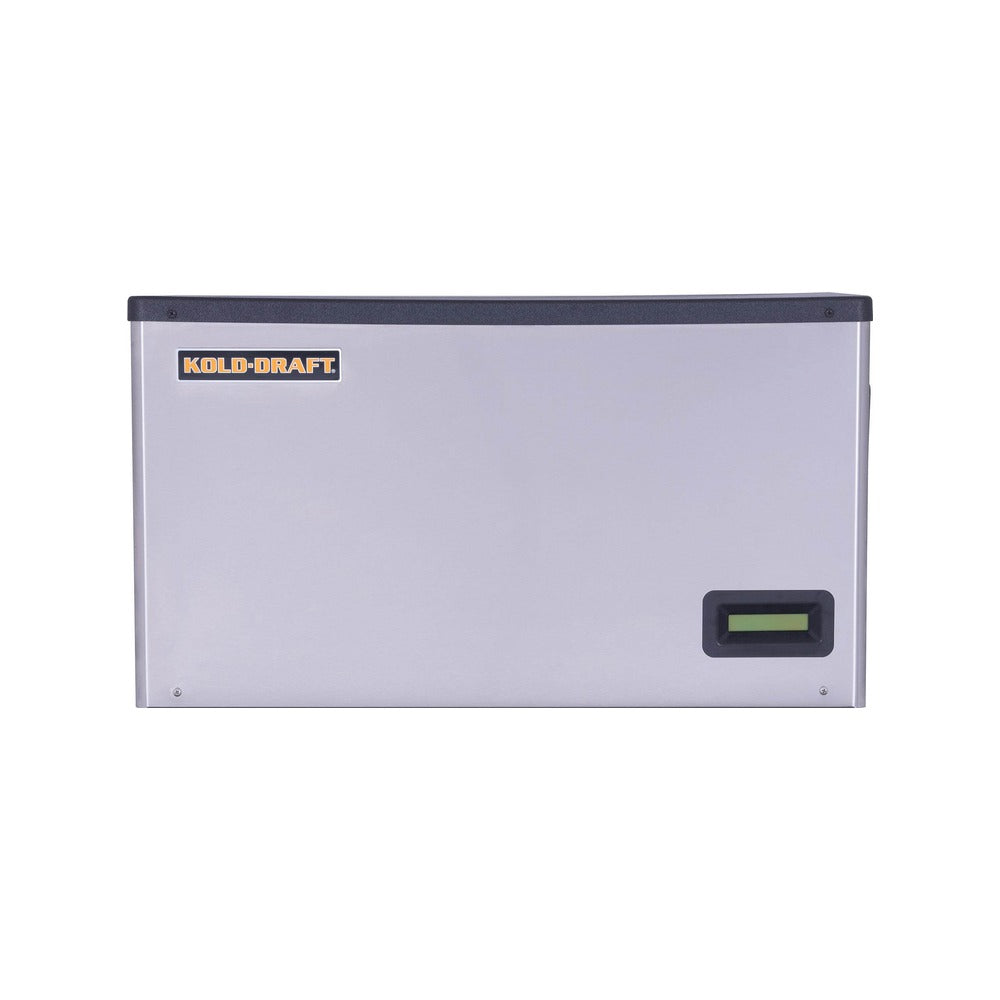

The Kold-Draft GTX361ACE is a 30-inch modular cube ice machine from the Kold-Draft X-Series. It makes up to 295 pounds of ice in 24 hours at 70°F air and 50°F water, and about 263 pounds at 90°F air and 70°F water. The GTX360 series is the compact 30-inch X-Series head, under 17 inches tall, for bars, cafes and small restaurants that want Kold-Draft ice without a large machine.

Kold-Draft's upside-down horizontal evaporator and water plate freeze a true 1-1/4" x 1-1/4" x 1-1/4" square cube. The cube is hard, dense, clear and slow to melt, so it holds up in cocktails, spirits and soft drinks and stays fresh in the bin.

This is the air-cooled version, so no condenser water line is needed. Kold-Draft calls for 4 inches of clearance on the left side, 8 inches on the right side and back, and 6 inches on top for ventilation and utility connections, with room temperatures from 45°F to 110°F. Peak heat rejection is 5,850 BTU/hr, so plan ventilation accordingly.

Power is 115/60/1 with a 10.1 amp minimum circuit and 15 amp maximum fuse. It runs on standard 115-volt power.

Features:

• X-Series cabinet: 300 series stainless steel exterior with rounded corners, plastic top panels and plastic louvers
• LCD display
• Thermostatic expansion valve controlled refrigeration system
• R290 natural refrigerant
• Stackable with other X-Series heads to double capacity in the same footprint (stacking kit required)
• Designed, engineered and assembled in the USA (per Kold-Draft)

Specifications:

• Model: GTX361ACE
• Series: Kold-Draft X-Series GTX360
• Ice type: Kold-Draft big cube, 1-1/4" x 1-1/4" x 1-1/4"
• Ice production: up to 295 lbs / 24 hr (70°F air / 50°F water); about 263 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 30.1" x 25.7" x 16.9"
• Electrical: 115/60/1, 10.1 amp minimum circuit, 15 amp maximum fuse
• Condenser: Air-cooled
• Energy use: 5.63 kWh per 100 lbs at 90°F air / 70°F water
• Potable water use: 18.49 gal per 100 lbs
• Condenser heat rejection: 4,700 avg / 5,850 peak BTU/hr
• Plumbing: 3/4" FPT potable water inlet, 3/4" FPT bin drain, 3/4" I.D. flex tubing cuber drain
• Operating range: Room 45°F to 110°F; water 45°F to 90°F; water pressure 20 to 100 psi
• Refrigerant: R290
• Exterior: 300 series stainless steel
• Shipping weight: 175 lbs
• Warranty: 3 Year Parts & Labor, 5 Year Compressor & Evaporator Parts

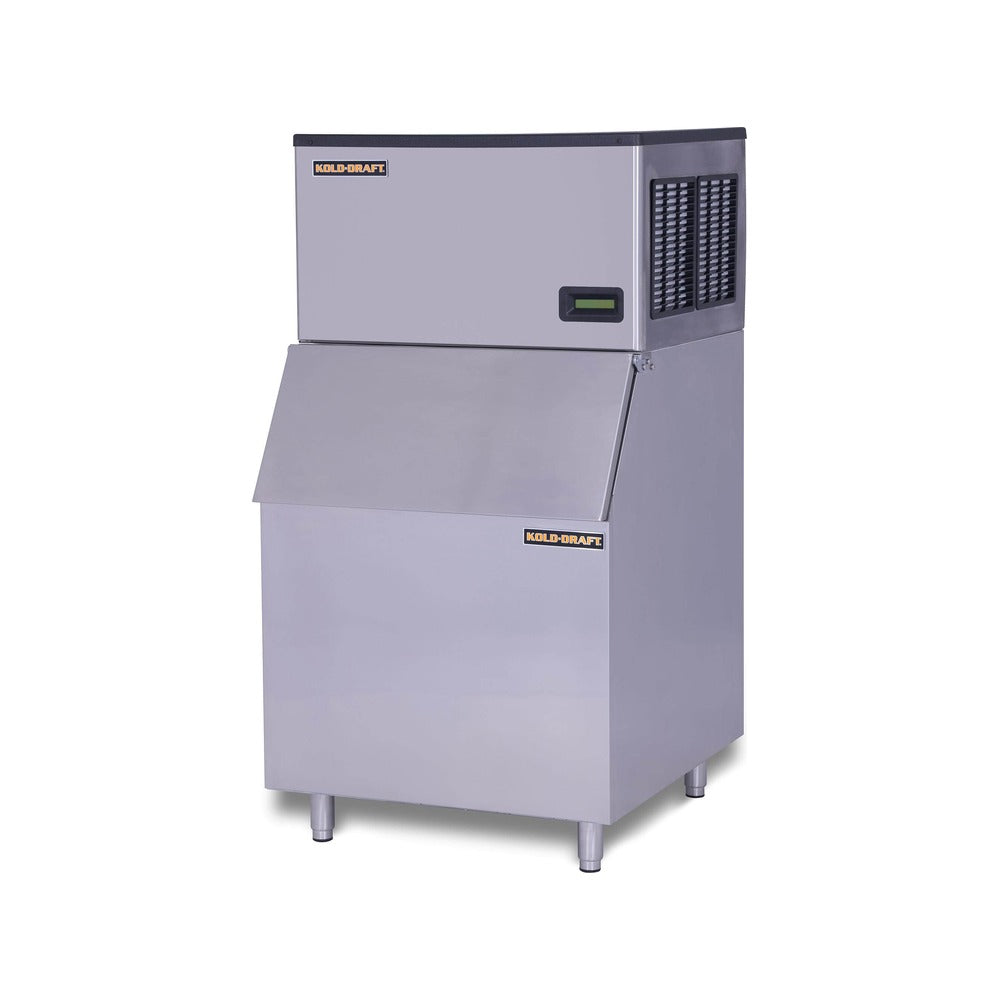

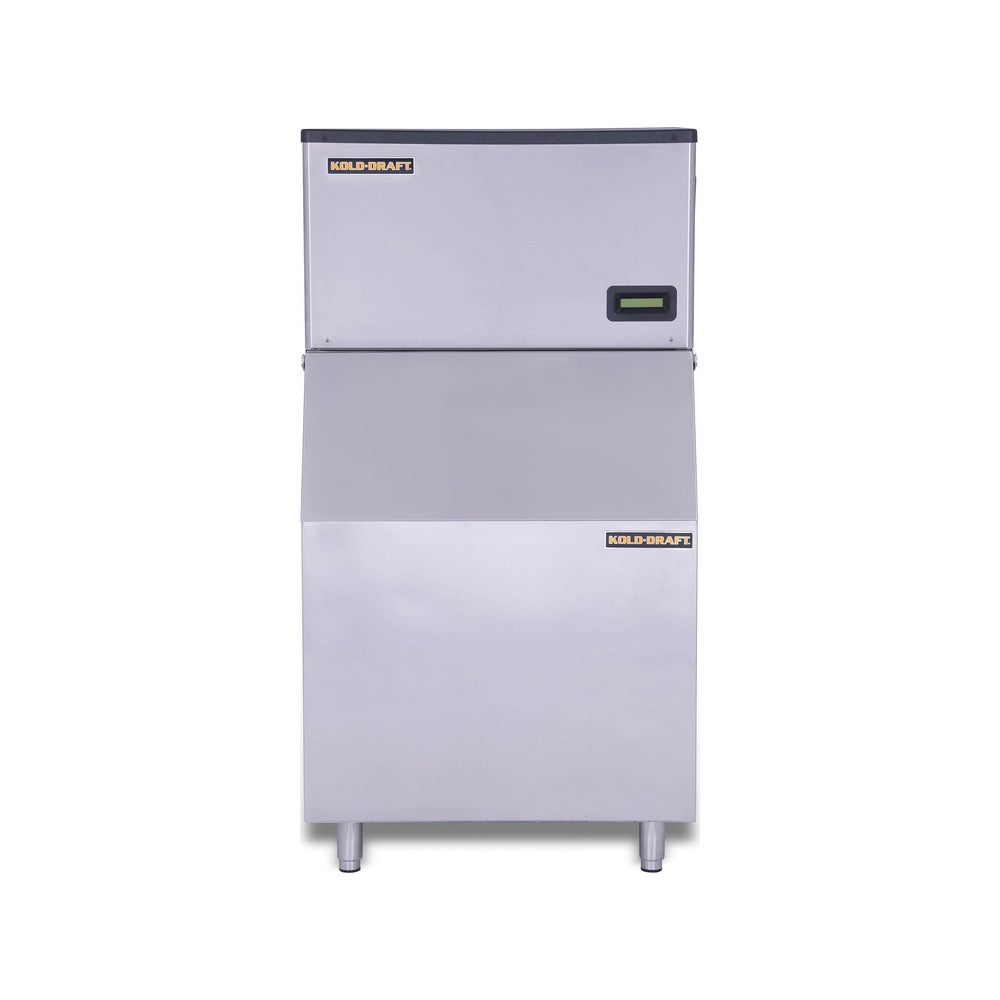

Matching Kold-Draft bins: Kold-Draft pairs the GTX360 series with the KDB230 (230 lb, 30.25" wide) and KDB400 (400 lb, 30.25" wide) ice storage bins (sold separately). For the 30" KDB230 and KDB400 bins, Kold-Draft also offers an optional 4" leg kit (part 102146001, set of 4); the bins ship with 6" legs.

Water filter: Kold-Draft recommends water filtration on all of its ice machines. The matching filter for this model is the Kold-Draft TLC-107096F Nautilus single-cartridge filter system (2.1 GPM, 27,000 gallons; replacement cartridge TLC-3200S). Sold separately.

Accessories (sold separately): Stacking kits 102149801 (GTX360 on top of GTX360) and 102149701 (GTX360 on top of GTX560); DR3-GT 3" drain riser kit.

Kold-Draft warranty: 3 year parts & labor on the ice machine, plus 2 additional years (5 years total) on the compressor and ice cube evaporator, parts only. Labor must be performed by a Kold-Draft authorized service agency, and the machine must be installed and maintained to Kold-Draft's instructions.

Please note: this is the ice machine head only. The ice bin, water filter, stacking kit and drain riser are sold separately. The attached Kold-Draft spec sheet has full dimensions and utility details.
