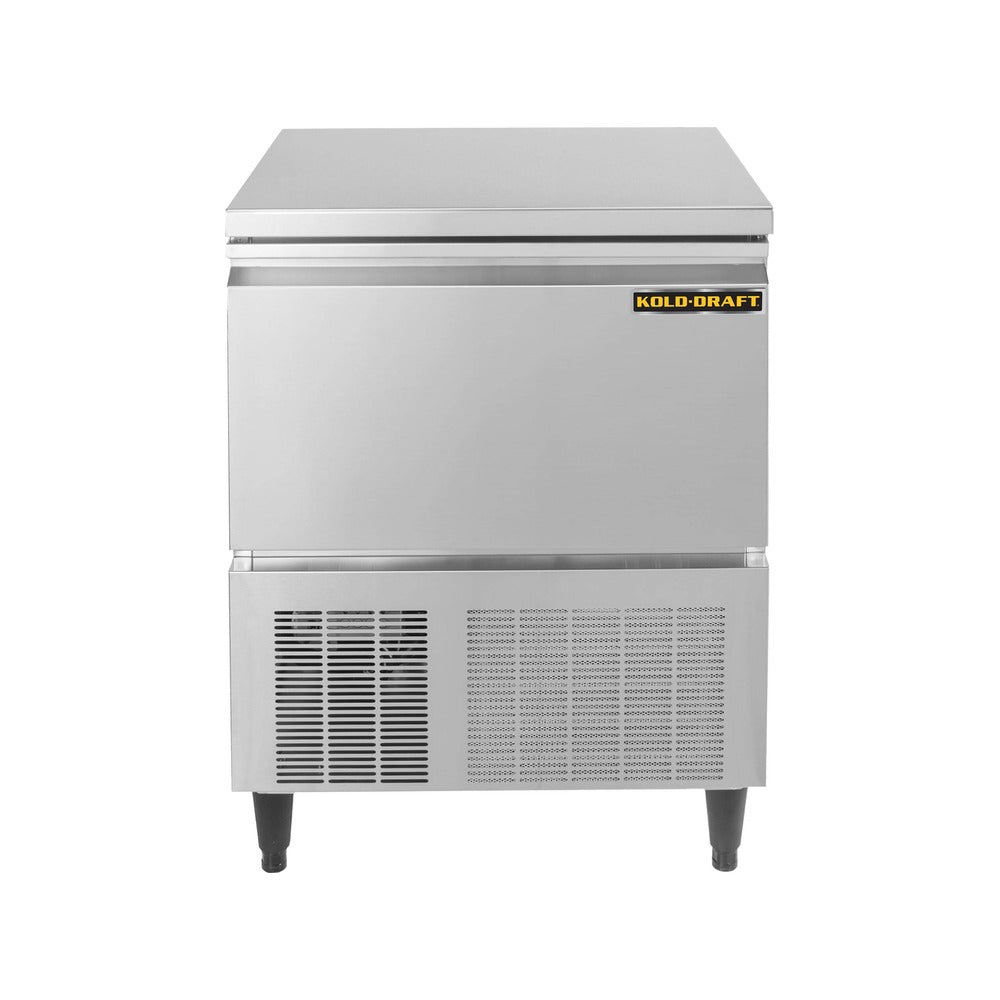

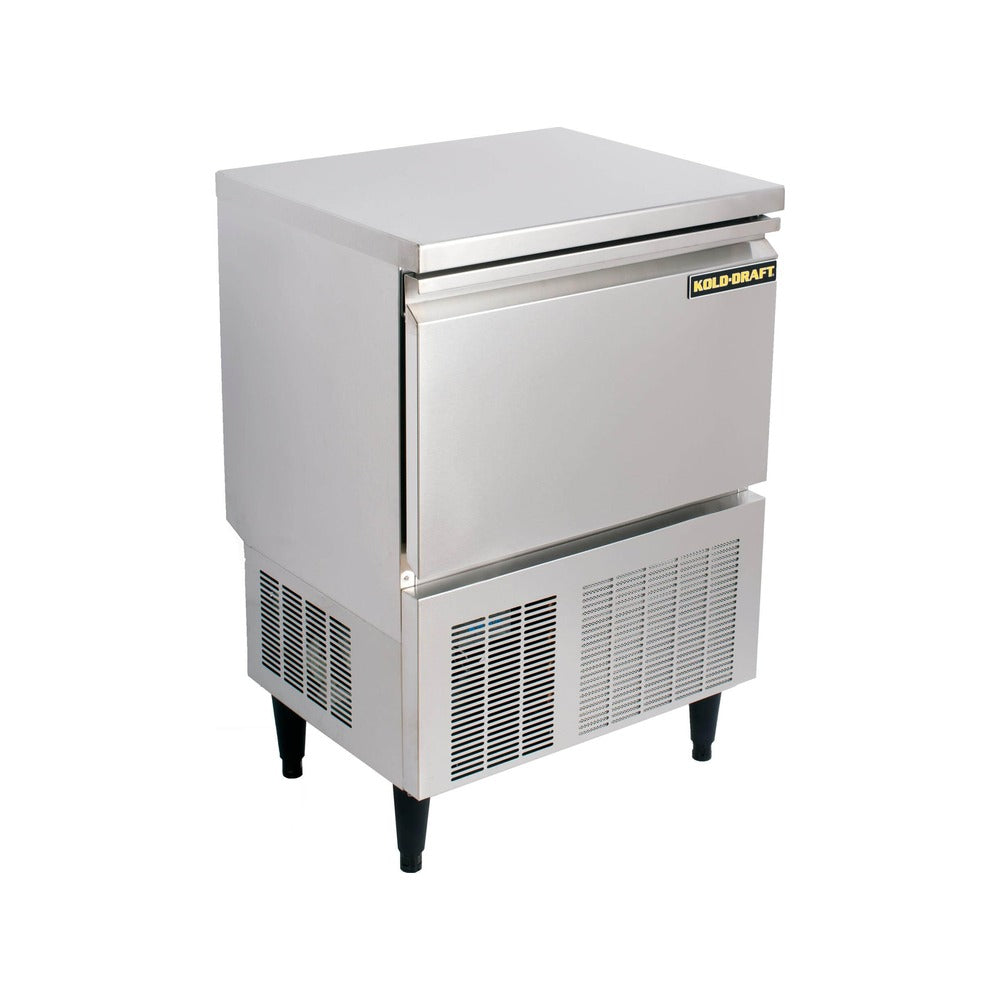

Kold-Draft KD-110E, 24-4/5" Air Cooled Large Cube Undercounter Ice Machine, 118 Lb

Model specifics: up to 118 lbs per 24 hours · 60 lbs storage · 24.8" wide · cocktail cube (1" x 1" x 1-1/4") · air-cooled · 115/60/1 · self-contained

The Kold-Draft KD-110E is a self-contained undercounter ice maker from the Kold-Draft Cocktail Series. It makes up to 118 pounds of ice in 24 hours at 70°F air and 50°F water (about 111 pounds at 90°F air and 70°F water) and stores 60 pounds in its built-in bin. The 24-4/5-inch KD-110E is the largest Cocktail Series model, with the most production and storage for busy bars and restaurants.

The Cocktail Series makes Kold-Draft's 1" x 1" x 1-1/4" cocktail cube (a large cube), a clear, slow-melting cube for top-shelf drinks. Ice thickness is adjustable with low, medium and high settings, and a special cleaning mode simplifies routine sanitizing.

It is air-cooled and plugs into standard 115-volt power (7 amp minimum circuit, 15 amp maximum fuse). Kold-Draft requires the front to be completely unobstructed, at least 4 inches of clearance at the back and 0.06 inch at the top and sides, with room and water temperatures from 45°F to 90°F. The drain is a 1/4" hose (gravity drain).

Features:

• Cocktail cubes, 1" x 1" x 1-1/4"
• 60 lb built-in ice storage
• Adjustable ice thickness: low, medium and high
• Special cleaning mode
• 300 series stainless steel exterior
• R290 natural refrigerant

Specifications:

• Model: KD-110E
• Series: Kold-Draft Cocktail Series
• Ice type: Cocktail cube, 1" x 1" x 1-1/4"
• Ice production: up to 118 lbs / 24 hr (70°F air / 50°F water); about 111 lbs at 90°F air / 70°F water
• Storage capacity: 60 lbs
• Dimensions (W x D x H): 24.8" x 20.7" x 36.7" (with 6" legs)
• Electrical: 115/60/1, 7 amp minimum circuit, 15 amp maximum fuse
• Condenser: Air-cooled
• Energy use: 7.04 kWh per 100 lbs at 90°F air / 70°F water
• Potable water use: 15.6 gal per 100 lbs
• Drain: 1/4" hose, gravity drain
• Operating range: Room 45°F to 90°F; water 45°F to 90°F; water pressure 20 to 100 psi
• Refrigerant: R290
• Exterior: 300 series stainless steel
• Shipping weight: 130 lbs
• Warranty: 3 Year Parts & Labor, 5 Year Compressor & Evaporator Parts

Water filter: Kold-Draft recommends water filtration on all of its ice machines. The matching filter for the KD-110E is the Kold-Draft TLC-107096F Nautilus single-cartridge filter system (2.1 GPM, 27,000 gallons; replacement cartridge TLC-3200S). Sold separately.

Kold-Draft warranty: 3 year parts & labor on the ice machine, plus 2 additional years (5 years total) on the compressor and ice cube evaporator, parts only. Labor must be performed by a Kold-Draft authorized service agency, and the machine must be installed and maintained to Kold-Draft's instructions.

The attached Kold-Draft Cocktail Series spec sheet has full dimensions and installation details.
