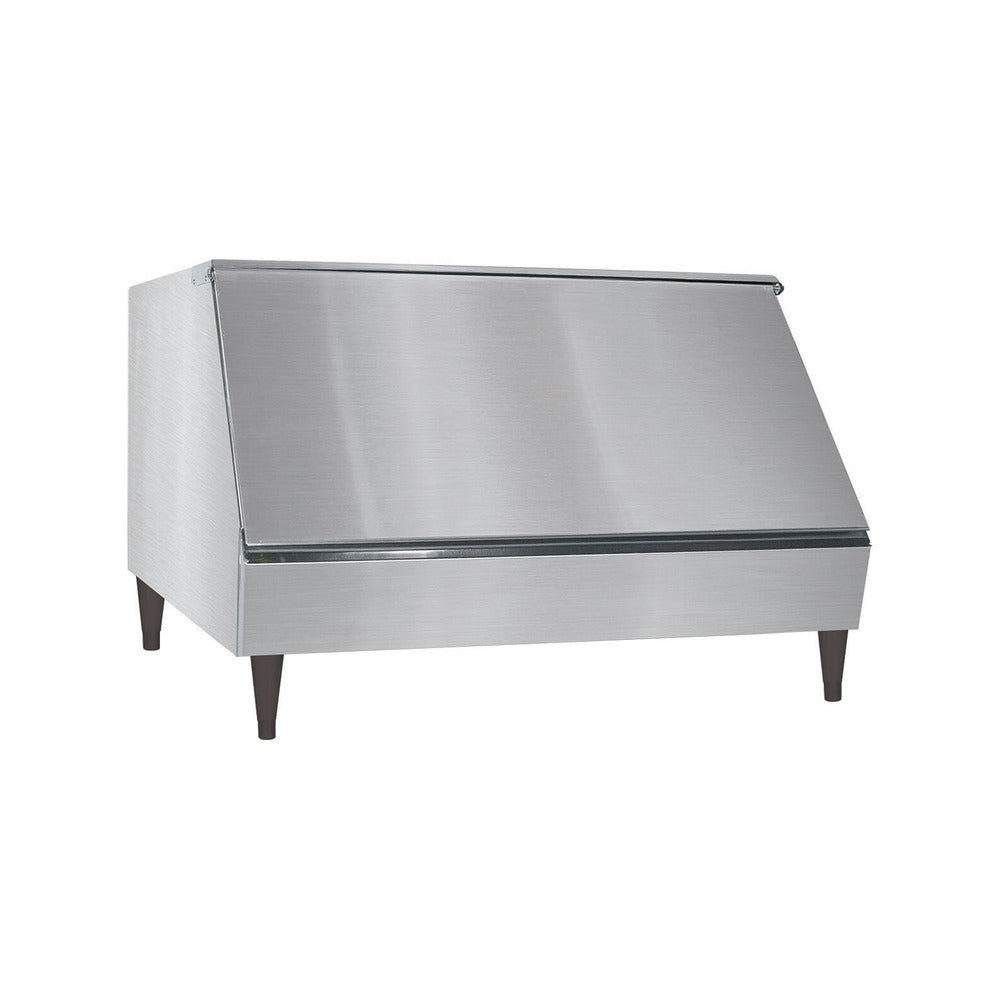

Kold-Draft KDB230, 30.25" 230 Lb Ice Storage Bin, Stainless Steel Exterior

Model specifics: 230 lbs storage · 30.25" x 34" x 23" (W x D x H, height includes 6" legs) · stainless steel exterior

The Kold-Draft KDB230 is a 30.25-inch ice storage bin that holds up to 230 pounds of ice. At just 23 inches tall on its 6" legs, the KDB230 is the low-profile 30-inch bin, keeping a GTX head at an easy working height or under a low ceiling.

The exterior is durable stainless steel. Inside, polyethylene-lined walls will not pit or stain and wipe clean easily, and non-CFC polyurethane foam insulation bonds the shell and liner to keep ice longer.

A rigid stainless steel lift door stands up to heavy use, and a gasket seals the door opening to cut meltage. The extra-large door opening and low door sill make it easy to reach ice at the bottom of the bin and to clean it.

Which ice makers fit: Kold-Draft matches this bin with its 30" Kold-Draft X-Series GTX360 and GTX560 heads (GTX361ACE, GTX361LCE, GTX561ACE, GTX561LCE, GTX564ACE and GTX564LCE). Ice machine sold separately.

Specifications:

• Model: KDB230
• Storage capacity: 230 lbs
• Dimensions (W x D x H): 30.25" x 34" x 23" (height includes 6" legs)
• Exterior: Stainless steel
• Liner: Polyethylene
• Insulation: Non-CFC polyurethane foam
• Door: Rigid stainless steel lift door with gasket seal
• Compatible ice machines: Kold-Draft GTX360/GTX560
• Shipping weight: 110 lbs
• Warranty: 3 Year Parts & Labor

Legs: the bin ships on 6" legs. An optional Kold-Draft 4" leg kit (part 102146001, set of 4) is available for the KDB230 and KDB400, sold separately.

Kold-Draft warranty: 3 year parts & labor, with labor performed by a Kold-Draft authorized service agency.

Ice machine sold separately. The attached Kold-Draft KDB spec sheet has dimensions for all four bins.
