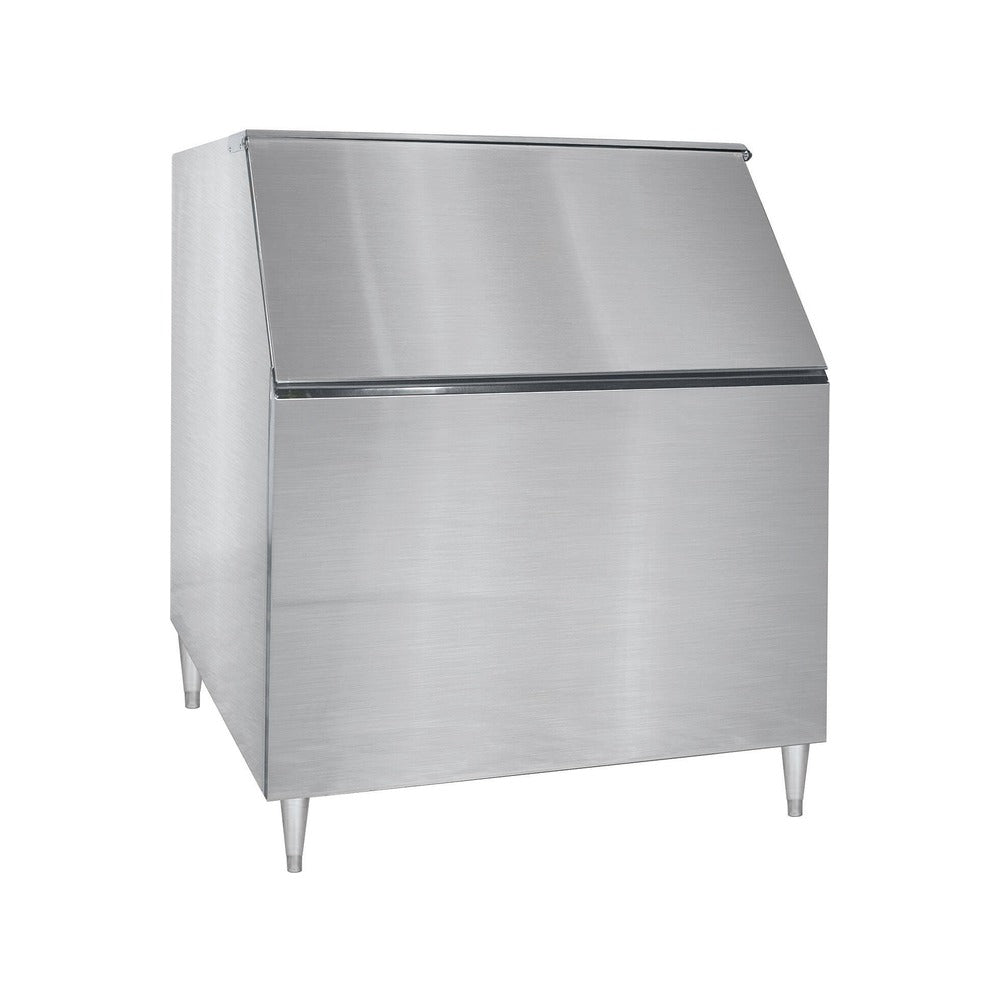

Kold-Draft KDB400, 30.25" 400 Lb Ice Storage Bin, Stainless Steel Exterior

Model specifics: 400 lbs storage · 30.25" x 34" x 37" (W x D x H, height includes 6" legs) · stainless steel exterior

The Kold-Draft KDB400 is a 30.25-inch ice storage bin that holds up to 400 pounds of ice. The KDB400 is the tall 30-inch bin, nearly doubling storage over the KDB230 in the same footprint.

The exterior is durable stainless steel. Inside, polyethylene-lined walls will not pit or stain and wipe clean easily, and non-CFC polyurethane foam insulation bonds the shell and liner to keep ice longer.

A rigid stainless steel lift door stands up to heavy use, and a gasket seals the door opening to cut meltage. The extra-large door opening and low door sill make it easy to reach ice at the bottom of the bin and to clean it.

Which ice makers fit: Kold-Draft matches this bin with its 30" Kold-Draft X-Series GTX360 and GTX560 heads (GTX361ACE, GTX361LCE, GTX561ACE, GTX561LCE, GTX564ACE and GTX564LCE). Ice machine sold separately.

Specifications:

• Model: KDB400
• Storage capacity: 400 lbs
• Dimensions (W x D x H): 30.25" x 34" x 37" (height includes 6" legs)
• Exterior: Stainless steel
• Liner: Polyethylene
• Insulation: Non-CFC polyurethane foam
• Door: Rigid stainless steel lift door with gasket seal
• Compatible ice machines: Kold-Draft GTX360/GTX560
• Shipping weight: 140 lbs
• Warranty: 3 Year Parts & Labor

Legs: the bin ships on 6" legs. An optional Kold-Draft 4" leg kit (part 102146001, set of 4) is available for the KDB230 and KDB400, sold separately.

Kold-Draft warranty: 3 year parts & labor, with labor performed by a Kold-Draft authorized service agency.

Ice machine sold separately. The attached Kold-Draft KDB spec sheet has dimensions for all four bins.
