Kold-Draft SC201ACE, 26" Air Cooled Full Cube Undercounter Ice Machine, 158 Lb

Model specifics: up to 158 lbs per 24 hours · 125 lbs storage · 26" wide · Kold-Draft big cube (1-1/4" square) · air-cooled · 115/60/1 · self-contained

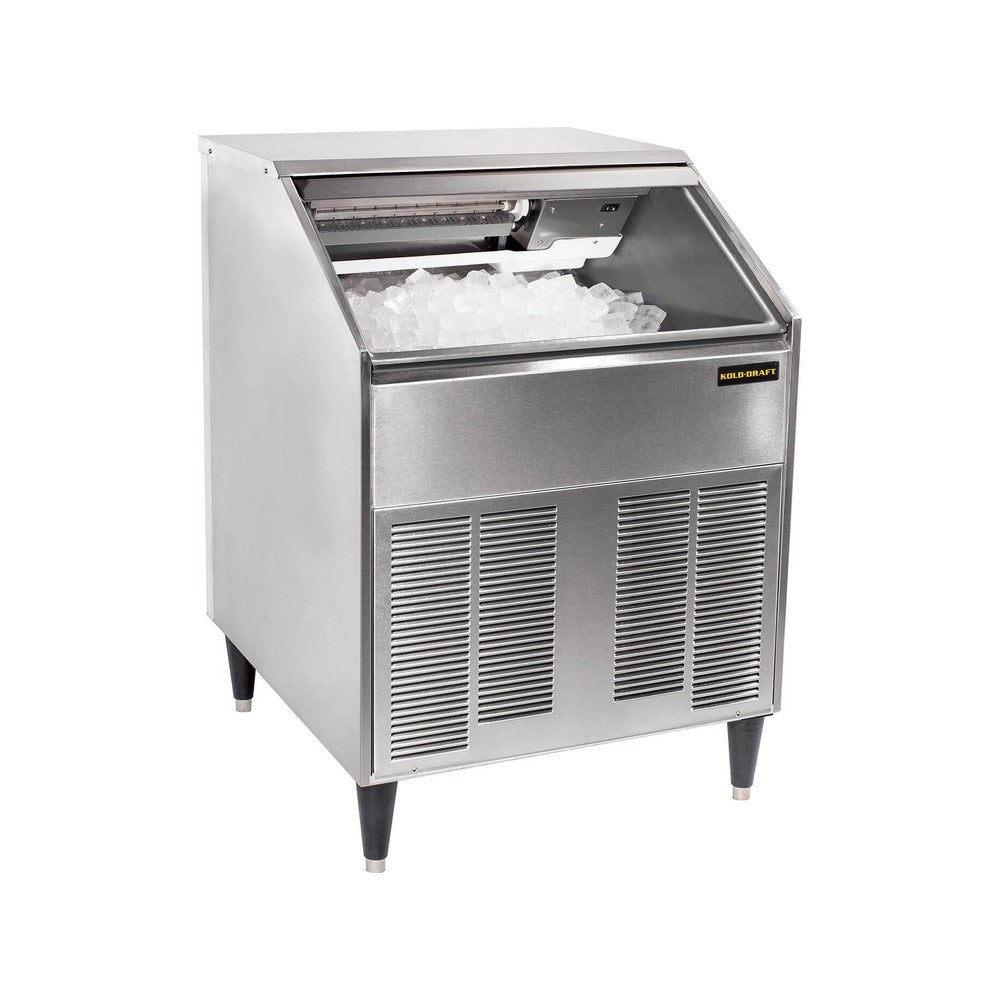

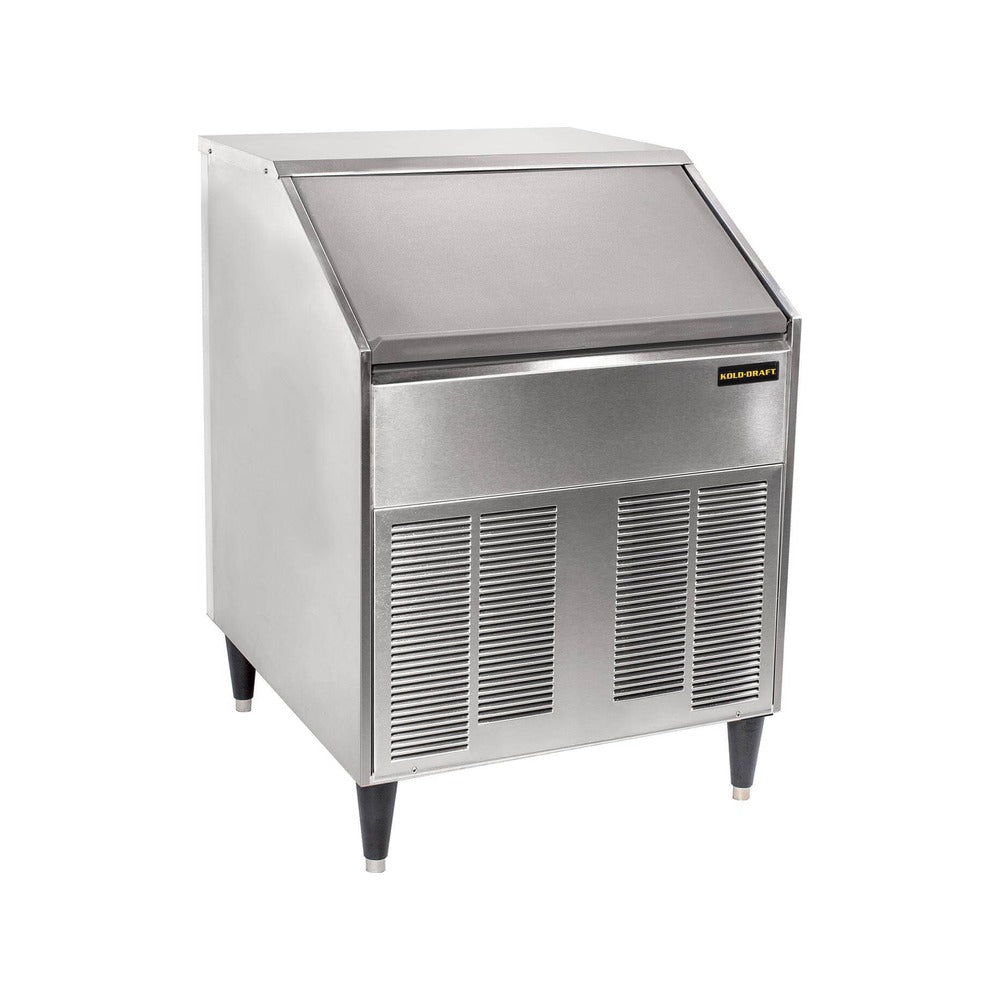

The Kold-Draft SC201ACE is a self-contained undercounter ice machine with a built-in bin. It makes up to 158 pounds of ice in 24 hours at 70°F air and 50°F water (about 133 pounds at 90°F air and 70°F water) and stores up to 125 pounds.

It produces Kold-Draft's hard, square 1-1/4" x 1-1/4" x 1-1/4" big cube, the same slow-melting cube made by the full-size Kold-Draft heads, so a bar can serve signature Kold-Draft ice without a modular machine and bin.

The SC201ACE is 31.4 inches tall without legs, so it is ADA compliant and fits under 34-inch countertops (37.4 inches tall on its legs). The front-breathing design lets it go into tight spaces under the bar.

It runs on standard 115-volt single-phase power with a 6.1 amp minimum circuit and 15 amp maximum fuse.

Features:

• Self-contained: ice machine and 125 lb storage bin in one cabinet
• Front-breathing air-cooled design for built-in undercounter installs
• ADA compliant height: 31.4" without legs
• Corrosion-resistant stainless steel exterior with plastic door and bin liner
• Thermostatic expansion valve controlled refrigeration system
• R290 natural refrigerant

Specifications:

• Model: SC201ACE
• Ice type: Kold-Draft big cube, 1-1/4" x 1-1/4" x 1-1/4"
• Ice production: up to 158 lbs / 24 hr (70°F air / 50°F water); about 133 lbs at 90°F air / 70°F water
• Storage capacity: 125 lbs
• Dimensions (W x D x H): 26" x 28.6" x 37.4" with legs (31.4" H without legs)
• Electrical: 115/60/1, 6.1 amp minimum circuit, 15 amp maximum fuse
• Condenser: Air-cooled, front breathing
• Energy use: 5.98 kWh per 100 lbs at 90°F air / 70°F water
• Potable water use: 33.0 gal per 100 lbs
• Plumbing: 1/2" FIP potable water inlet, 3/4" FIP ice bin drain, 1/2" FIP ice maker drain
• Operating range: Room 45°F to 110°F; water 45°F to 90°F; water pressure 5 to 100 psi
• Refrigerant: R290
• Exterior: Stainless steel with plastic door and bin liner
• Shipping weight: 207 lbs
• Warranty: 3 Year Parts & Labor, 5 Year Compressor & Evaporator Parts

Water filter: Kold-Draft recommends water filtration on all of its ice machines. The matching filter for the SC201ACE is the Kold-Draft TLC-107096F Nautilus single-cartridge filter system (2.1 GPM, 27,000 gallons; replacement cartridge TLC-3200S). Sold separately.

Kold-Draft warranty: 3 year parts & labor on the ice machine, plus 2 additional years (5 years total) on the compressor and ice cube evaporator, parts only. Labor must be performed by a Kold-Draft authorized service agency, and the machine must be installed and maintained to Kold-Draft's instructions.

The attached Kold-Draft spec sheet has full dimensions and utility locations.
