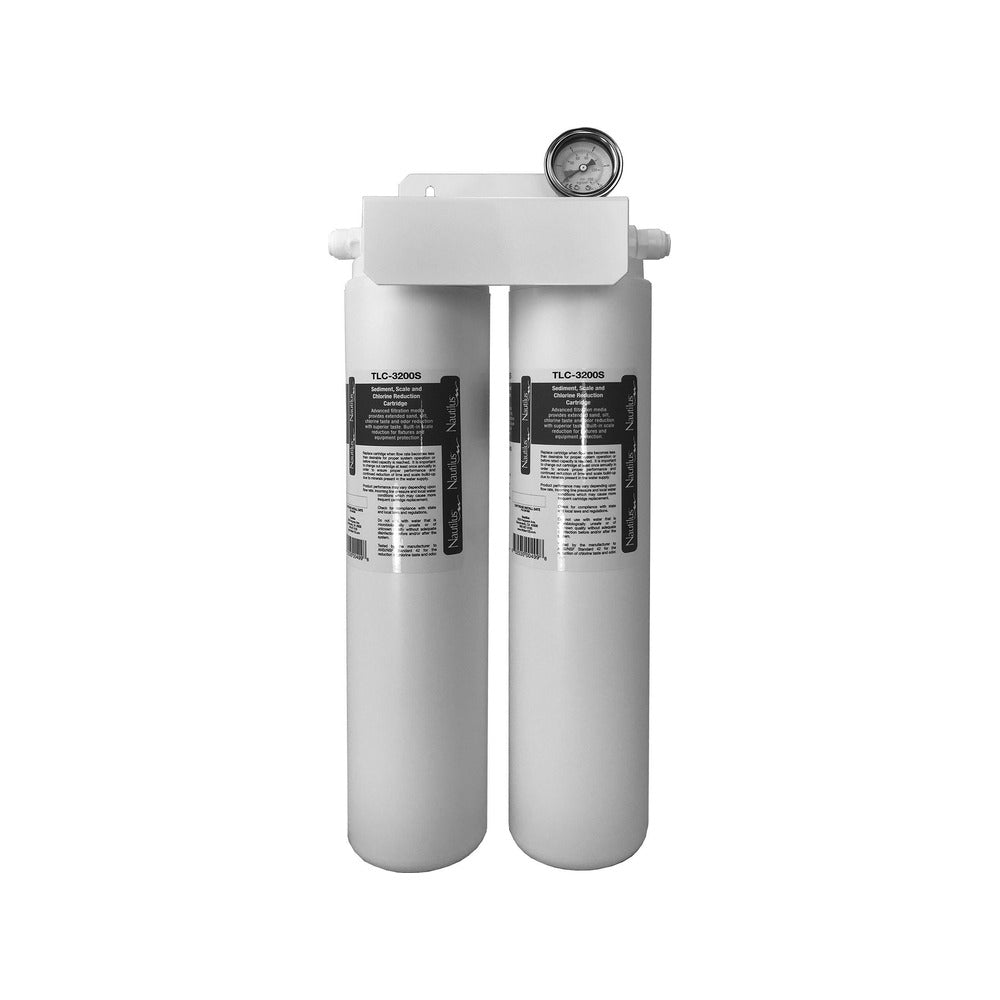

Kold-Draft TLC-107097F, Ice Machine Twin Cartridge Nautilus Water Filter System

Model specifics: twin-cartridge system · 4.2 GPM · 54,000 gallons or 6 months · 0.5 micron · pressure gauge · uses two TLC-3200S cartridges

The Kold-Draft TLC-107097F is a Nautilus twin-cartridge water filter system built only for ice machines. It filters the incoming water to the ice maker to cut down on scale, chlorine taste and sediment, the causes of many ice machine service calls.

With two cartridges it is rated for 4.2 GPM and 54,000 gallons or 6 months. The system comes with its two cartridges installed, a pressure gauge to show when the cartridges are loading up, and a pressure relief valve.

Features:

• Built-in polyphosphate scale inhibitor reduces lime and scale build-up, even in hard water
• Gradient density carbon block reduces chlorine taste and odor, dirt and fine sediment, for clearer, better-tasting ice
• Rated 0.5 micron
• Tested by the manufacturer to ANSI/NSF Standard 42 for reduction of chlorine taste and odor
• Sanitary quick-change head limits contamination of the media during cartridge change-outs
• Pressure gauge and pressure relief valve included

Specifications:

• Model: TLC-107097F
• Type: Twin-cartridge Nautilus filter system with pressure gauge
• Flow rate: 4.2 GPM
• Capacity: 54,000 gallons or 6 months
• Micron rating: 0.5
• Dimensions: 18" H x 6.5" W
• Operating pressure: 25 to 125 psi
• Operating temperature: 35°F to 100°F
• Replacement cartridge: 2 x Kold-Draft TLC-3200S
• Shipping weight: 6.25 lbs

Which ice machines: recommended for the Kold-Draft GBX1064ACE and GBX1064LCE. The smaller Kold-Draft heads and undercounters use the single-cartridge TLC-107096F.

Replace the cartridge when flow drops below what the ice machine needs or before rated capacity, and at least once a year. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
