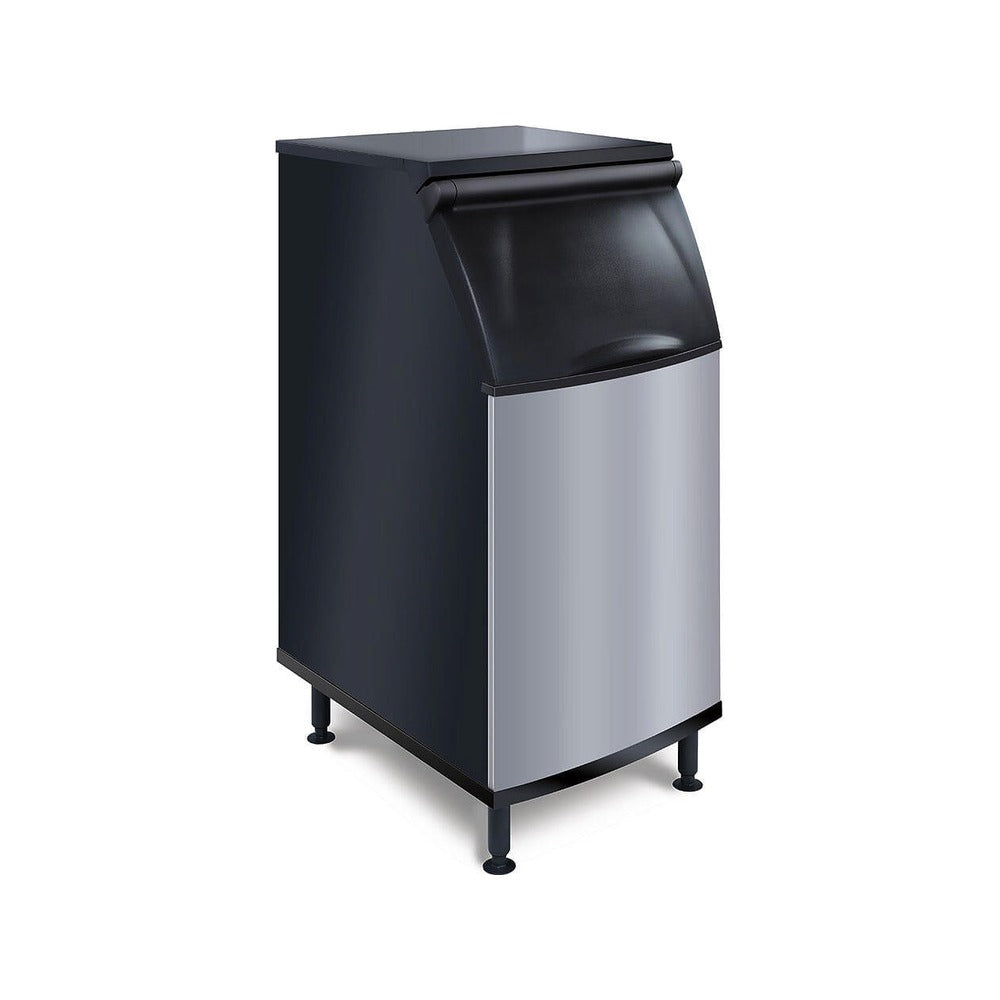

Koolaire K420, 22" 383 Lb Ice Storage Bin

Model specifics: 383 lbs storage · 22" wide x 34" deep · legs included · fits Koolaire Kuber ice machines

The Koolaire K420 is a 22-inch ice storage bin for Koolaire modular ice machines. It holds up to 383 pounds of ice (Koolaire's application capacity, based on 90% of the 12.9 cubic foot volume at 33 lbs per cubic foot; the 2018 AHRI-rated capacity is 310 lbs). The K420 is the 22-inch bin made for the 22-inch KP0420 Kuber, keeping a narrow ice station narrow from top to bottom.

A foam-insulated door cuts sweating and keeps ice longer, and it stays open on its own while you scoop. An internal scoop holder keeps the scoop above the ice line for better sanitation. The stainless-like exterior resists corrosion, and black side panels match Koolaire ice machines.

Which ice makers fit: per Koolaire's bin chart, KP0420 Kubers (KDP0420A/KYP0420A) sit directly on this bin. Ice machine and adapter sold separately.

Specifications:

• Model: K420
• Storage capacity: 383 lbs (application); 310 lbs AHRI 2018
• Cabinet volume: 12.9 cu ft
• Dimensions (W x D x H): 22" x 34" x 50" (height on the included 6" legs)
• Exterior: Stainless-like laminated finish with black side panels
• Legs: Set of 4 included, adjustable 6" to 7.75"
• Includes: 82 oz white ice scoop
• Compatible ice machines: KP0420 Kubers (KDP0420A/KYP0420A) sit directly on this bin
• Shipping weight: 108 lbs
• Warranty: Bin & Accessories: 3 Year Parts & Labor

Legs and casters: replacement adjustable legs are Koolaire kit K00441; Koolaire notes casters cannot be used on the K420.

Koolaire warranty: Koolaire covers its bins and accessories for 3 years parts & labor.

Ice machine sold separately. The attached Koolaire K-Series bin spec sheet has dimensions and the full ice machine fit chart.
