Koolaire KDF0150A, 26" Air Cooled Full Cube Undercounter Ice Machine, 168 Lb

Model specifics: up to 168 lbs per 24 hours · 92 lbs built-in storage · 26" wide · Kube (dice) ice · air-cooled · 115/60/1

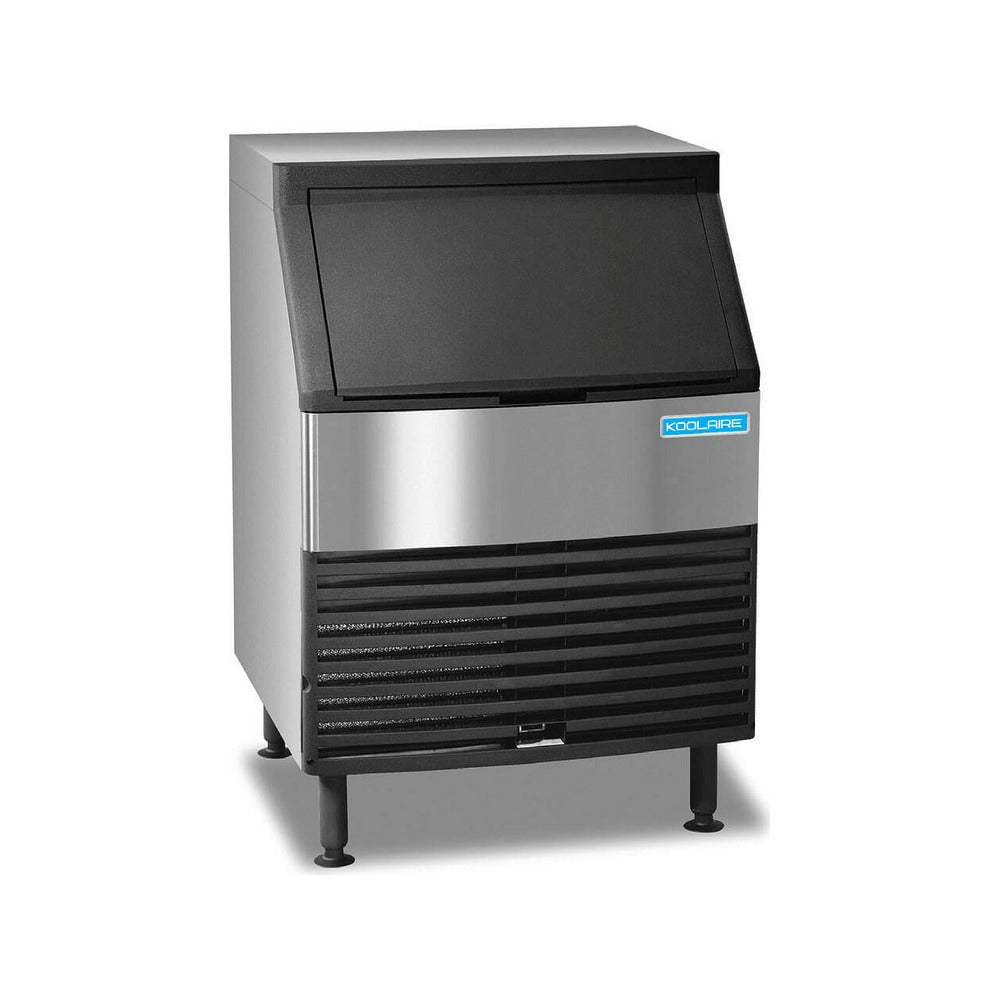

The Koolaire KDF0150A is a 26-inch undercounter cube ice machine with a built-in storage bin, made by Manitowoc. It makes up to 168 pounds of ice in 24 hours at 70°F air and 50°F water (about 110 pounds at 90°F air / 70°F water) and holds up to 92 pounds in its bin. The KF0150 is Koolaire's smaller undercounter model: a self-contained ice maker and bin only 26 inches wide and 38.5 inches high on its 6-inch legs, sized for bars, coffee shops, offices and small restaurants. Air goes in on the left of the front grille and out on the right, with no side vents, so it can sit under a counter or right next to other equipment.

It makes Koolaire's full-size Kube, a 7/8" x 7/8" x 7/8" dice cube. The square cube is slow to melt and fills a glass evenly, a good all-round choice for soft drinks, iced tea, water service and mixed drinks.

It runs on 115/60/1 power, 7.2 total amps on a 15 amp maximum fuse (HACR-type breakers can be used), and is factory-wired with a 6-foot cord. Koolaire rates it at 9.35 kWh and 32 gallons of potable water per 100 lbs of ice at 90°F air / 70°F water. Koolaire recommends 5 inches of clearance at the top, sides and back, though no minimum clearance is required.

Features:

• Simple three-position switch: ON / OFF / CLEAN, no need to remove the front panel
• Front air intake and discharge
• Easy-to-remove, reusable air filter keeps the condenser clean
• Hideaway bin door slides up under the ice machine top
• Factory-wired 6 ft power cord with NEMA 5-15P plug
• 6" adjustable flange-foot legs and an ice scoop included

Specifications:

• Model: KDF0150A
• Series: Koolaire KF0150 undercounter
• Ice type: Kube (dice), 7/8" x 7/8" x 7/8"
• Ice production: up to 168 lbs / 24 hr (70°F air / 50°F water); about 110 lbs at 90°F air / 70°F water
• Storage capacity: 92 lbs
• Dimensions (W x D x H): 26" x 26.5" x 38.5" (height on 6" legs)
• Electrical: 115/60/1, 7.2 total amps, 15 amp maximum fuse
• Condenser: Air-cooled
• Energy use: 9.35 kWh per 100 lbs at 90°F air / 70°F water
• Potable water use: 32 gal per 100 lbs
• Heat rejection: 2,700 average / 3,300 peak BTU/hr
• Refrigerant: R-404A
• Plumbing: 3/8" FPT water inlet, 1/2" FPT drain
• Shipping weight: 154.3 lbs
• Warranty: Ice Maker 3 Yr Parts & Labor; Evaporator 5 Yr Parts & Labor; Compressor 5 Yr Parts, 3 Yr Labor

Water filter: filtered water keeps scale off the evaporator and makes clearer, better-tasting ice. The matching filter for this model is the 3M CUNO ICE120-S ice machine water filter system, with the HF20-S replacement cartridge for change-outs. Both are sold separately.

Koolaire warranty: Koolaire's limited commercial warranty covers the ice maker for three (3) years parts and labor, the evaporator for five (5) years parts and labor, and the compressor for five (5) years parts and three (3) years labor.

This is a self-contained unit with its own bin, so no separate bin or adapter is needed. The water filter is sold separately. The attached Koolaire spec sheet has full dimensions and installation details.
