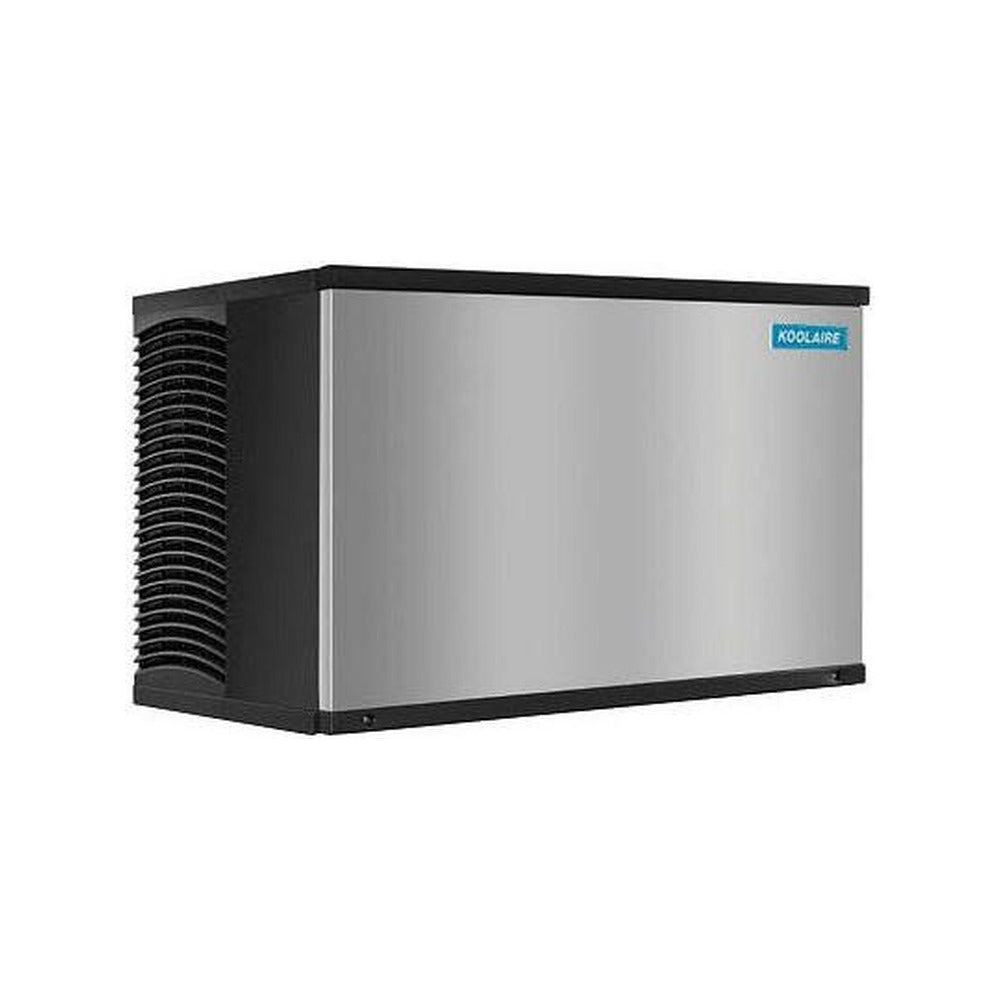

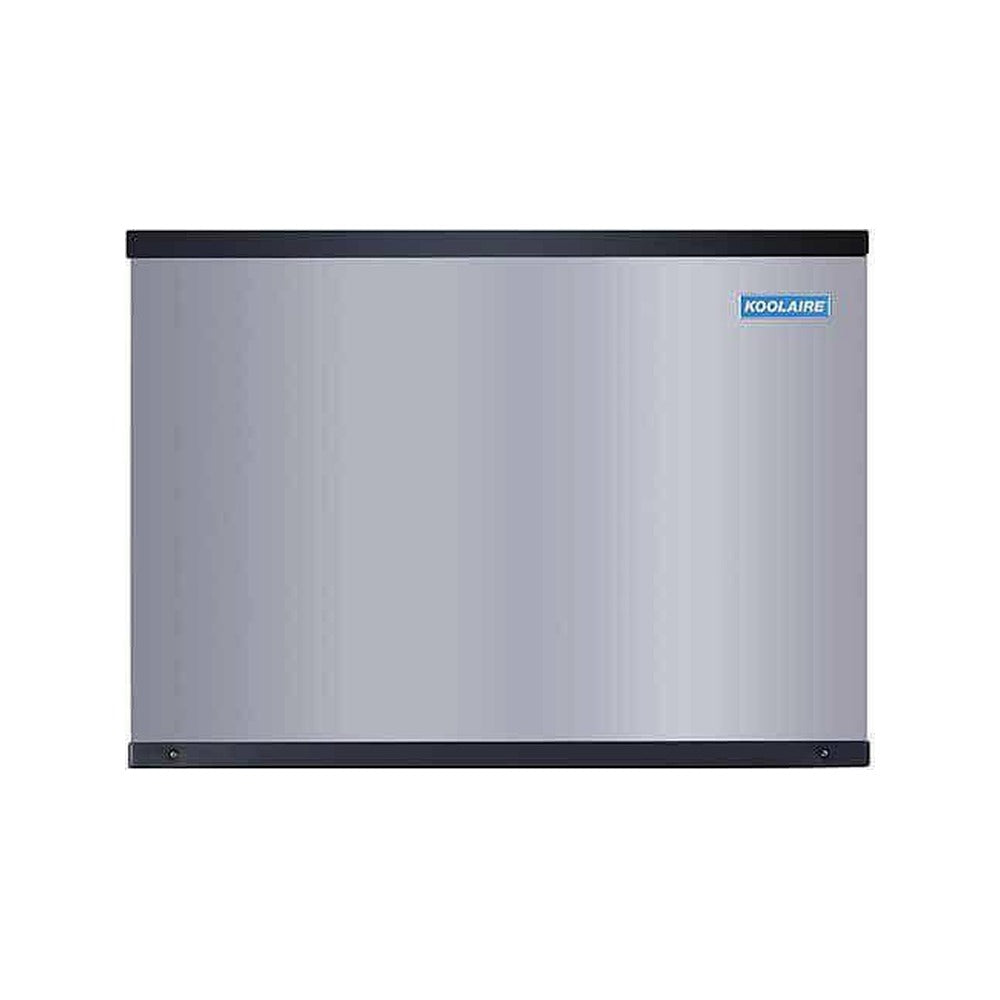

Koolaire KDP0300A, 30" Air Cooled Full Cube Ice Machine, 342 Lb

Model specifics: up to 342 lbs per 24 hours · 30" wide · ENERGY STAR qualified · Kube (dice) ice · air-cooled · 115/60/1 · ice machine only, bin sold separately

The Koolaire KDP0300A is a 30-inch modular cube ice machine, a Koolaire "Kuber" built by Manitowoc. It makes up to 342 pounds of ice in 24 hours at 70°F air and 50°F water, and about 256 pounds at 90°F air and 70°F water. The KP0300 is the entry 30-inch Kuber. Its cabinet is only 21.5 inches tall, and it suits cafes, small restaurants, bars and offices that need a steady supply of ice without a large machine. It is ENERGY STAR qualified in both cube sizes.

It makes Koolaire's full-size Kube, a 7/8" x 7/8" x 7/8" dice cube. The square cube is slow to melt and fills a glass evenly, a good all-round choice for soft drinks, iced tea, water service and mixed drinks.

This is the air-cooled version, so no condenser water line is needed; it puts about 5,120 BTU/hr of heat into the room on average (6,160 BTU/hr at peak), so plan ventilation accordingly. Koolaire rates it at 6.0 kWh per 100 lbs of ice at 90°F air / 70°F water. Power is 115/60/1 with an 8.2 amp minimum circuit and 15 amp maximum fuse. It runs on standard 115-volt power. Refrigerant is R290.

Features:

• AHRI performance certified
• ENERGY STAR qualified model
• Durable nickel-plated copper evaporator, made in Manitowoc, Wisconsin
• Simple three-position control: ON / OFF / CLEAN
• Smudge- and fingerprint-resistant stainless-like exterior
• R290 natural hydrocarbon refrigerant, a 99.86% GWP reduction compared to R410A
• One-touch cleaning: add chemical and the machine does the rest, no need to empty the bin (use Manitowoc de-scaler and sanitizer)
• Front-facing evaporator for easy access
• Food zone components remove by hand without tools
• Smooth white plastic interior wipes down easily
• Food zone sealed with commercial-grade gaskets
• Alpha San antimicrobial agent molded into key parts

Specifications:

• Model: KDP0300A
• Series: Koolaire KP0300 Kuber
• Ice type: Kube (dice), 7/8" x 7/8" x 7/8"
• Ice production: up to 342 lbs / 24 hr (70°F air / 50°F water); about 256 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 30" x 24.5" x 21.5" (ice machine only)
• Electrical: 115/60/1, 8.2 amp minimum circuit, 15 amp maximum fuse
• Condenser: Air-cooled
• Energy use: 6.0 kWh per 100 lbs at 90°F air / 70°F water
• Heat rejection: 5,120 average / 6,160 peak BTU/hr
• Refrigerant: R290
• Exterior: Stainless-like finish
• Shipping weight: 137 lbs
• Warranty: Ice Maker 3 Yr Parts & Labor; Evaporator 5 Yr Parts & Labor; Compressor 5 Yr Parts, 3 Yr Labor

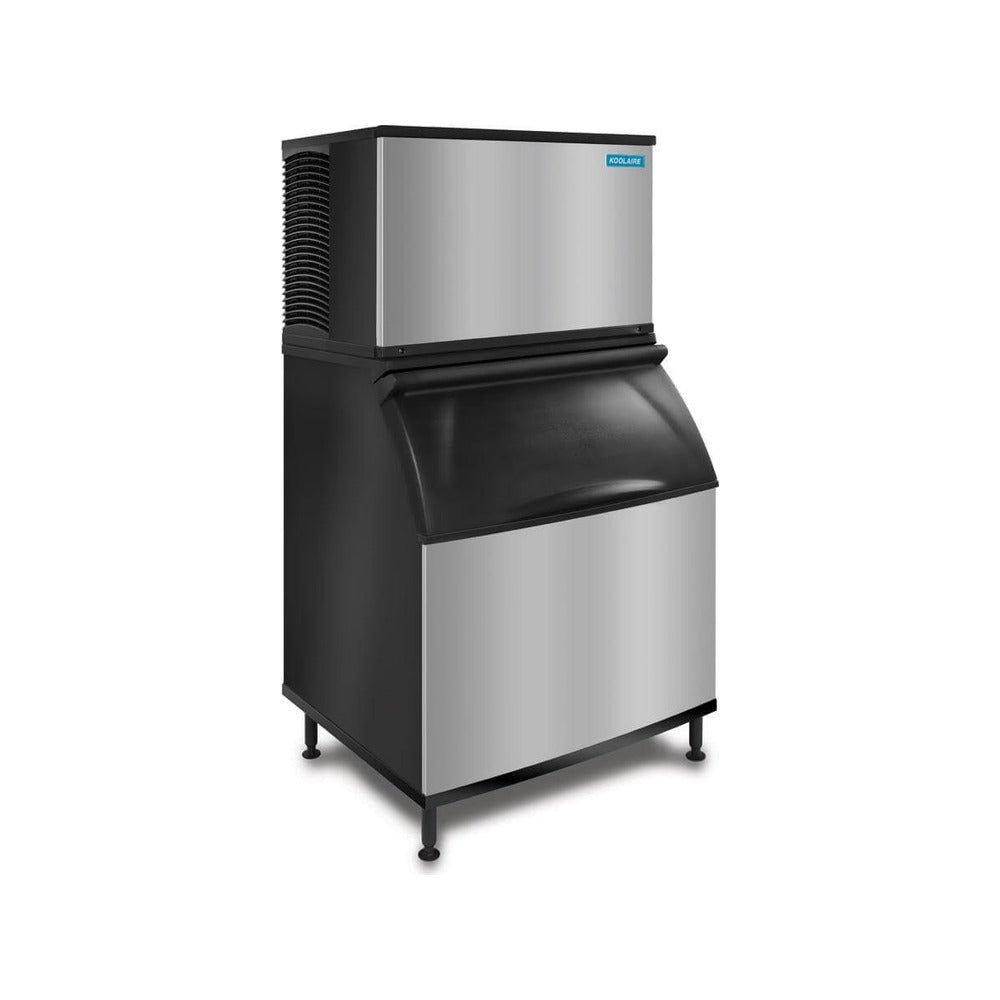

Matching Koolaire bins: per Koolaire's K-Series bin chart, the KP0300 sits directly on the K400 (365 lb, 30" wide) or K570 (532 lb, 30" wide) bin; it also fits the K970 (882 lb, 48" wide) with the K00470 bin adapter. Bins and adapters are sold separately.

Water filter: filtered water keeps scale off the evaporator and makes clearer, better-tasting ice. The matching filter for this model is the 3M CUNO ICE120-S ice machine water filter system, with the HF20-S replacement cartridge for change-outs. Both are sold separately.

Koolaire warranty: Koolaire's limited commercial warranty covers the ice maker for three (3) years parts and labor, the evaporator for five (5) years parts and labor, and the compressor for five (5) years parts and three (3) years labor.

Please note: this is the ice machine head only. The ice bin, bin adapter and water filter are sold separately. The attached Koolaire spec sheet has full dimensions, clearances and utility connections.
