Koolaire KDP1000A, 30" Air Cooled Full Cube Ice Machine, 846 Lb, 208-230V

Model specifics: up to 846 lbs per 24 hours · 30" wide · ENERGY STAR qualified · Kube (dice) ice · air-cooled · 208-230/60/1 · ice machine only, bin sold separately

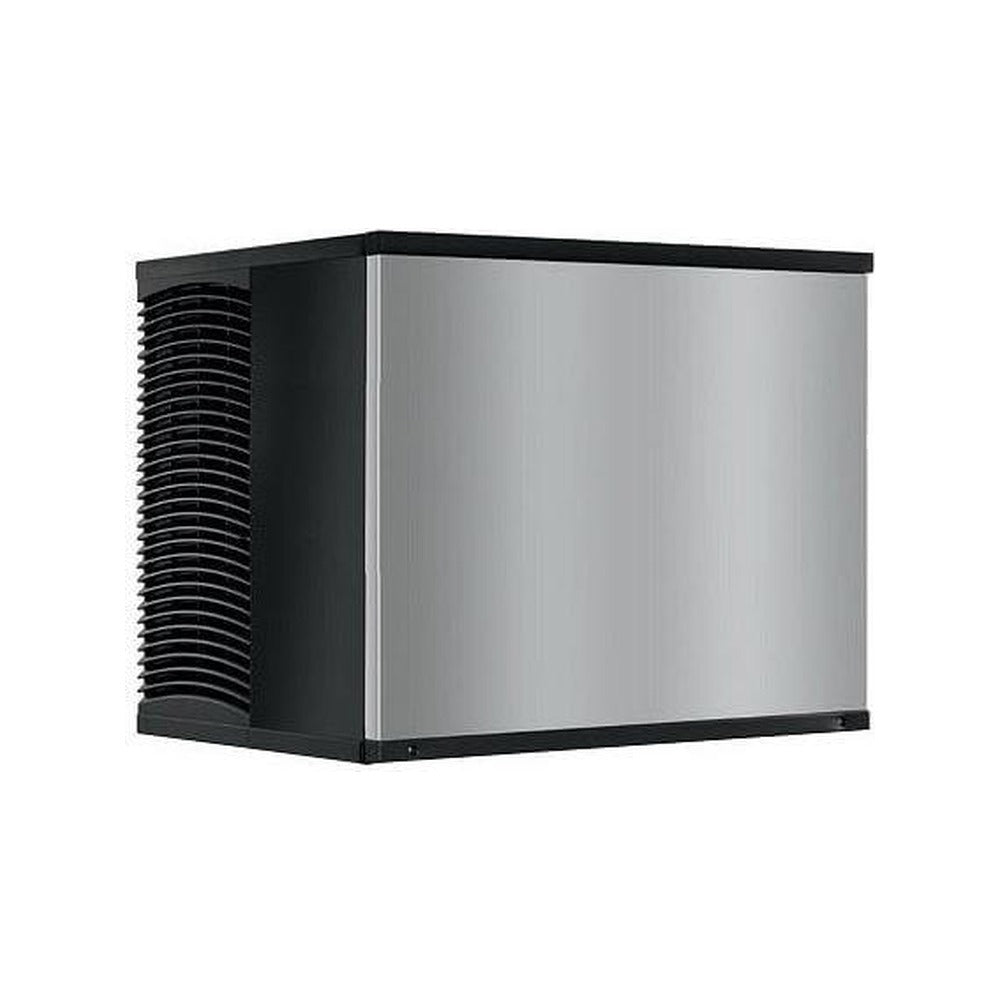

The Koolaire KDP1000A is a 30-inch modular cube ice machine, a Koolaire "Kuber" built by Manitowoc. It makes up to 846 pounds of ice in 24 hours at 70°F air and 50°F water, and about 630 pounds at 90°F air and 70°F water. The KP1000 is the tallest 30-inch Kuber (29.5-inch cabinet) and the most production Koolaire offers in a 30-inch width, aimed at hotels, hospitals, schools and large restaurants. It is ENERGY STAR qualified.

It makes Koolaire's full-size Kube, a 7/8" x 7/8" x 7/8" dice cube. The square cube is slow to melt and fills a glass evenly, a good all-round choice for soft drinks, iced tea, water service and mixed drinks.

This is the air-cooled version, so no condenser water line is needed; it puts about 14,080 BTU/hr of heat into the room on average (16,340 BTU/hr at peak), so plan ventilation accordingly. Koolaire rates it at 4.7 kWh per 100 lbs of ice at 90°F air / 70°F water and about 14 gallons of potable water per 100 lbs of ice. Power is 208-230/60/1 with an 8.6 amp minimum circuit and 15 amp maximum fuse. Note this model needs a 208-230 volt single-phase circuit. Refrigerant is R290.

Features:

• AHRI performance certified
• ENERGY STAR qualified model
• Durable nickel-plated copper evaporator, made in Manitowoc, Wisconsin
• Simple three-position control: ON / OFF / CLEAN
• Smudge- and fingerprint-resistant stainless-like exterior
• R290 natural hydrocarbon refrigerant, a 99.86% GWP reduction compared to R410A
• One-touch cleaning: add chemical and the machine does the rest, no need to empty the bin (use Manitowoc de-scaler and sanitizer)
• Front-facing evaporator for easy access
• Food zone components remove by hand without tools
• Smooth white plastic interior wipes down easily
• Food zone sealed with commercial-grade gaskets
• Alpha San antimicrobial agent molded into key parts

Specifications:

• Model: KDP1000A
• Series: Koolaire KP1000 Kuber
• Ice type: Kube (dice), 7/8" x 7/8" x 7/8"
• Ice production: up to 846 lbs / 24 hr (70°F air / 50°F water); about 630 lbs at 90°F air / 70°F water
• Dimensions (W x D x H): 30" x 24.5" x 29.5" (ice machine only)
• Electrical: 208-230/60/1, 8.6 amp minimum circuit, 15 amp maximum fuse
• Condenser: Air-cooled
• Energy use: 4.7 kWh per 100 lbs at 90°F air / 70°F water
• Potable water use: 14 gal per 100 lbs
• Heat rejection: 14,080 average / 16,340 peak BTU/hr
• Refrigerant: R290
• Exterior: Stainless-like finish
• Shipping weight: 206 lbs
• Warranty: Ice Maker 3 Yr Parts & Labor; Evaporator 5 Yr Parts & Labor; Compressor 5 Yr Parts, 3 Yr Labor

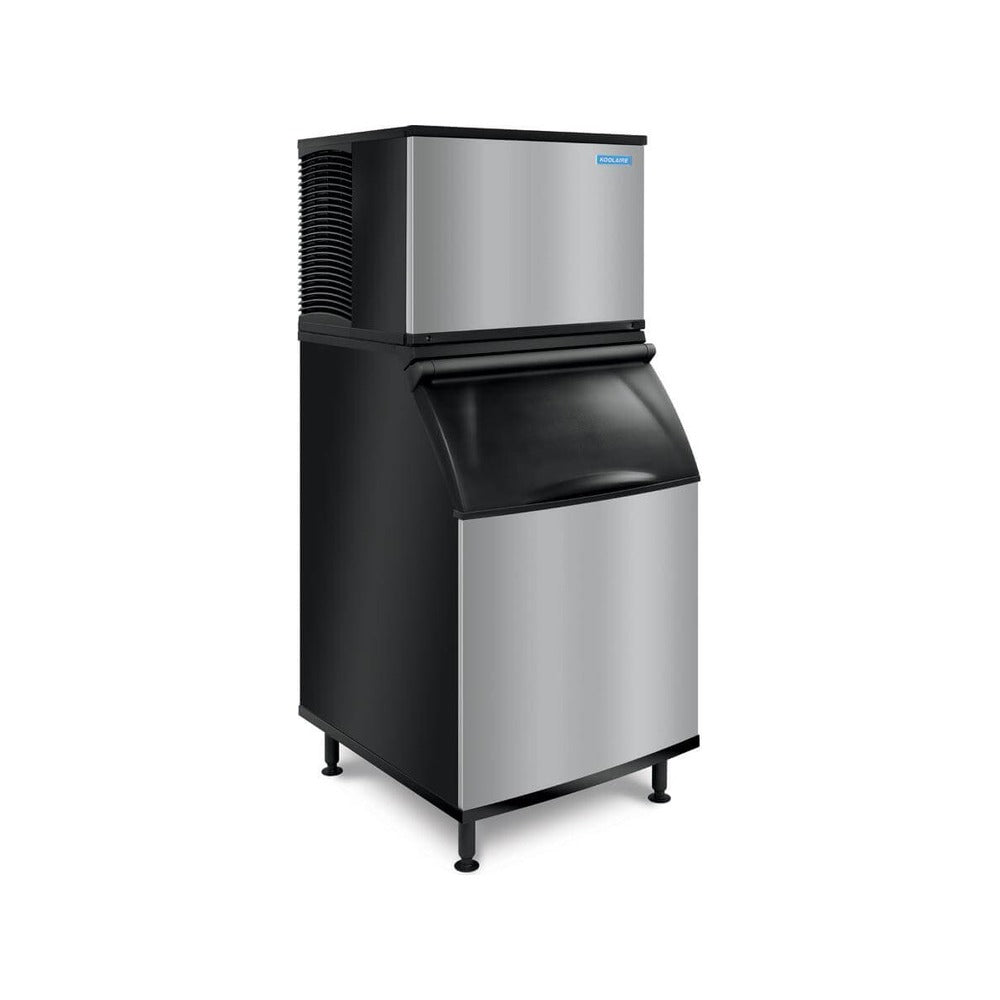

Matching Koolaire bins: per Koolaire's K-Series bin chart, the KP1000 sits directly on the K570 (532 lb, 30" wide) bin; it also fits the K970 (882 lb, 48" wide) with the K00470 bin adapter. Bins and adapters are sold separately.

Manitowoc bins: Koolaire also lists bin adapters for this 30-inch Kuber on Manitowoc F-style bins: K303000 for the Manitowoc F700 and K483048 for the F1300; the K603048 covers a single Kuber on the F1325 or F1650. Koolaire notes that a 30-inch front-facing evaporator Kuber on a Manitowoc F-style bin also needs its K00347 ice deflector.

Water filter: filtered water keeps scale off the evaporator and makes clearer, better-tasting ice. The matching filter for this model is the 3M CUNO ICE160-S ice machine water filter system, with the HF60-S replacement cartridge for change-outs. Both are sold separately.

Koolaire warranty: Koolaire's limited commercial warranty covers the ice maker for three (3) years parts and labor, the evaporator for five (5) years parts and labor, and the compressor for five (5) years parts and three (3) years labor.

Please note: this is the ice machine head only. The ice bin, bin adapter and water filter are sold separately. The attached Koolaire spec sheet has full dimensions, clearances and utility connections.
