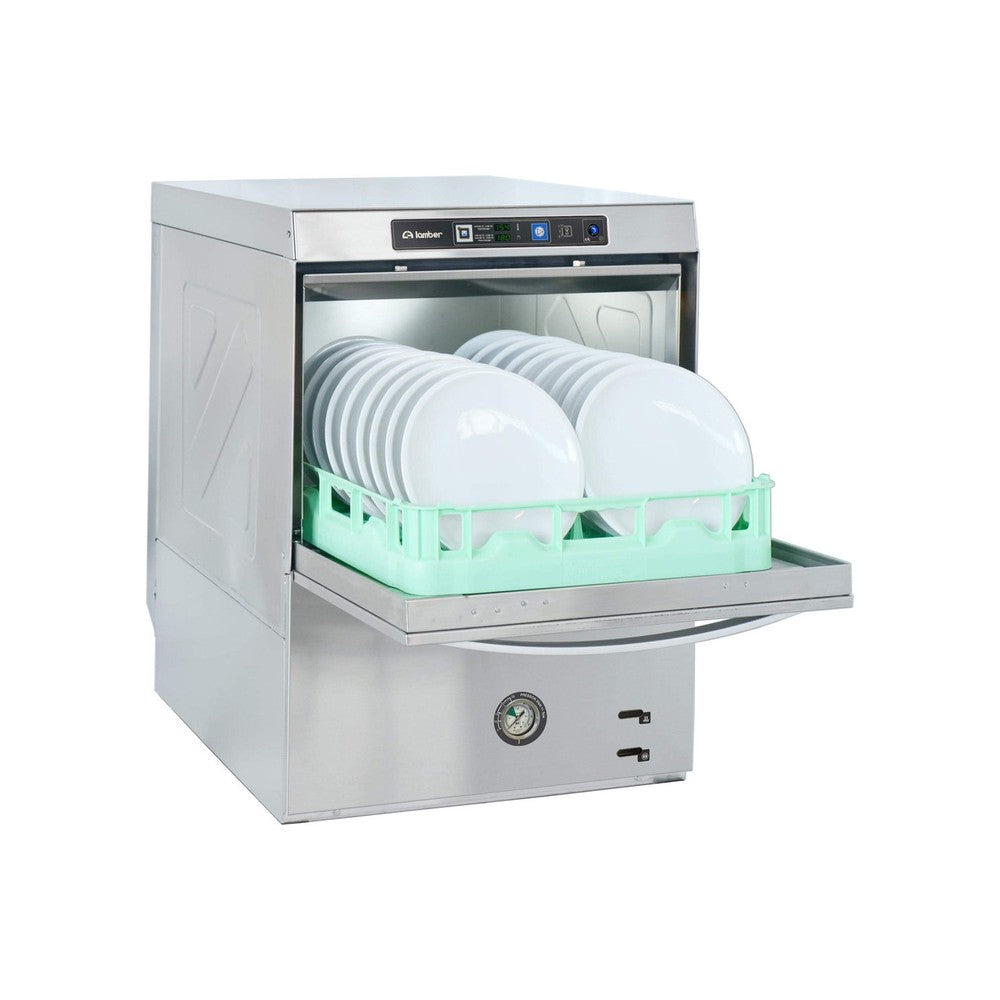

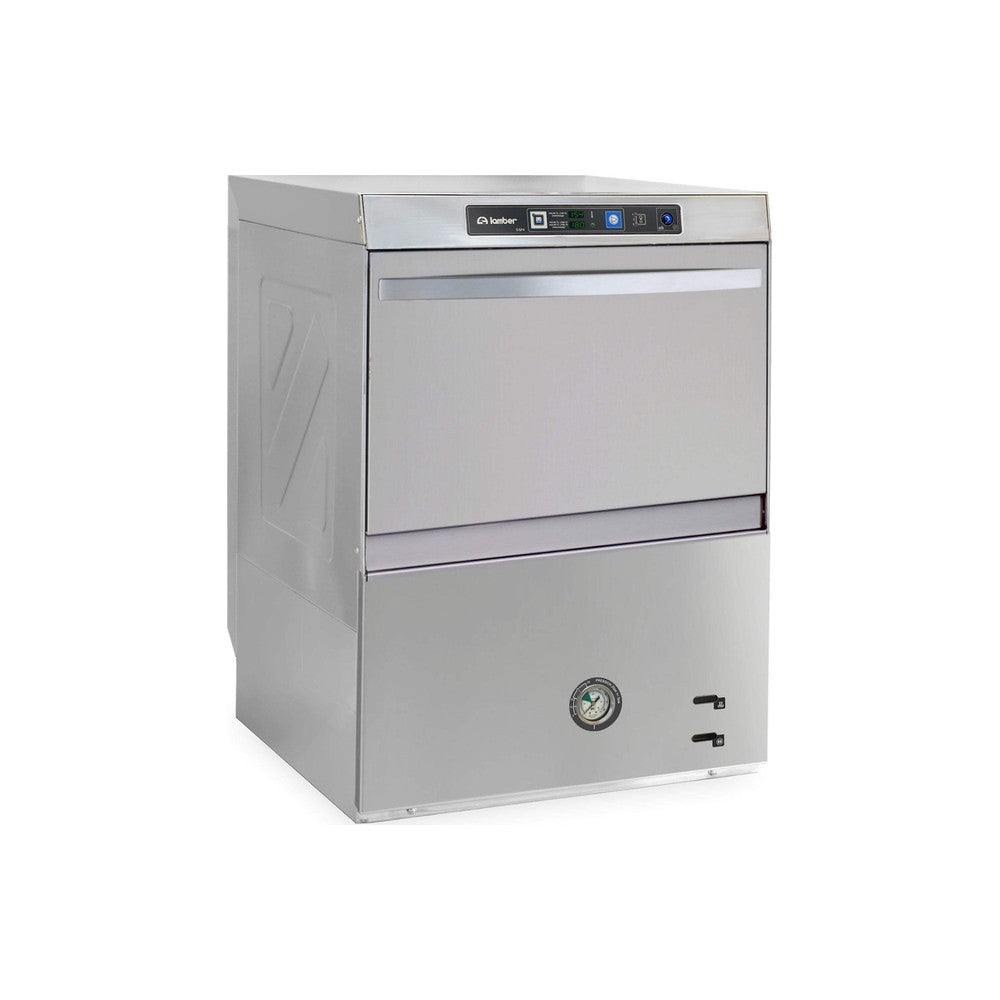

Lamber DSP4EKDPS Energy Star High-Temp Undercounter Dishwasher w/ Drain Pump, 4 Cycles

Lamber DSP4EKDPS Four-Cycle Undercounter Dishwasher

The DSP4EKDPS adds cycle choice to the DSP4 platform: 2, 3, 4 or 15 minutes, for anything from quick glass loads to heavily soiled sheet pans. A rotating rinse arm on top improves coverage, and the machine can handle up to roughly 600 dishes an hour.

Where it fits

A smart pick for restaurants and commissaries whose soil levels change through the day, and for kitchens without a floor drain, since the pump lifts wastewater to a higher outlet.

Key specifications

• Model: DSP4EKDPS
• Sanitizing: High temperature
• Configuration: Undercounter dishwasher with drain pump
• Capacity: 30 / 20 / 15 / 4 racks per hour; up to 600 dishes per hour
• Dimensions (W x D x H): 23.7" x 25.6" x 32.2"
• Weight: 154 lb
• Electrical: 208V, single phase, 17 A, 3,550 W
• 19.6" x 19.6" racks, 12.6" clearance
• 1.32 gal rinse boiler, 4 gal wash tank
• 0.6 gal water per cycle
• Soft start, automatic tank fill, soap and rinse-aid pumps
• Certifications: UL listed; Energy Star
• Warranty: 1 year parts and labor

Installation notes

Hardwire to a 208V single-phase circuit. Supply 131-140°F water to the 3/4" inlet at 40-80 psi; the 180-195°F final rinse is handled internally.

Shipping

Ships free by freight, and liftgate delivery is included at no extra charge.
