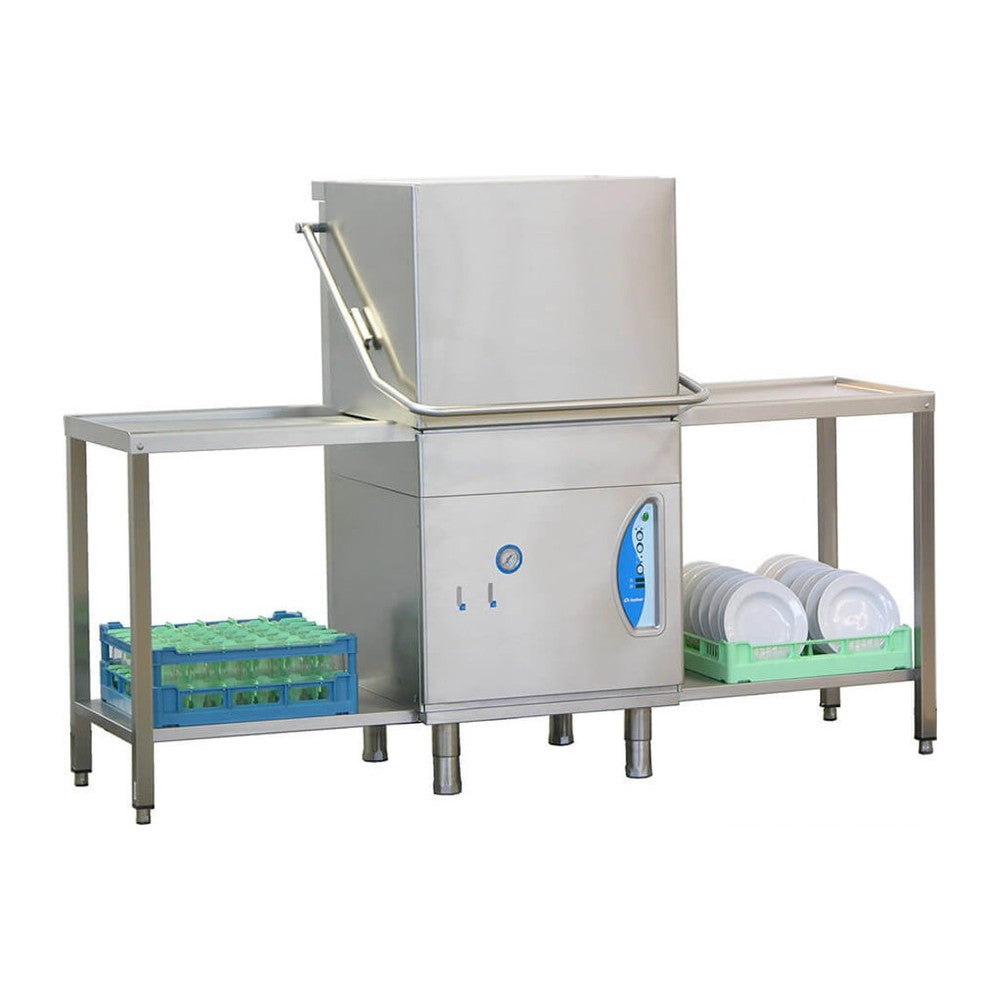

Lamber L25EKDPS 3PH High-Temp Pass-Through Door Type Dishwasher w/ Drain Pump, Three Phase

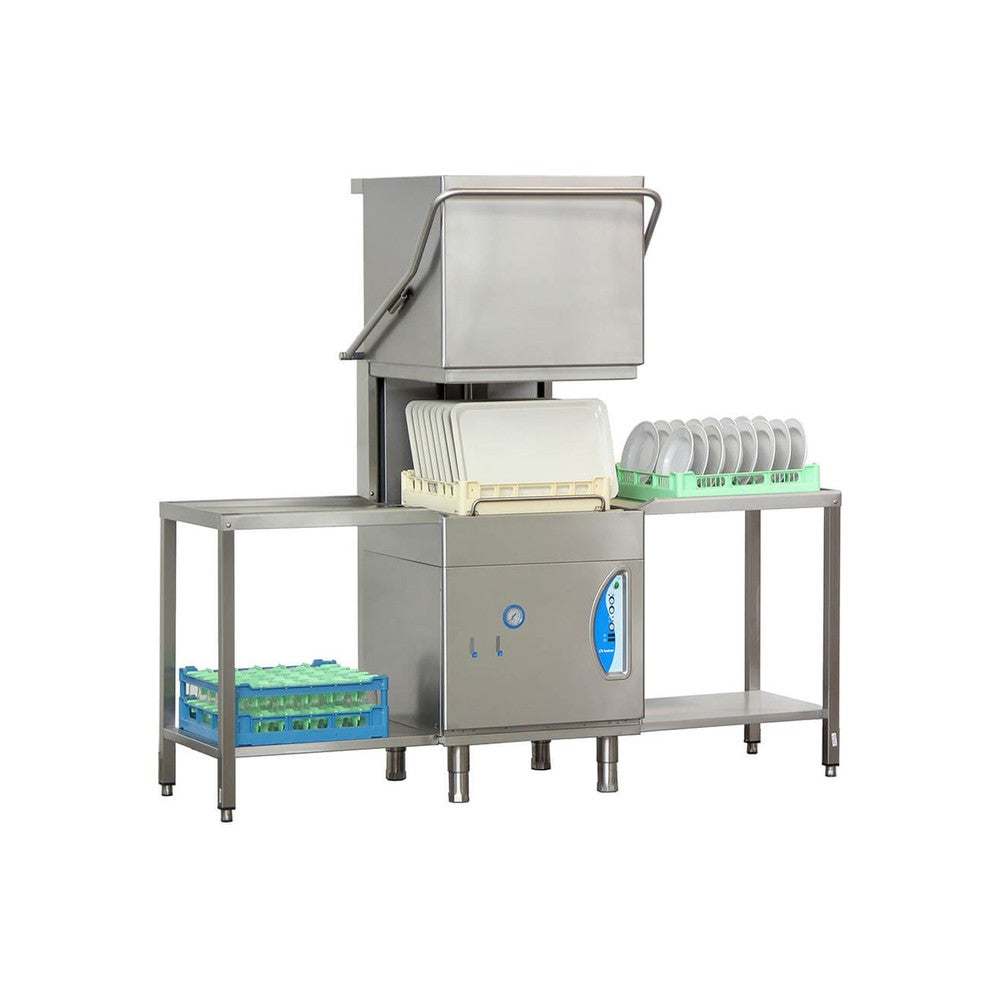

Lamber L25EKDPS Three-Phase Pass-Through Dishwasher with Drain Pump

The three-phase L25EKDPS has a stronger 9,000 W rinse heater, for 10,100 W in total, yet draws only 26 A at 208V. It keeps the L25's generous 16.3-inch clearance, 8.9-gallon tank, integrated drain pump and four cycle options.

Where it fits

The choice for kitchens with three-phase service that run back-to-back racks at peak times and want the extra rinse-heating power of the three-phase model.

Key specifications

• Model: L25EKDPS 3PH
• Sanitizing: High temperature, built-in booster
• Configuration: Single-rack pass-through with drain pump
• Cycles: 2, 3, 4 or 15 minutes
• Dimensions (W x D x H): 26.5" x 29.75" x 57.5"
• Weight: 343 lb
• Electrical: 208V, three phase, 26 A, 10,100 W
• 19.6" racks, 16.3" clearance
• 8.9 gal wash tank, 2.1 gal boiler
• 0.6 gal water per cycle
• Soft start; built-in detergent and rinse-aid pumps
• Certifications: UL listed; Energy Star
• Warranty: 1 year parts and labor

What's included

• 1 flat rack
• 2 dish racks
• 2 cutlery inserts

Installation notes

Dish tables are sold separately. Requires 208V three-phase service rated for 26 A, plus 131-140°F inlet water at 20 ± 5 psi. The drain pump uses a 3/4" outlet.

Shipping

Free freight shipping applies, and we can add liftgate delivery at no charge.
