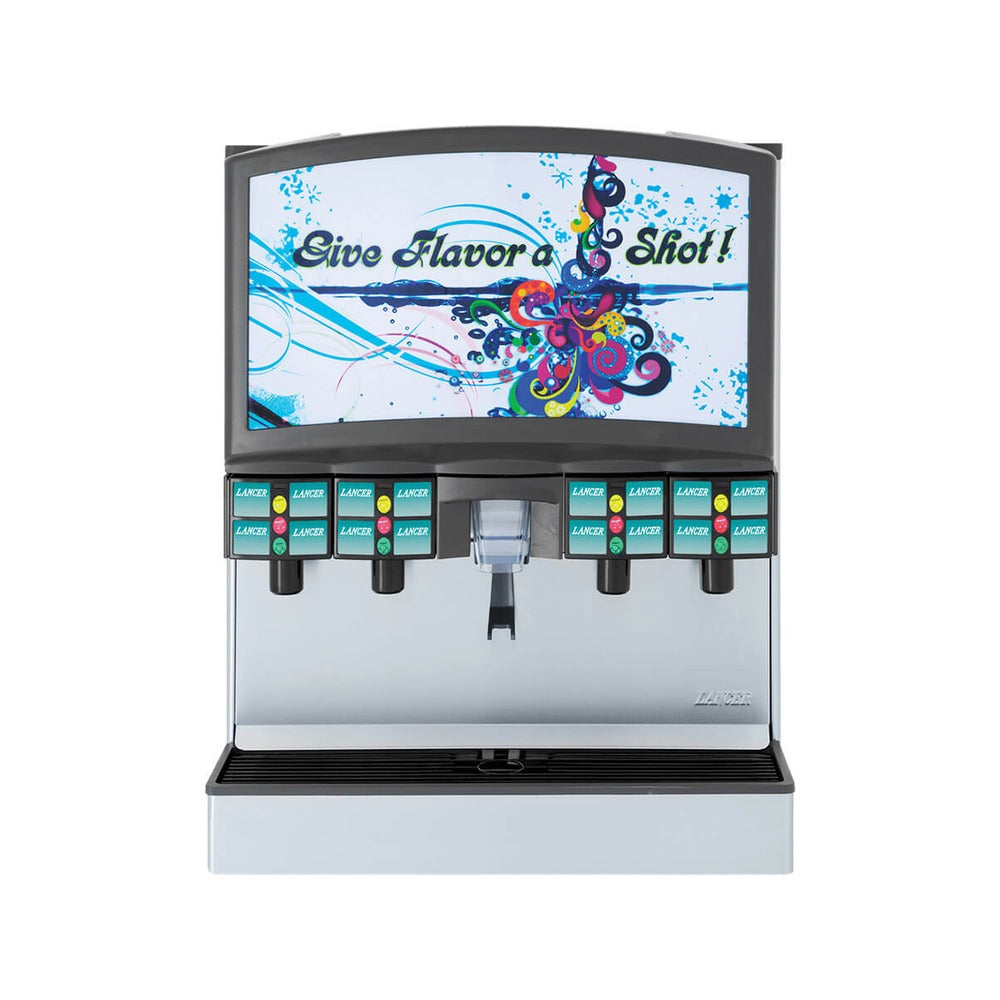

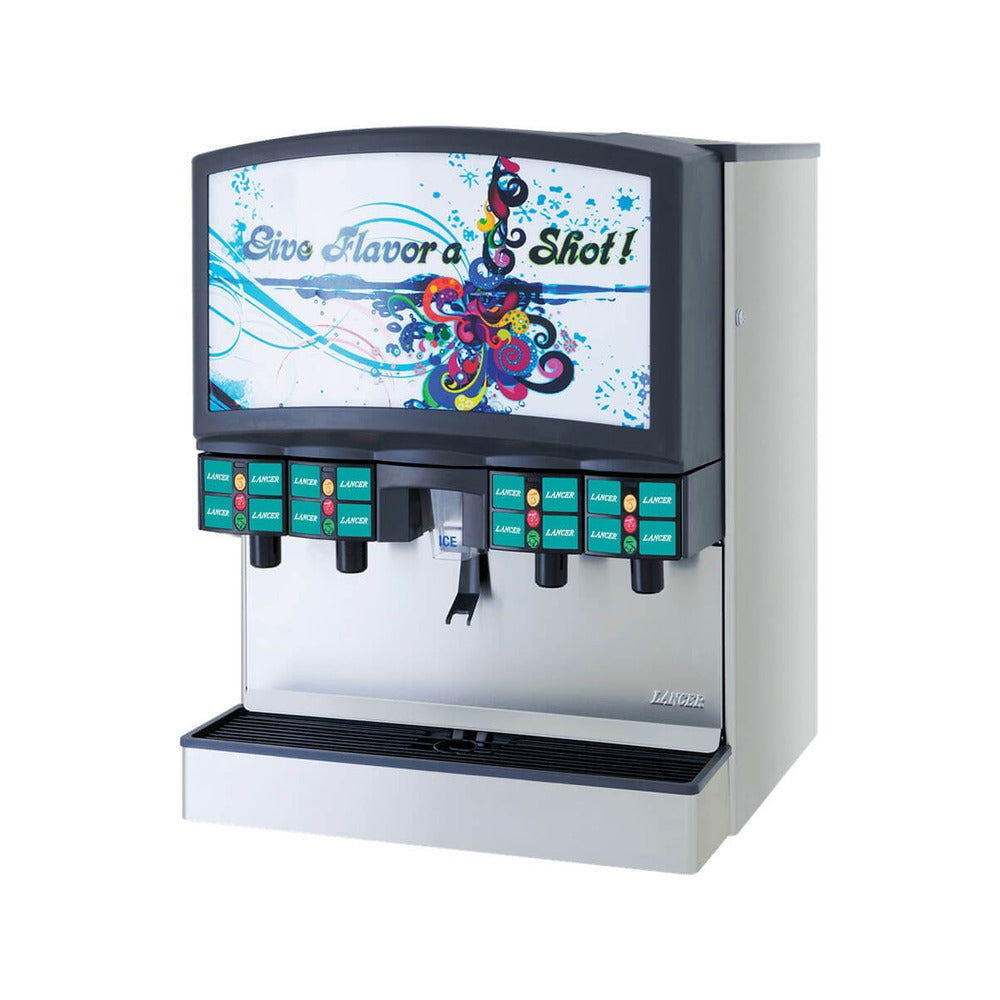

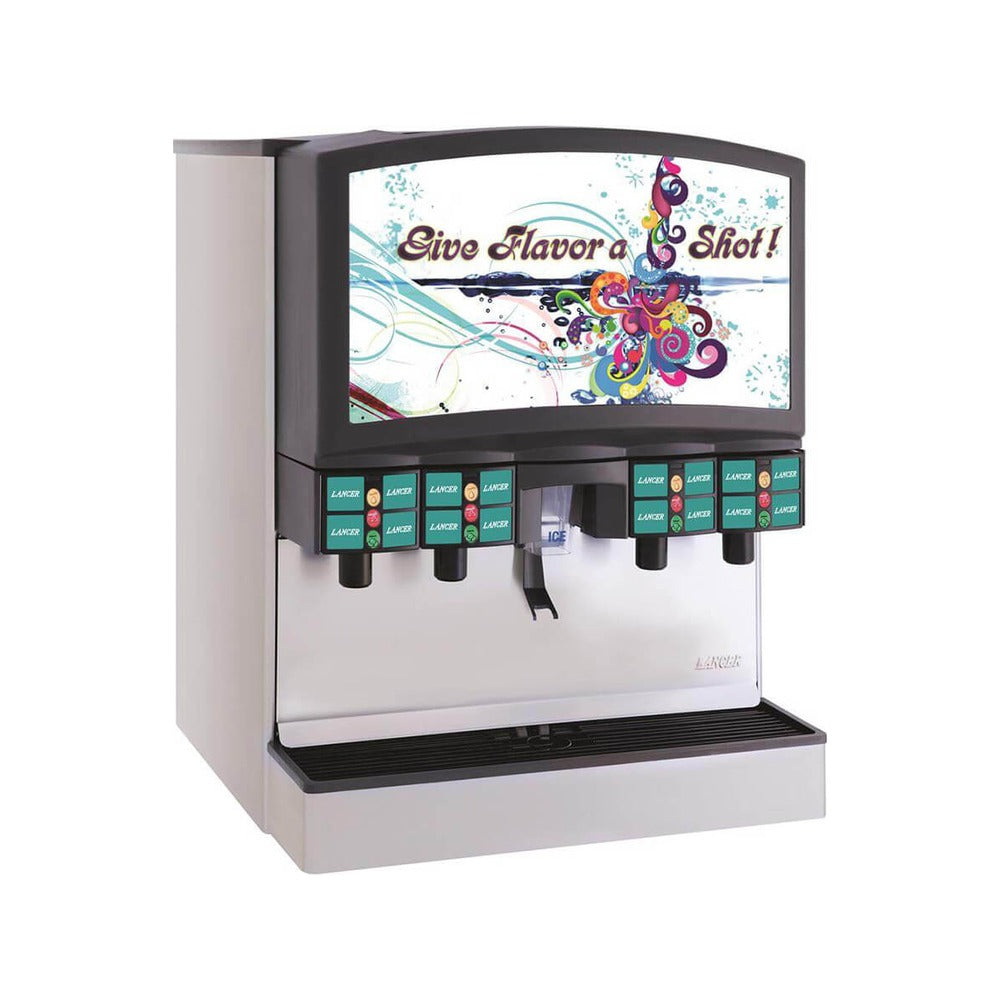

Lancer 85-14816-12, 30" 4 Valve Flavor Select Ice & Soda Beverage Dispenser, 290 Lb Storage

The Lancer 85-14816-12 is a 30" Flavor Select ice and beverage dispenser with cold carbonation. Four Lancer Flow Control Valve stations offer up to 16 brands and over 100 flavor combinations, plus up to 12 bonus flavors, with a 290 lb ice bin (215 lb dispensable).

Which version is this:

The 85-14816-12 is the standard Flavor Select 30, set up to dispense cubed ice. The 85-14816N-12 is the cubelet-ice version and the 85-14816-12-A adds ADA controls.

Features:

• Up to 16 brands and over 100 flavor combinations, plus up to 12 bonus flavors
• Cold carbonation for consistent drink quality
• "Lite Touch" brand light show draws attention to the fountain
• "Air Mix" nozzles blend syrup and water in mid-air
• Illuminated, interchangeable merchandiser
• Removable drip tray and cup rest
• Three bin fill options: ice maker, manual loading or both
• Dosing or blending for bonus flavors
• Lancer Flow Control Valves (LFCV)
• Front product connections; field configurable
• 3/8" male barb syrup and soda inlets
• Key lock switch

Ice supply:

Fill the bin manually or top it with an ice machine. Ice maker adapters may be required. The ice machine, syrup line sets and CO2 supply are sold separately.

Lancer warranty:

Covered by Lancer Worldwide's limited commercial warranty: one (1) year on the equipment from the date of original shipment, and 90 days on replacement parts. Routine-maintenance items such as light bulbs, seals, O-rings and water filter cartridges are excluded, and Lancer does not warrant equipment bought for personal, family or household use. Warranty service is arranged directly with Lancer.

Specifications:

• Model: 85-14816-12
• Dimensions (W x D x H): 30" x 30.5" x 40.25"
• Ice storage: 290 lb (215 lb dispensable)
• Ice type: Cubed
• Valves: 4 LFCV
• Carbonation: Cold carbonation
• Electrical: 120V/60Hz, single phase
• Fittings: 3/8" male barb syrup and soda inlets
• Weight: 610 lb with ice; 356 lb shipping
• Exterior: Stainless steel
• Warranty: 1 year equipment, 90 days replacement parts
