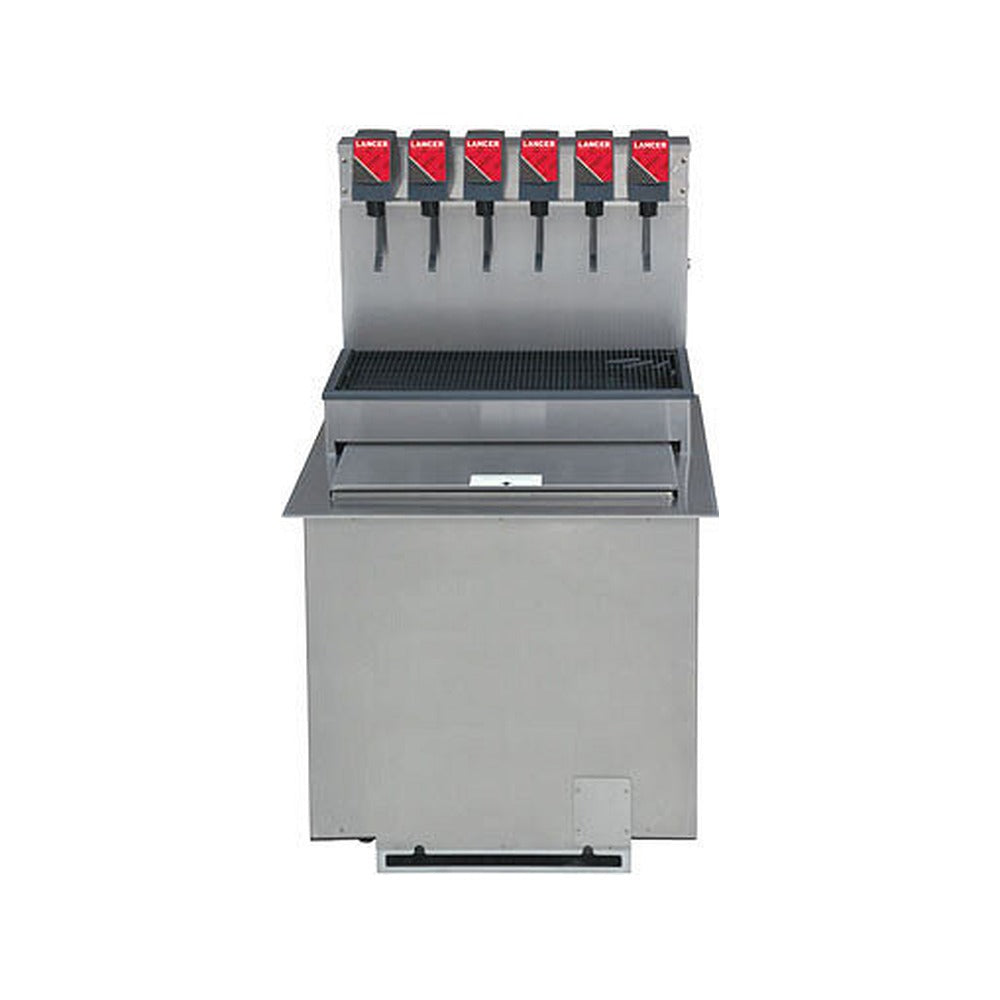

Lancer 85-2346T-111, 23" 6 Valve High Performance Ice Cooled Drop-In Soda Dispenser w/ Cold Plate, 100 Lb Storage

The Lancer 85-2346T-111 is a 23" high performance ice-cooled drop-in soda dispenser (ICDI 2323 high performance). Lancer designed the HP line with advanced engineering simulations for very cold drinks, and it exceeds industry draw-capacity standards with flow rates up to 4.5 oz per second from 6 LEV self-serve valves. Its 100 lb ice bin chills a sealed-in cold plate.

Which version is this:

The "T" models are Lancer's high performance drop-ins: their syrup and water lines are hard plumbed and foamed into the manifold, so drinks come out colder than from the standard ICDI 2300. The 85-2346T-111 is the 23" six-valve version; the 85-2378T-111 adds two valves on the same 23" footprint and the 85-2348T-111 is the wider 30" eight-valve version with a 130 lb bin.

Features:

• 6 LEV self-serve valves, 2-1-1-2 manifold
• Flow rates up to 4.5 oz per second
• Stainless steel construction with a sealed-in cold plate
• Stainless steel hard-plumbed tower
• Front plumbing inlets and an easy-to-use switch-over fitting
• 100% carbonated and plain water flexibility
• 100 lb ice bin insulated with CFC-free structural foam
• 3/8" male barb syrup and soda inlets
• Key lock switch

Ice supply:

Fill the bin by hand or from a nearby ice machine; the ice cools the cold plate and is also available for drinks. The ice machine, syrup line sets and CO2 supply are sold separately.

Lancer warranty:

Covered by Lancer Worldwide's limited commercial warranty: one (1) year on the equipment from the date of original shipment, and 90 days on replacement parts. Routine-maintenance items such as light bulbs, seals, O-rings and water filter cartridges are excluded, and Lancer does not warrant equipment bought for personal, family or household use. Warranty service is arranged directly with Lancer.

Specifications:

• Model: 85-2346T-111
• Dimensions (W x D x H): 23" x 23" x 36.25"
• Counter cut-out: 23.25" W x 23.25" D
• Ice storage: 100 lb
• Cooling: Ice-cooled sealed-in cold plate
• Valves: 6 LEV
• Manifold: 2-1-1-2
• Electrical: 115V/60Hz
• Fittings: 3/8" male barb syrup and soda inlets
• Shipping weight: 266 lb
• Exterior: Stainless steel
• Warranty: 1 year equipment, 90 days replacement parts
