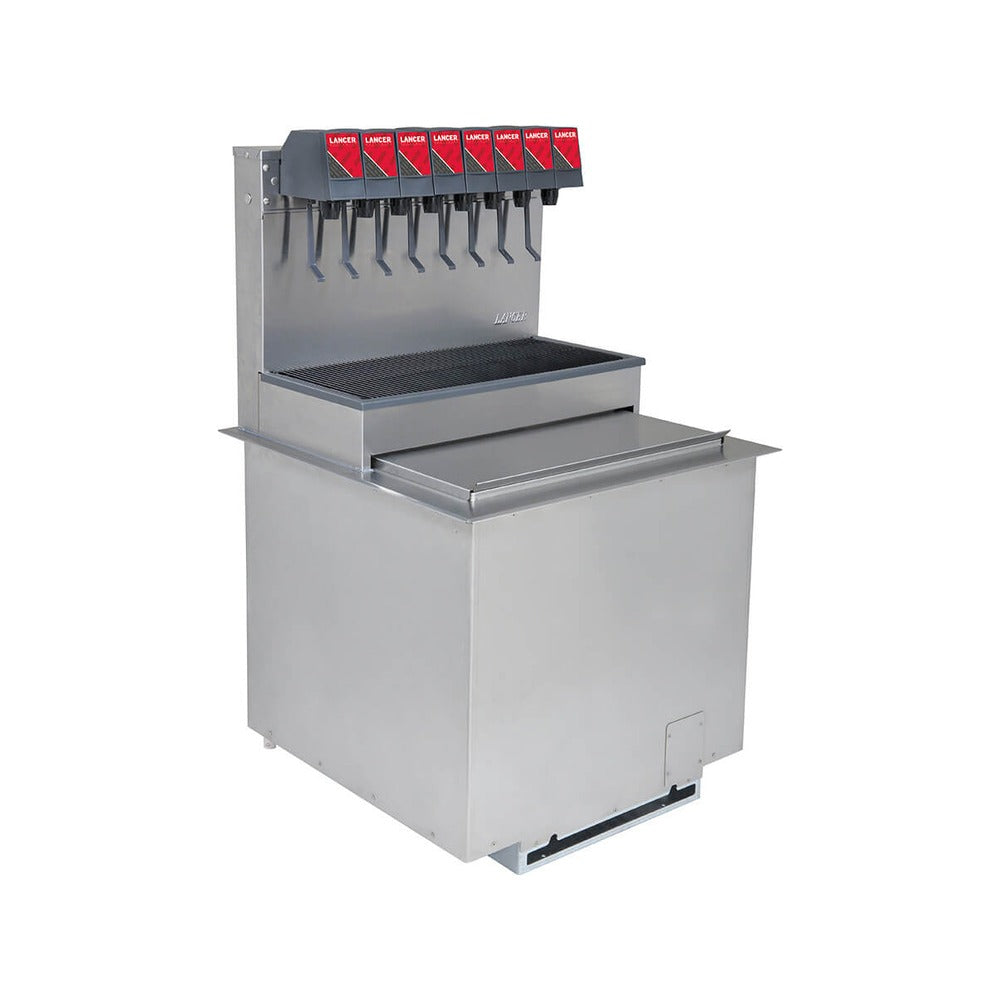

Lancer 85-2378-111-GB, 23" 8 Valve Ice Cooled Drop-In Soda Dispenser w/ Cold Plate, 100 Lb Storage, General Beverage Graphics

The Lancer 85-2378-111-GB is a 23" ice-cooled drop-in soda dispenser from the ICDI 2300 standard performance line. It mounts into a counter cut-out and uses ice in its 100 lb bin to chill a sealed-in cold plate, so carbonated drinks pour cold from 8 LEV self-serve valves without a separate refrigeration system. It ships with general beverage graphics.

Which version is this:

Lancer builds this ICDI 2300 standard performance drop-in in 6- and 8-valve versions and with Coca-Cola or general beverage graphics. This one is the 8-valve version with general beverage graphics. Related models: 85-2376-111, 85-2376-111-GB, 85-2378-111.

Features:

• 8 LEV self-serve valves, 3-1-1-3 manifold
• Stainless steel construction with a sealed-in cold plate
• Ice bin insulated with CFC-free structural foam
• 3/8" male barb syrup and soda inlets
• 3/4" drain with strainer to prevent ice blockage
• Key lock switch
• Optional top merchandiser, back marquee with lighted graphics, and splash guards

Ice supply:

Fill the bin by hand or from a nearby ice machine; the ice cools the cold plate and is also available for drinks. The ice machine, syrup line sets and CO2 supply are sold separately.

Lancer warranty:

Covered by Lancer Worldwide's limited commercial warranty: one (1) year on the equipment from the date of original shipment, and 90 days on replacement parts. Routine-maintenance items such as light bulbs, seals, O-rings and water filter cartridges are excluded, and Lancer does not warrant equipment bought for personal, family or household use. Warranty service is arranged directly with Lancer.

Specifications:

• Model: 85-2378-111-GB
• Dimensions (W x D x H): 23" x 23" x 38.2"
• Counter cut-out: 23.25" W x 23.25" D
• Ice storage: 100 lb
• Cooling: Ice-cooled sealed-in cold plate
• Valves: 8 LEV
• Manifold: 3-1-1-3
• Electrical: 115V/60Hz
• Fittings: 3/8" male barb syrup and soda inlets
• Shipping weight: 260 lb
• Exterior: Stainless steel
• Warranty: 1 year equipment, 90 days replacement parts
