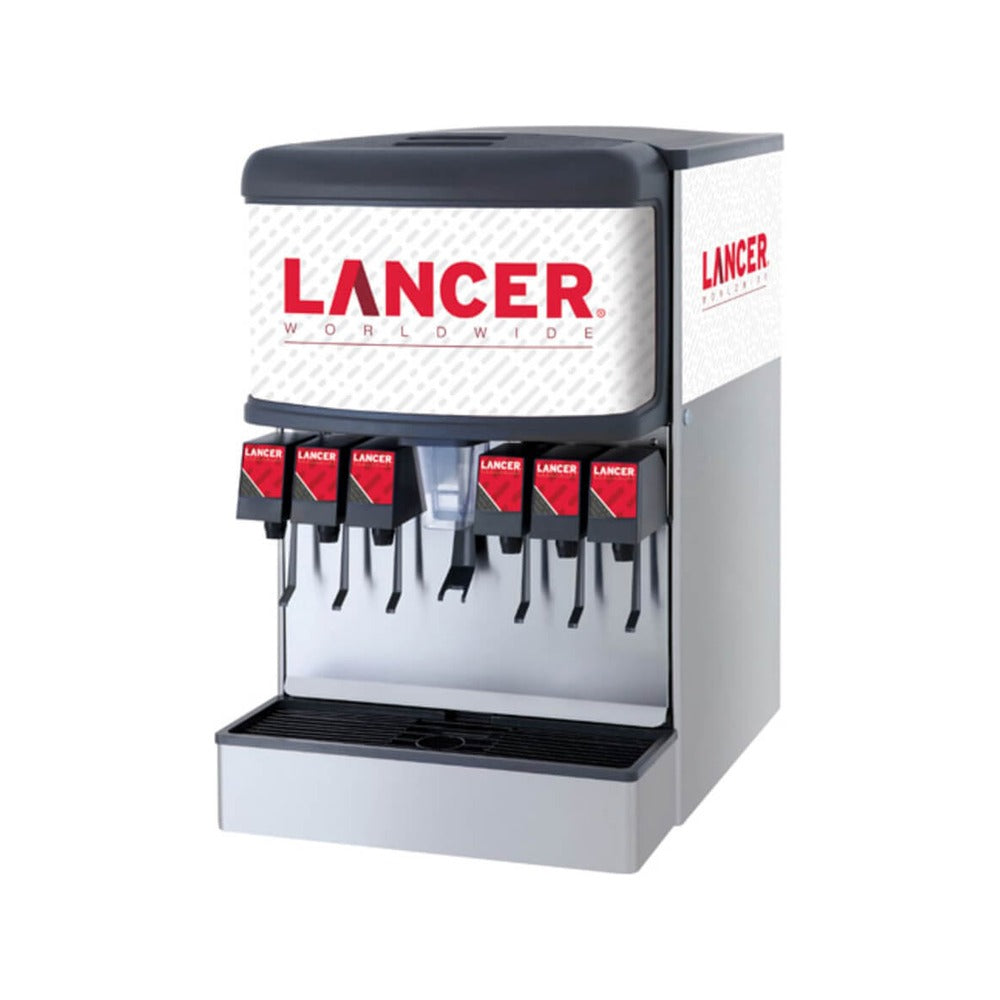

Lancer 85-4526H-111-GB, 22" 6 Valve Cubed Ice & Beverage Dispenser, 180 Lb Storage, General Beverage Graphics

The Lancer 85-4526H-111-GB is a 22" countertop ice and beverage dispenser from Lancer's IBD 4500 series (IBD 22), Lancer's best-selling self-serve dispenser. It stores 180 lb of cubed ice (150 lb dispensable) and pours from 6 LEV self-serve lever valves, with hard-plumbed syrup and water lines for icy cold drinks.

Which version is this:

In Lancer's IBD 4500 part numbers the letter after the size code sets the ice type: this is the H (cubed ice) version. The suffix sets the front: the 85-4526H-111-GB comes with general beverage graphics instead of Coca-Cola graphics. The IBD 22 footprint is 22" wide with 6 valves (3-2-1 manifold).

Features:

• 6 LEV self-serve lever valves, 3-2-1 manifold
• Stainless steel construction, exterior and interior
• Illuminated, interchangeable front graphics
• Visual low-ice indicator lights up when the bin needs ice
• 180 lb ice storage bin for long dispensing runs during busy periods
• High-capacity drip tray handles ice and drink overfill
• Hex-drive ice agitation and dispense system for trouble-free operation
• Fully insulated bin and drip tray control condensation
• Front and rear plumbing access for installation flexibility
• 3/8" male barb syrup and soda inlets
• Key lock switch

Ice supply:

Fill the bin manually or top it with an ice machine. The IBD 4500 accepts 22", 25", 30" and 44" ice makers (adapters may be required). The ice machine, syrup line sets and CO2 supply are sold separately.

Lancer warranty:

Covered by Lancer Worldwide's limited commercial warranty: one (1) year on the equipment from the date of original shipment, and 90 days on replacement parts. Routine-maintenance items such as light bulbs, seals, O-rings and water filter cartridges are excluded, and Lancer does not warrant equipment bought for personal, family or household use. Warranty service is arranged directly with Lancer.

Specifications:

• Model: 85-4526H-111-GB
• Dimensions (W x D x H): 22" x 30.5" x 35.375"
• Space required: 24" W x 31.5" D
• Ice storage: 180 lb (150 lb dispensable)
• Ice type: Cubed ice
• Valves: 6 LEV self-serve lever
• Manifold: 3-2-1
• Electrical: 115V/60Hz
• Fittings: 3/8" male barb syrup and soda inlets
• Weight: 405 lb with ice; 255 lb shipping
• Exterior: Stainless steel
• Warranty: 1 year equipment, 90 days replacement parts
