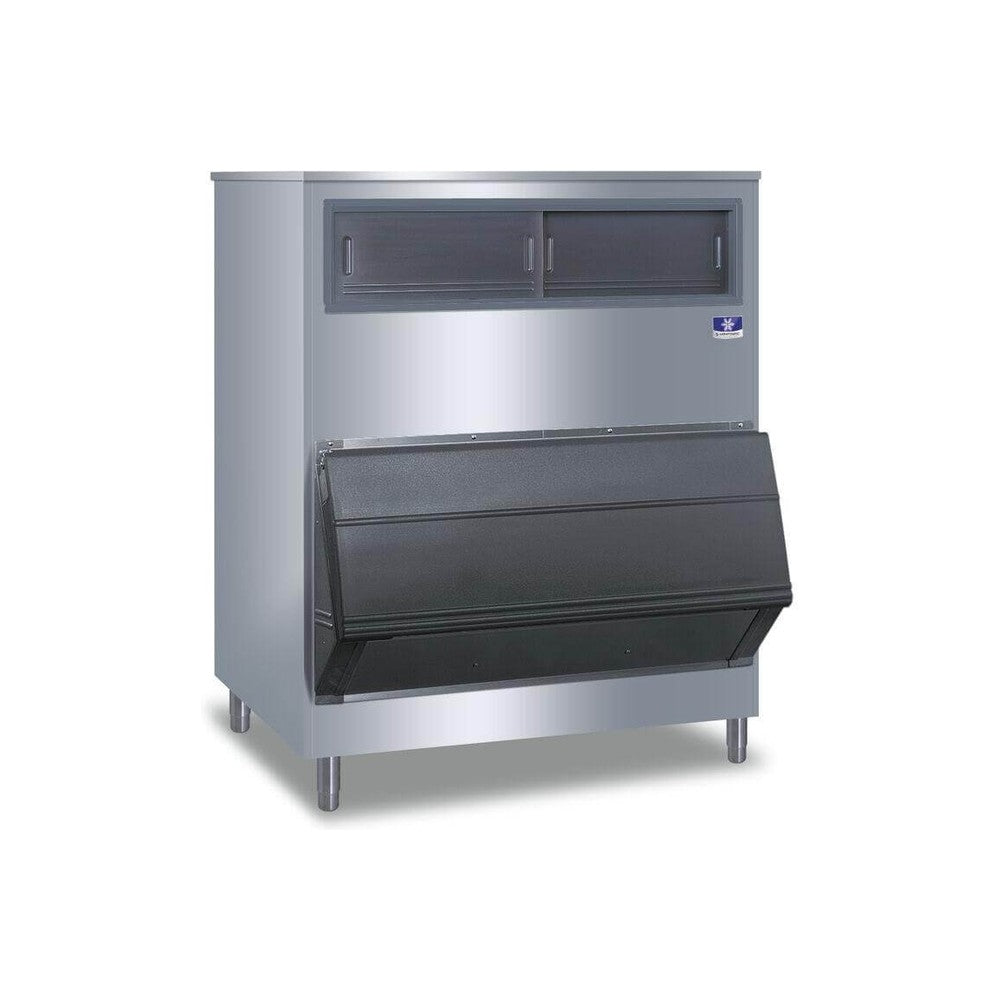

Manitowoc F1300, 48" 994 Lb Ice Storage Bin, Stainless Steel Exterior

Model Specifics: 994 lb ice storage · 48" wide · 65" height · Sliding ice gate · Stainless steel exterior · Replaces the LB1448

48" Large-Capacity Stainless Ice Bin:

The F1300 is a 48-inch F-style bin with a welded stainless steel cabinet, 65 inches tall, that stores up to 994 lbs of ice. A single 30- or 48-inch Indigo NXT cube machine mounts on top with the included adapter, and the sliding ice gate makes it quick to fill totes during busy service. It is the current model that replaces the LB1448.

Compatible ice machines (per Manitowoc's application chart):

• One 30" or 48" Indigo NXT cube machine with the included K483048 adapter (ice deflector required, sold separately)
• 30" RNF1100 and RFF1300 flake/nugget machines with the included K483048 adapter
• Not for 22" flake or nugget machines

Ice deflector required (sold separately): Manitowoc does not include the ice deflector that an Indigo NXT cube machine needs on this bin. Order K00347 for a 30" front-facing-evaporator model (0450 to 1200 series), K00349 for a 48" 1500 or 1900 series machine, or K00382 for a single 30" dual-evaporator machine (1400 to 2130 series). Flake and nugget machines do not use a deflector.

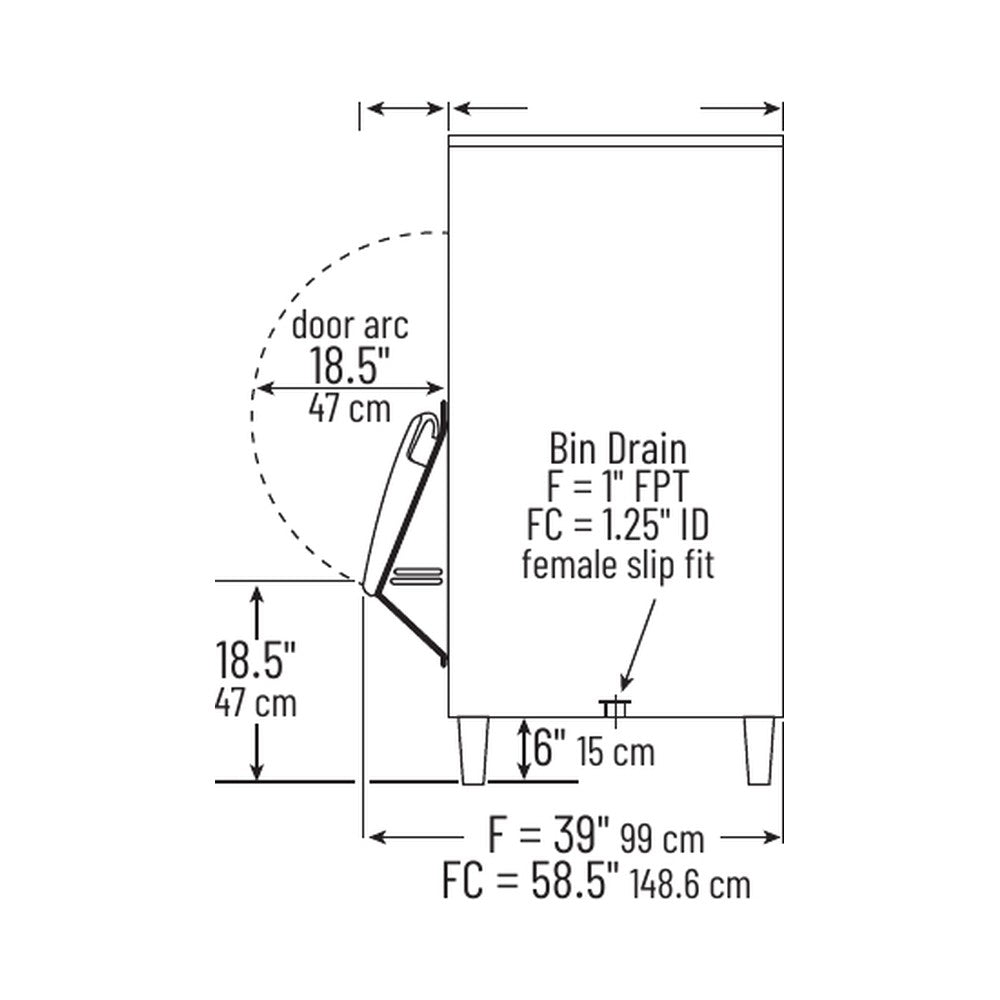

Clearance: After installation, the door snout adds 8" to the depth, and the door needs 18.5" of clearance in front to open. For indoor use only.

Features:

• Heavy-duty welded stainless steel construction
• Sliding ice gate controls the flow of ice into a tote or bucket and returns to closed on its own
• Impact-resistant sliding windows for checking the ice level without opening the bin
• Polyethylene lift door with ball-catch hinge holds open while scooping and has no sharp corners or gaskets
• Foamed-in-place insulation
• 1" FPT bin drain
• Includes four 6" legs, a sanitary ice scoop (about 5.3 lbs per scoop) and the stainless steel machine adapter listed below

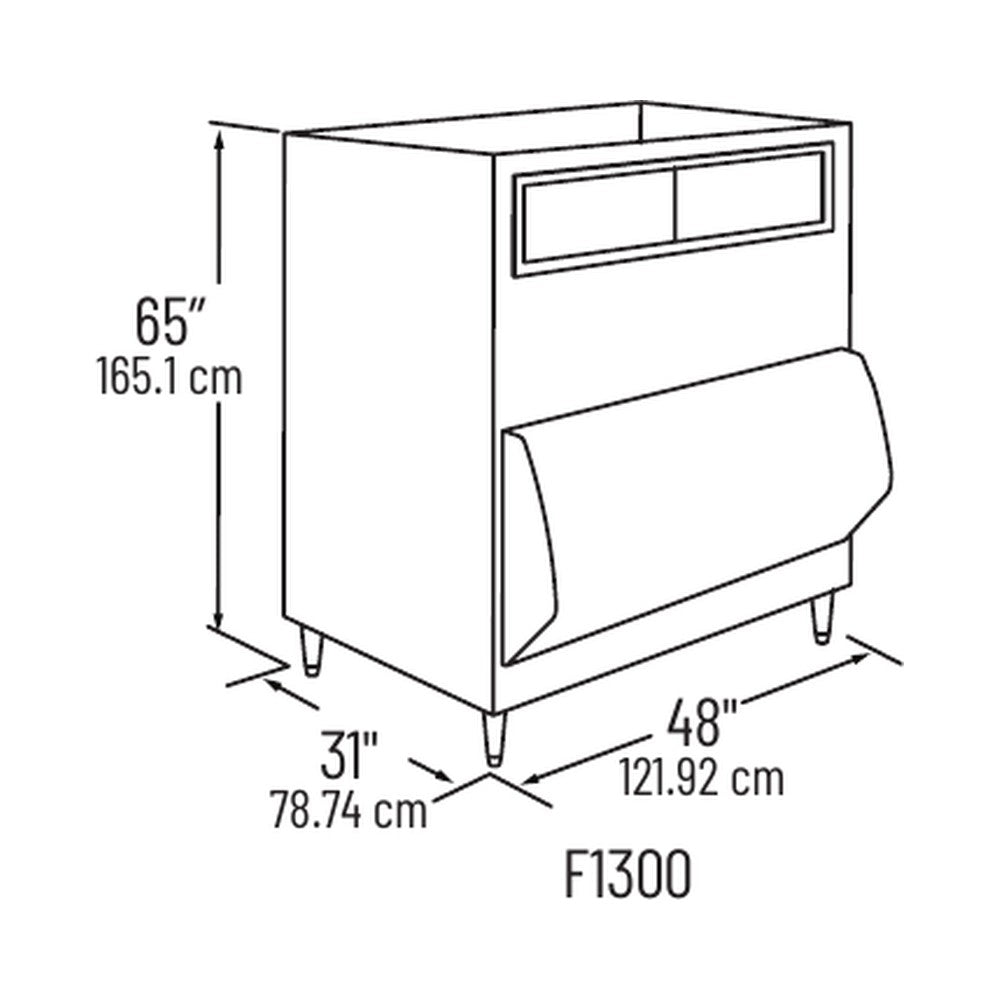

Specifications:

• Model: F1300
• Ice storage: 994 lbs (application capacity)
• AHRI certified volume: 41.9 cu. ft.
• Width: 48"
• Depth: 31"
• Height: 65" (includes 6" legs)
• Weight: 292 lbs
• Exterior: Stainless steel
• Certification: NSF
• Included adapter: K483048

Good to know: Compared with the LB1448 it replaces, the F1300 is 31" deep instead of 34", and its storage is rated at 994 lbs under Manitowoc's current method (the LB1448 was listed at 1,337 lbs).

Manitowoc Limited Commercial Warranty:

• Bin: Five (5) years parts and labor
• Limited lifetime warranty against corrosion of the cabinet exterior, including the top and trim; the interior liner will be free of corrosion for the useful life of the product

Brand / MPN: Manitowoc / F1300
