Manitowoc F1325, 60" 1,000 Lb Ice Storage Bin, Stainless Steel Exterior

Model Specifics: 1,000 lb ice storage · 60" wide · Low 56" height · Sliding ice gate · Stainless steel exterior

60" Low-Height Large-Capacity Ice Bin:

The F1325 puts a 60-inch-wide F-style bin into a lower 56-inch-tall cabinet, storing up to 1,000 lbs of ice. The reduced height keeps a top-mounted cube machine easier to reach and fits rooms where a 65-inch bin plus ice machine would crowd the ceiling, while the wide stainless steel cabinet still holds a large reserve.

Compatible ice machines (per Manitowoc's application chart):

• One 30" or 48" Indigo NXT cube machine with the included K603048 adapter (ice deflector required, sold separately)
• 30" RNF1100 and RFF1300 flake/nugget machines with the included K603048 adapter
• Not for 22" flake or nugget machines

Ice deflector required (sold separately): Manitowoc does not include the ice deflector that an Indigo NXT cube machine needs on this bin. Order K00347 for a 30" front-facing-evaporator model (0450 to 1200 series), K00349 for a 48" 1500 or 1900 series machine, or K00382 for a single 30" dual-evaporator machine (1400 to 2130 series). Flake and nugget machines do not use a deflector.

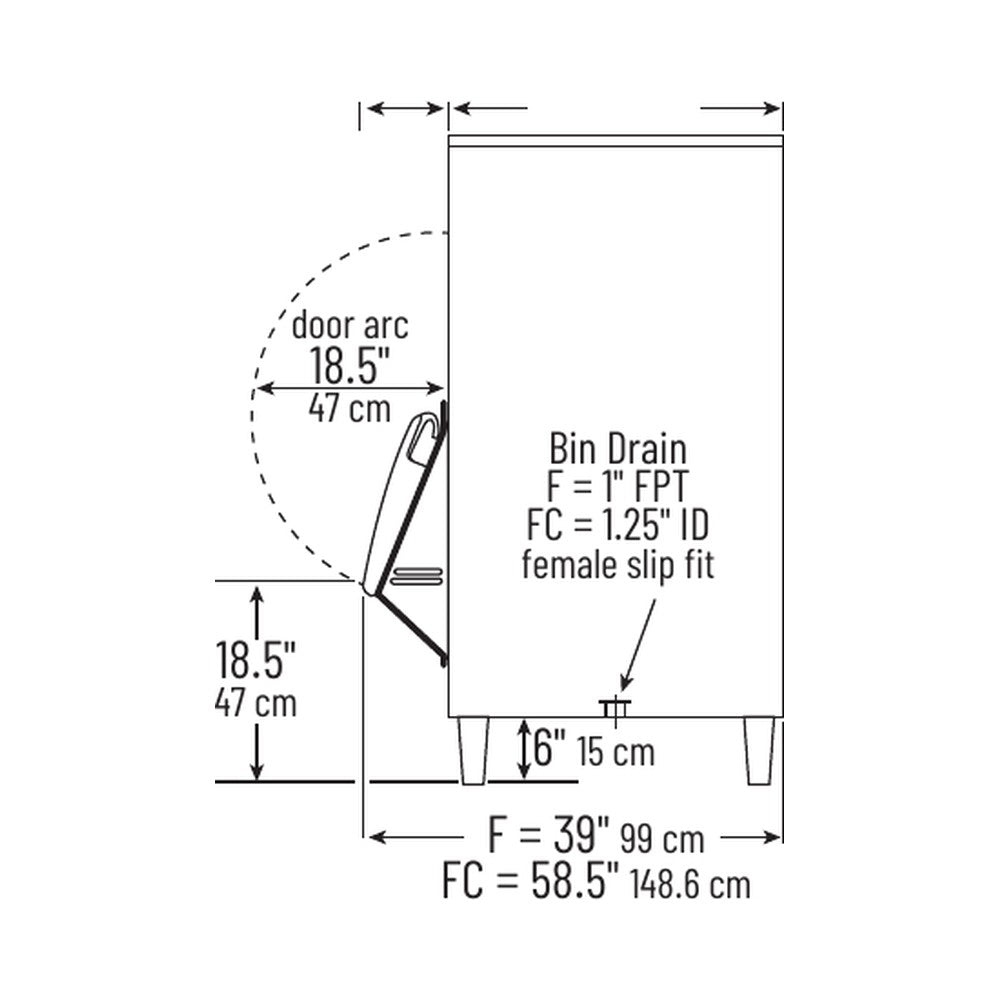

Clearance: After installation, the door snout adds 8" to the depth, and the door needs 18.5" of clearance in front to open. For indoor use only.

Features:

• Heavy-duty welded stainless steel construction
• Sliding ice gate controls the flow of ice into a tote or bucket and returns to closed on its own
• Impact-resistant sliding windows for checking the ice level without opening the bin
• Polyethylene lift door with ball-catch hinge holds open while scooping and has no sharp corners or gaskets
• Foamed-in-place insulation
• 1" FPT bin drain
• Includes four 6" legs, a sanitary ice scoop (about 5.3 lbs per scoop) and the stainless steel machine adapter listed below

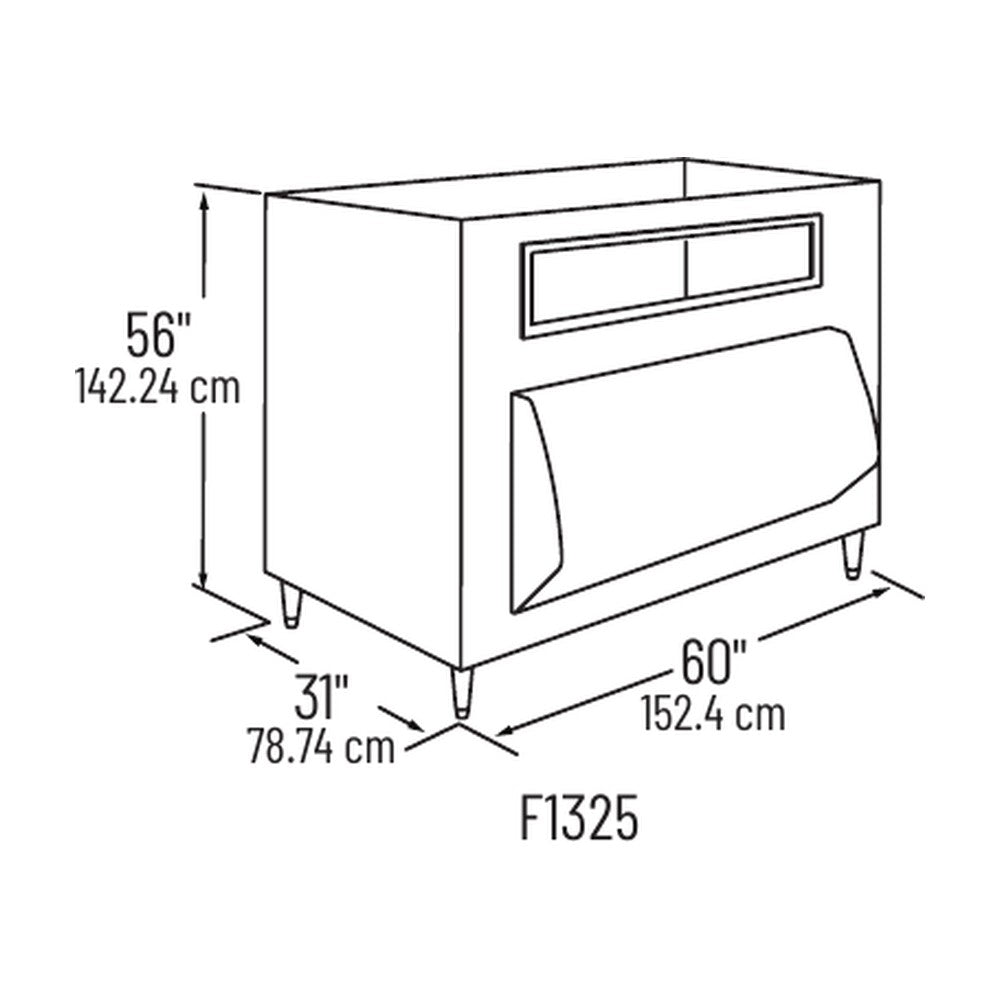

Specifications:

• Model: F1325
• Ice storage: 1,000 lbs (application capacity)
• AHRI certified volume: 42 cu. ft.
• Width: 60"
• Depth: 31"
• Height: 56" (includes 6" legs)
• Weight: 300 lbs
• Exterior: Stainless steel
• Certification: NSF
• Included adapter: K603048

Good to know: Need more ice in a 60" footprint and have the height? The 65" tall F1650 stores 1,260 lbs.

Manitowoc Limited Commercial Warranty:

• Bin: Five (5) years parts and labor
• Limited lifetime warranty against corrosion of the cabinet exterior, including the top and trim; the interior liner will be free of corrosion for the useful life of the product

Brand / MPN: Manitowoc / F1325
